POWER TRIM
90-883728 JULY 2001 Page 5B-33

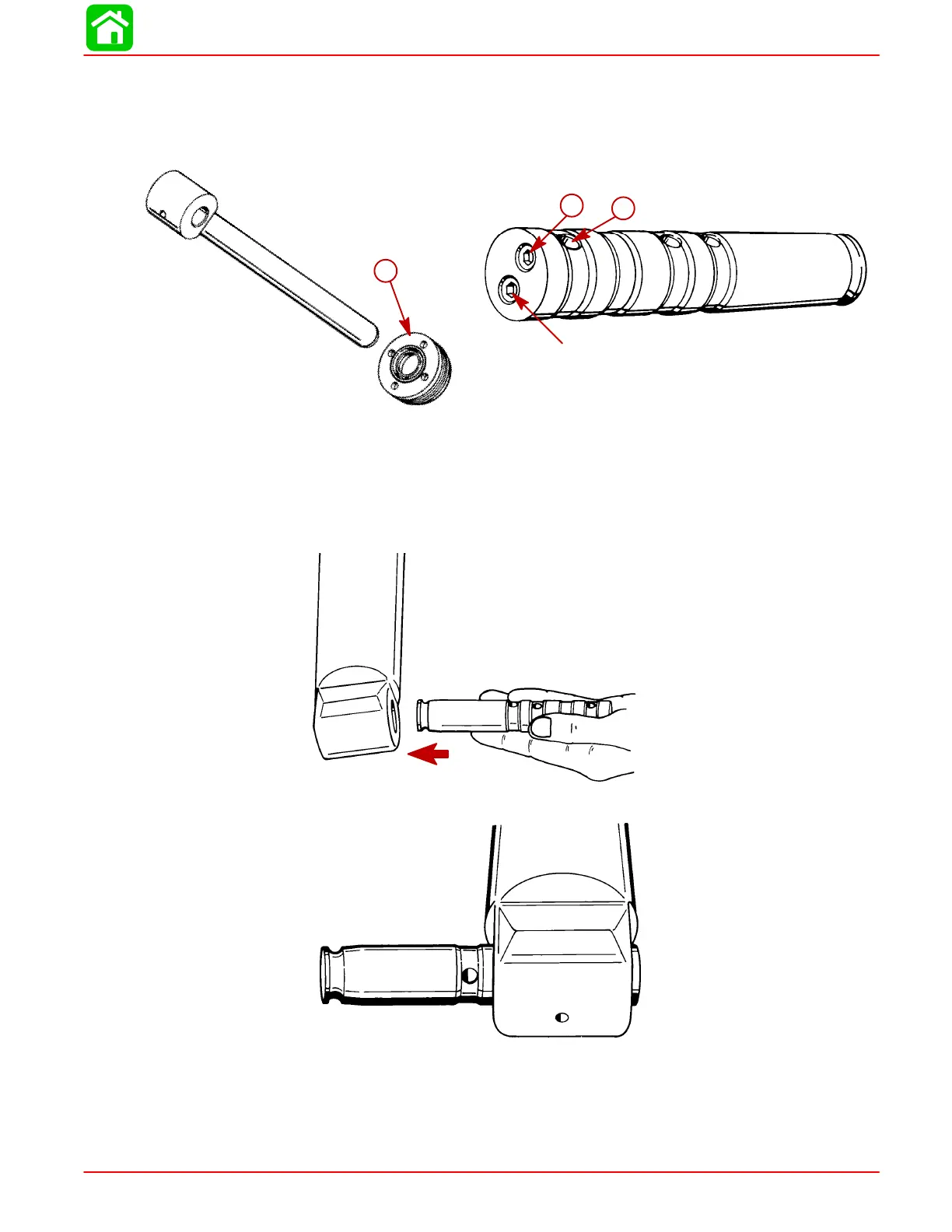

4. Remove end cap from tilt rod.
5. Remove allen plug.
IMPORTANT: Remove plug from same side as holes in shaft.
51361
DO NOT REMOVE
51376
a
a
b
c
a-End Cap
b-Allen Plug
c-Hole In Shaft
6. Lubricate shaft with Quicksilver Power Trim and Steering Fluid. Insert shaft into
cylinder.
51342
7. Tap shaft into cylinder until shaft is positioned as shown.
51365
