RIGHT HAND NON-RATCHETING
90-883728 JULY 2001 Page 6A-27

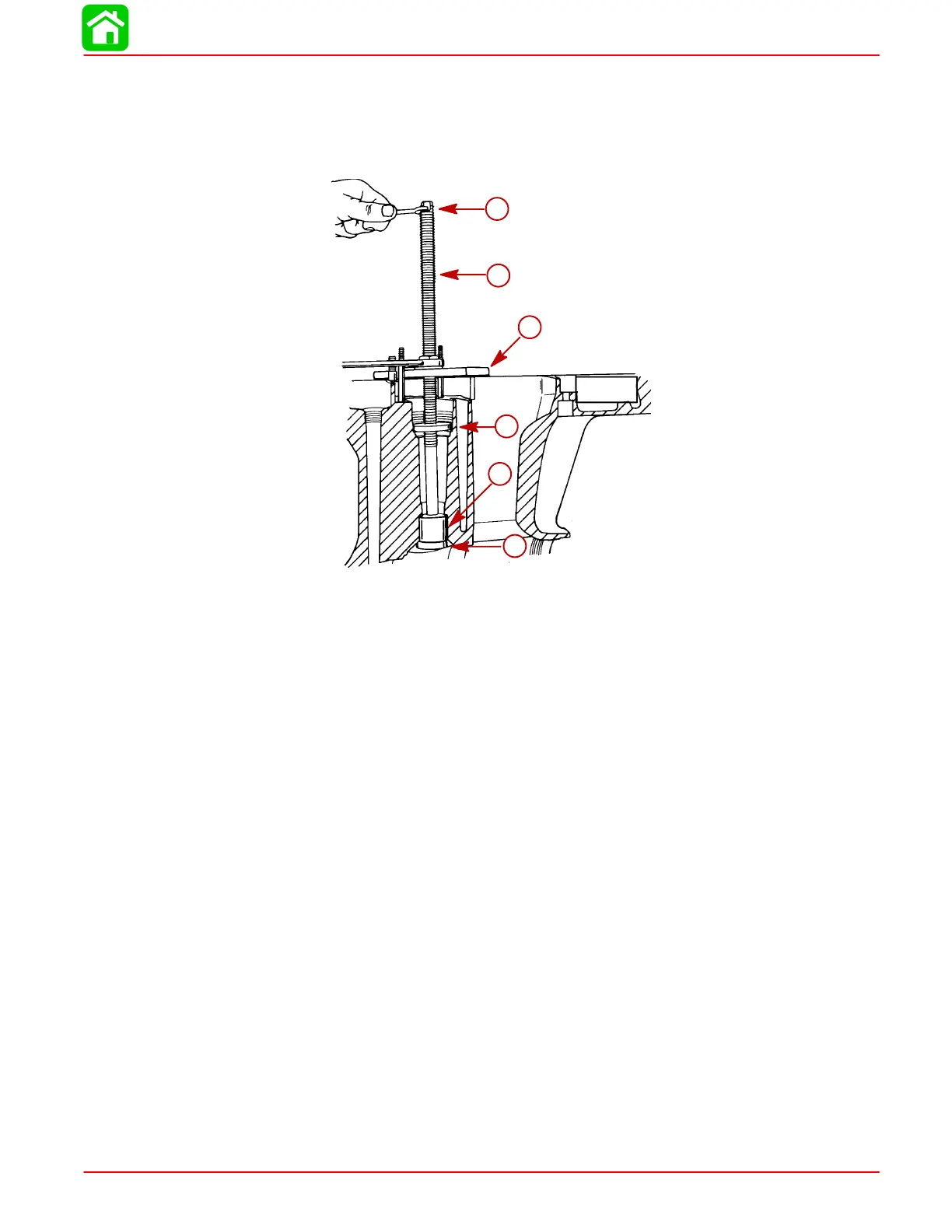

3. Install and seat needle bearing with the following tools: Puller Rod* (91-31229), Nut*
(11-24156), Pilot* (91-36571T), Plate* (91-29310) and Mandrel* (91-92788). Pull
bearing up into bore until it bottoms on gear housing shoulder. (DO NOT use exces-
sive force.)
*From Bearing Removal and Installation Kit (91-31229A7)
f
e
d
c
b
a
51869
a
b
c
d
e
f
a-Mandrel
b-Bearing
c-Pilot
d-Plate
e-Puller Rod
f-Hold
Bearing Carrier
REASSEMBLY
1. Place reverse gear on a press with gear teeth facing down.
IMPORTANT: The reverse gear thrust washer has a tapered outside diameter so
that one side is larger than the other. The larger outside diameter of washer must
be toward reverse gear.
2. Place thrust washer over gear with the larger outside diameter down toward gear.
3. Apply a light coat of Quicksilver Super Duty Gear Lubricant onto inside diameter of
reverse gear ball bearing.
4. Position ball bearing over gear (with numbered side of bearing up).
