LEFT HAND NON-RATCHETING
90-883728 JULY 2001 Page 6B-13

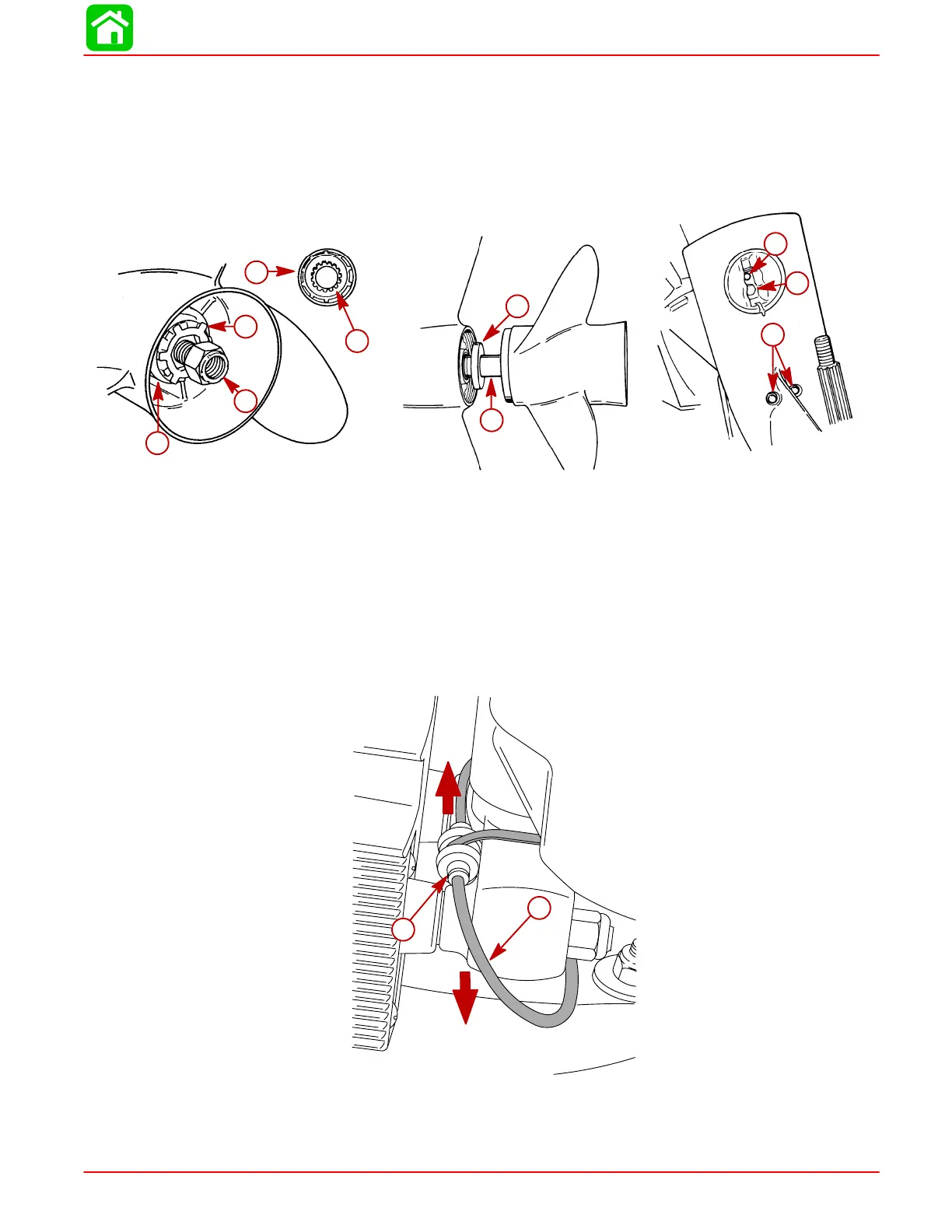

5. Mark gear housing and trim tab so that trim tab can be reinstalled in the same position.
Remove plastic cap at rear edge of driveshaft housing. Remove bolt that secures trim
tab and remove tab from gear housing.
6. Once trim tab is removed, remove bolt from inside of trim tab cavity.
7. Remove 2 locknuts from bottom middle of anti-cavitation plate.
51866
51916
51912
a
b
c
d
e
f
g
h
i
c
a-Tab Washer
b-Propeller Nut
c-Rear Thrust Hub
d-Continuity Washer (if
equipped)
e-Propeller Shaft
f-Thrust Hub (forward)
g-Bolt (secures trim tab)
h-Bolt (inside trim tab cavity)
i-Locknuts and Washers
8. While pressing in on speedometer hose junction, pull out on hose to disconnect.
57735
a
b
a-Press in on Junction
b-Pull out on Hose
