LEFT HAND NON-RATCHETING
Page 6B-22 90-883728 JULY 2001
“Vee” Blocks and Dial Indicator
Position propeller shaft roller bearing surfaces on vee blocks. Mount a dial indicator at
front edge of propeller splines. Rotate propeller shaft. Dial indicator movement of more
than 0.006 in. (0.152 mm) (or noticeable wobble) is reason for replacement.
DISASSEMBLY

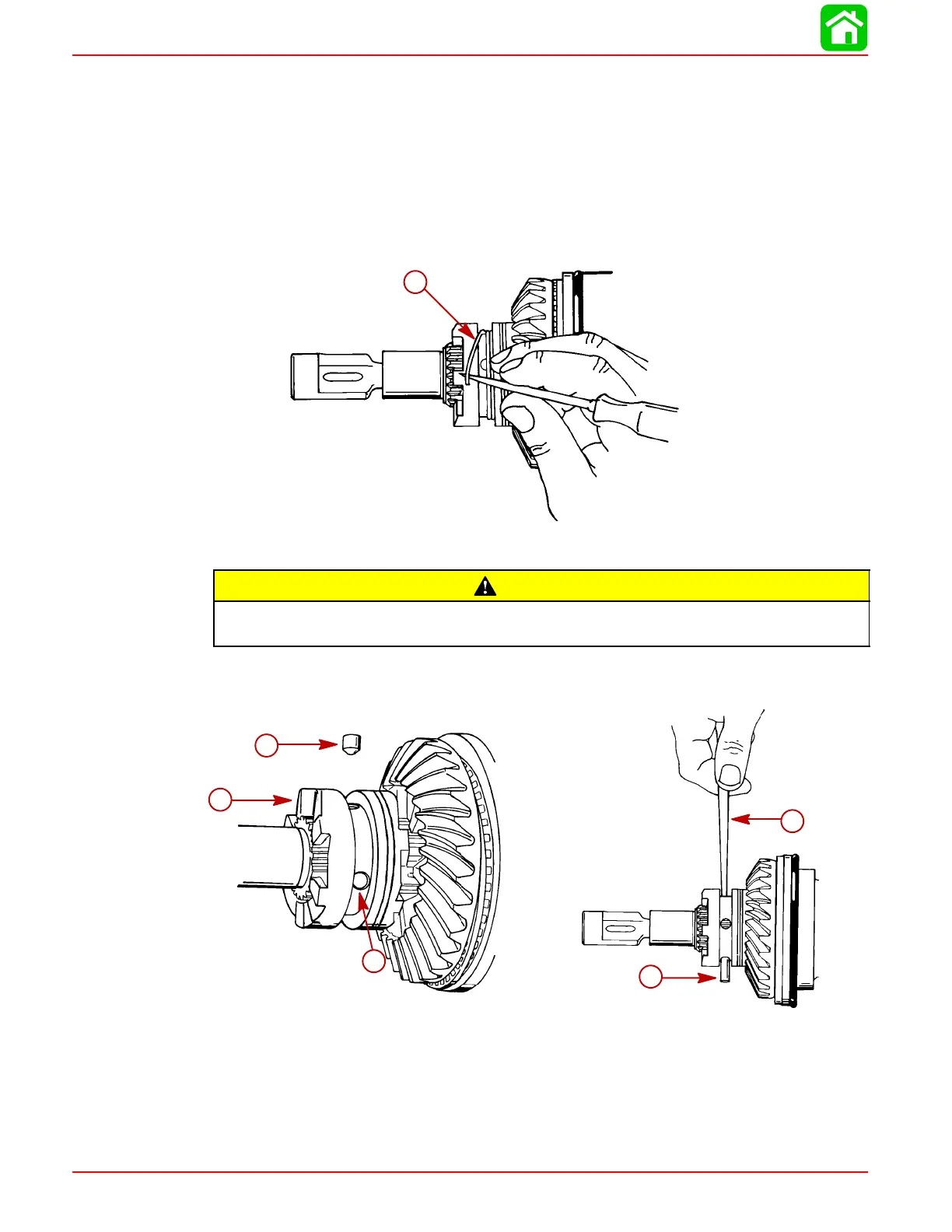

1. Remove shift cam from cam follower.
2. Insert a thin blade screwdriver or awl under first coil of cross pin retainer spring and
rotate propeller shaft to unwind spring from sliding clutch. DO NOT overstretch spring.
a
51875
a
a-Cross Pin Retainer Spring
CAUTION
Detent pin is free and can fall out of sliding clutch. Care MUST BE taken not to lose
pin.
3. Detent pin is free and can be removed from sliding clutch at this time.
4. Push cross pin out of sliding clutch and propeller shaft with a punch.
51875
d
e
a
c
b
51879
a
b
c
a-Detent Pin
b-Cross Pin
c-Sliding Clutch
d-Cross Pin
e-Punch
