Mercury 200XRI User Manual

LEFT HAND NON-RATCHETING
Page 6B-34 90-883728 JULY 2001

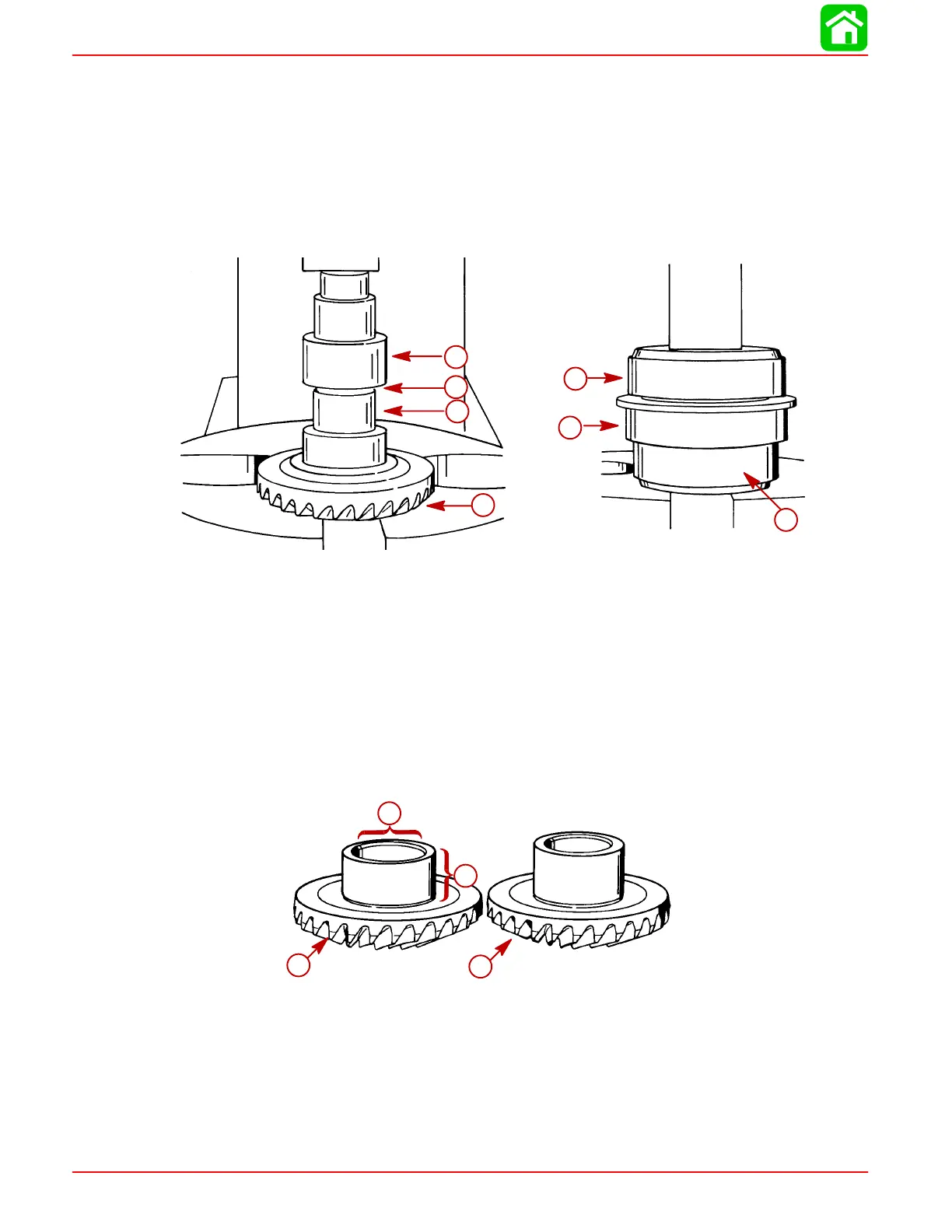

REVERSE GEAR AND BEARING CUP ADAPTOR REASSEMBLY
1. With reverse gear teeth facing down, use mandrel (91-86943) to press propeller shaft
needle bearing (NUMBERS/LETTERS UP) into reverse gear until short shoulder on
mandrel bottoms on reverse gear.
NOTE: If gear housing has been replaced or inspection determines that reverse gear
bearing adapter must be replaced, assemble and install as follows:
2. Place reverse gear roller bearing (NUMBER/LETTERS UP) in press. Using suitable
mandrel, press bearing cup adapter onto reverse gear bearing.
a
b
c
e
f
g
a
c
d
b
51883
a
b
c
d
a-Reverse Gear Teeth
b-Mandrel (91-86943)
c-Propeller Shaft Needle Bearing
d-Shoulder
e-Mandrel
f-Bearing Cup Adapter
g-Reverse Gear Roller Bearing
IMPORTANT: The appearance of the forward and reverse gear is almost identical.
There are two ways to distinguish between the reverse and forward gears. The re-
verse gear has a shorter hub and it has a smaller inner diameter needle bearing
bore.
50885
d
a
b
c
a
b
c
d
a-Reverse Gear
b-Forward Gear
c-Shorter Length Hub
d-Smaller Diameter Bearing Bore
