LEFT HAND NON-RATCHETING
Page 6B-48 90-883728 JULY 2001

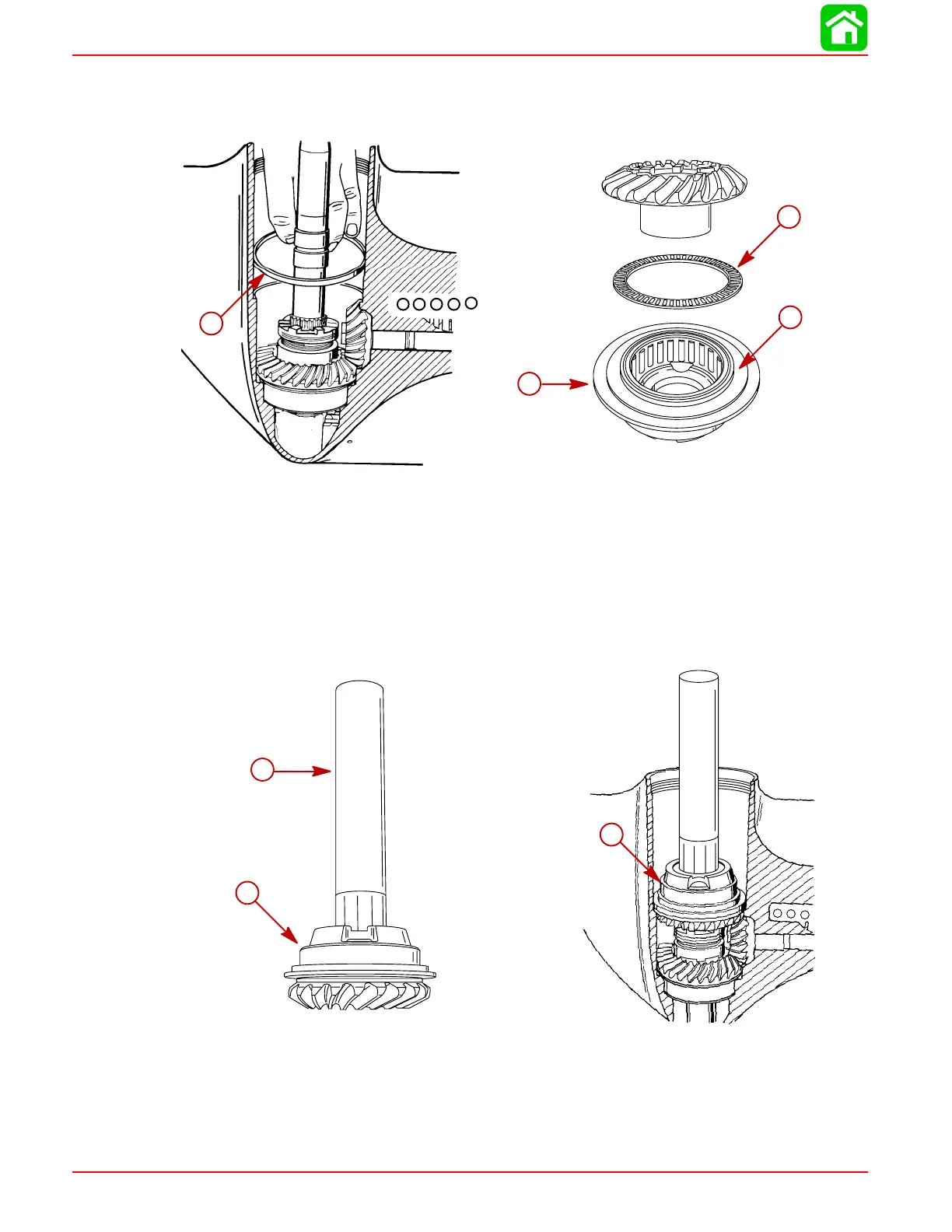

13. Install appropriate spacer shim into the gear housing.
14. Apply Quicksilver Super Duty Gear Lubricant to to thrust bearing and install thrust
bearing and thrust race onto forward gear bearing adaptor.
c
b
a
55220
50782
a
b
c
d
a
a-Shim
b-Bearing Adaptor
c-Thrust Washer
d-Thrust Bearing
15. Insert Forward Gear Installation Tool (91-815850) into forward gear/bearing adaptor
assembly.
16. Install tool with adaptor assembly over propeller shaft and into gear housing. Applying
downward pressure to bearing adaptor, remove installation tool from assembly.
55202
a
a
b
55221
a
b
c
a-Forward Gear Installation Tool (91-815850)
b-Forward Gear/Bearing Adaptor Assembly
c-Forward Gear Bearing Adaptor
To Next Page
