MAINTENANCE
eng 89
Tube
Ref No.
Description Where Used Part No.
94
Anti-Corrosion
Grease
Propeller shaft splines 92-802867Q 1
95
2-4-C with
PTFE
Propeller shaft splines 92-802859A 1
NOTE: Propellers used on the 31.75 mm (1‑1/4 in.) diameter
propeller shaft require the heavy‑duty propeller hub kit.
5.

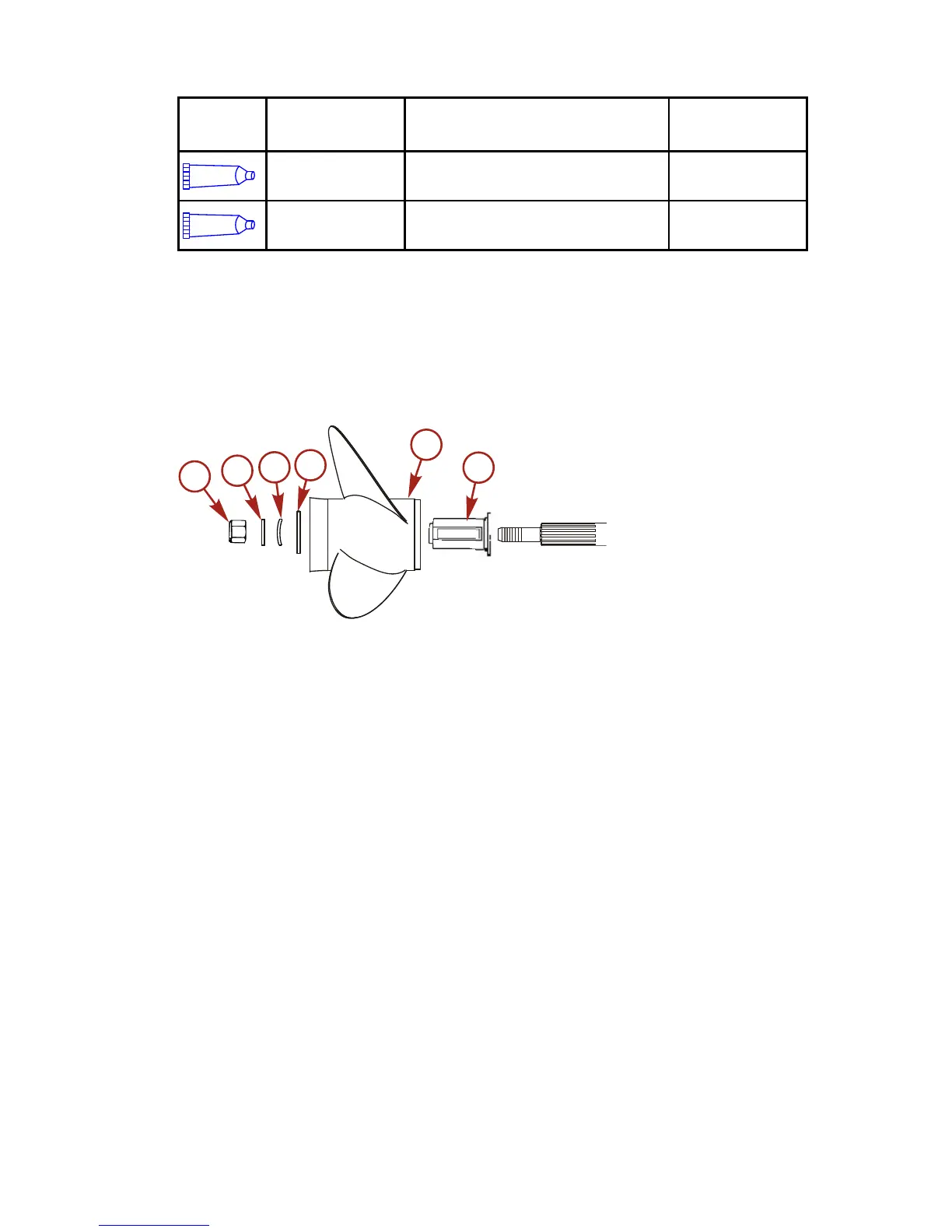

Heavyduty propeller hub ‑ Install the propeller hub,
propeller, washer, Belleville washer, washer, and propeller
nut onto the shaft.
a - Propeller nut
b - Washer
c - Belleville washer
d - Washer
e - Propeller
f - Propeller hub
a
b
c
d
e
f
44856
