MAINTENANCE
eng 81

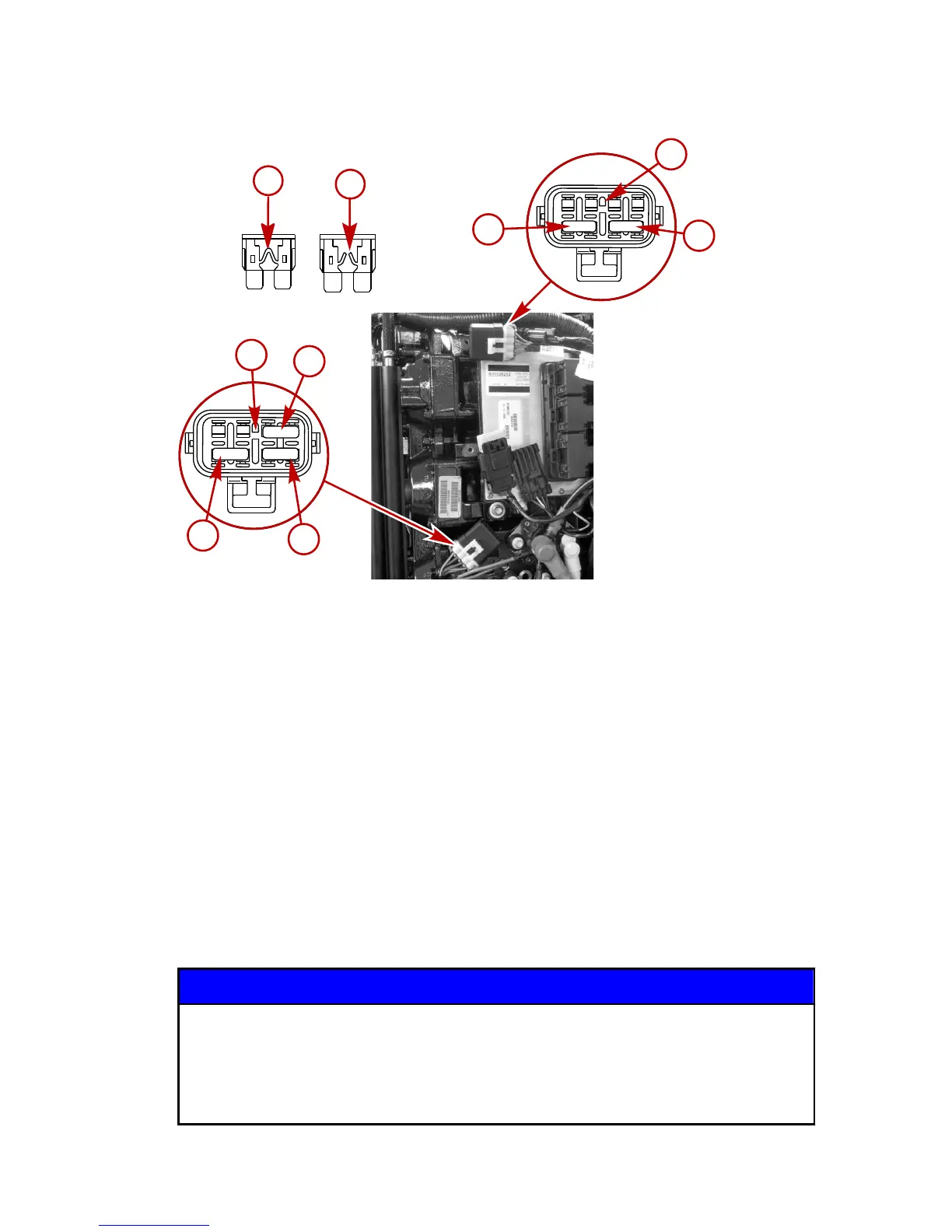

The fuses and circuits are identified as follows:
a - Good fuse
b - Blown fuse
c - Diagnostic circuit ‑ 2 amp fuse
d - Spare fuse slot
e - SmartCraft data bus circuit ‑ 5 amp fuse
f - Ignition coil circuit ‑ 20 amp fuse
g - Accessories/cowl mounted tilt switch/wake power to ECM
‑ 20 amp fuse
h - Electric fuel pump/ECM driver power/oil pump circuit/
injectors ‑ 20 amp fuse
Corrosion Control Anode
NOTICE
Anodes made of insufficiently pure aluminum alloys may not
adequately protect critical drive components from corrosion.
We recommend using anodes sold through Mercury Precision
Parts only.
