OUTBOARD INSTALLATION
122 eng
Dual Outboards
Connect a common ground cable (wire size same as engine
battery cables) between negative (–) terminals on starting
batteries.

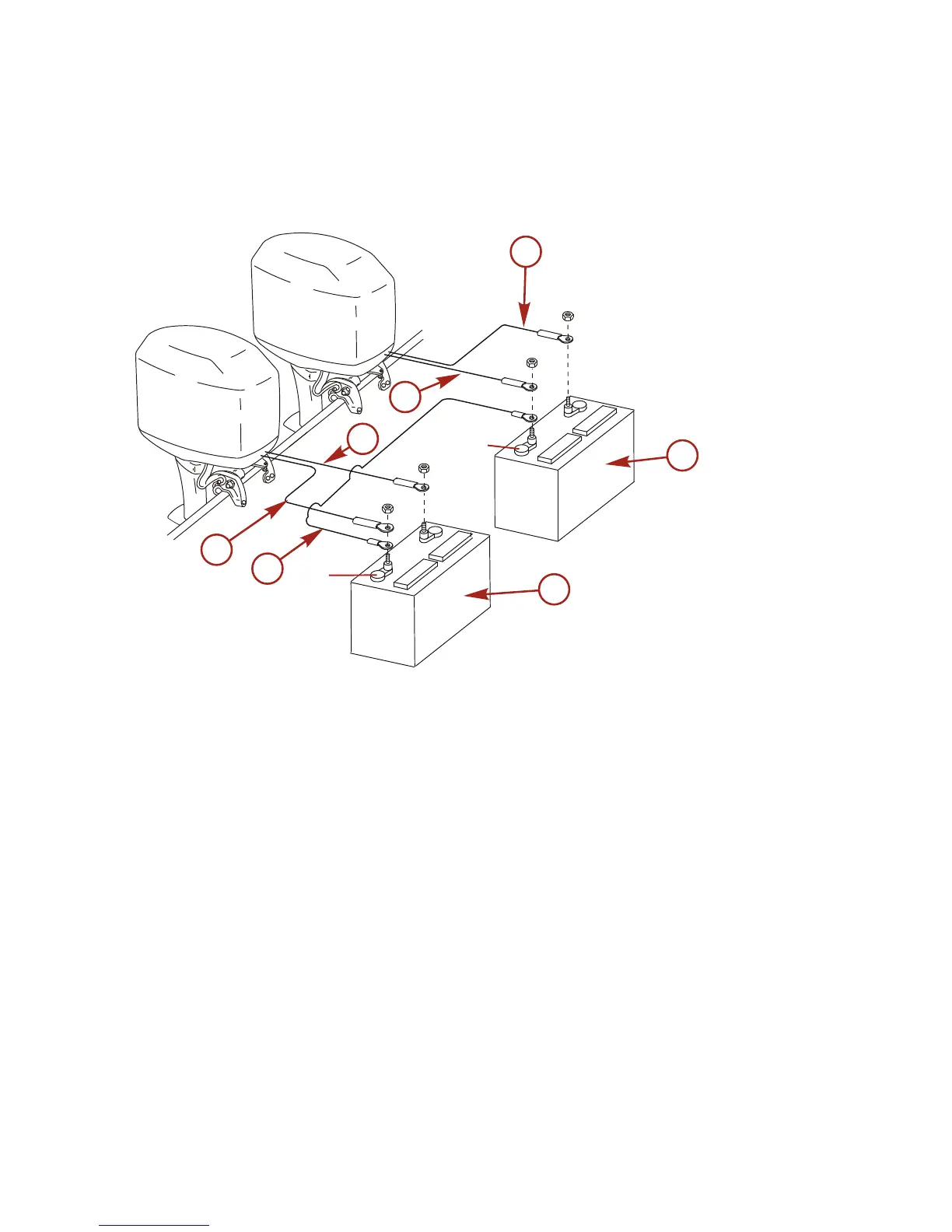

a - Red sleeve ‑ Positive (+)
b - Black sleeve ‑ Negative (–)
c - Ground cable
d - Cranking battery
HOSE AND TUBING CONNECTIONS
Fuel Hose
The minimum fuel line inside diameter (I.D.) is 8 mm (5/16 in.),
with a separate fuel line/fuel tank pickup for each engine.
Fasten the remote fuel hose to the fitting with a hose clamp.
Oil Hoses
Connect the remote oil hoses to the engine hose connections.
Fasten hose connections with cable ties.
(-)
(-)
a
a
b
b
c
d
d
15497
