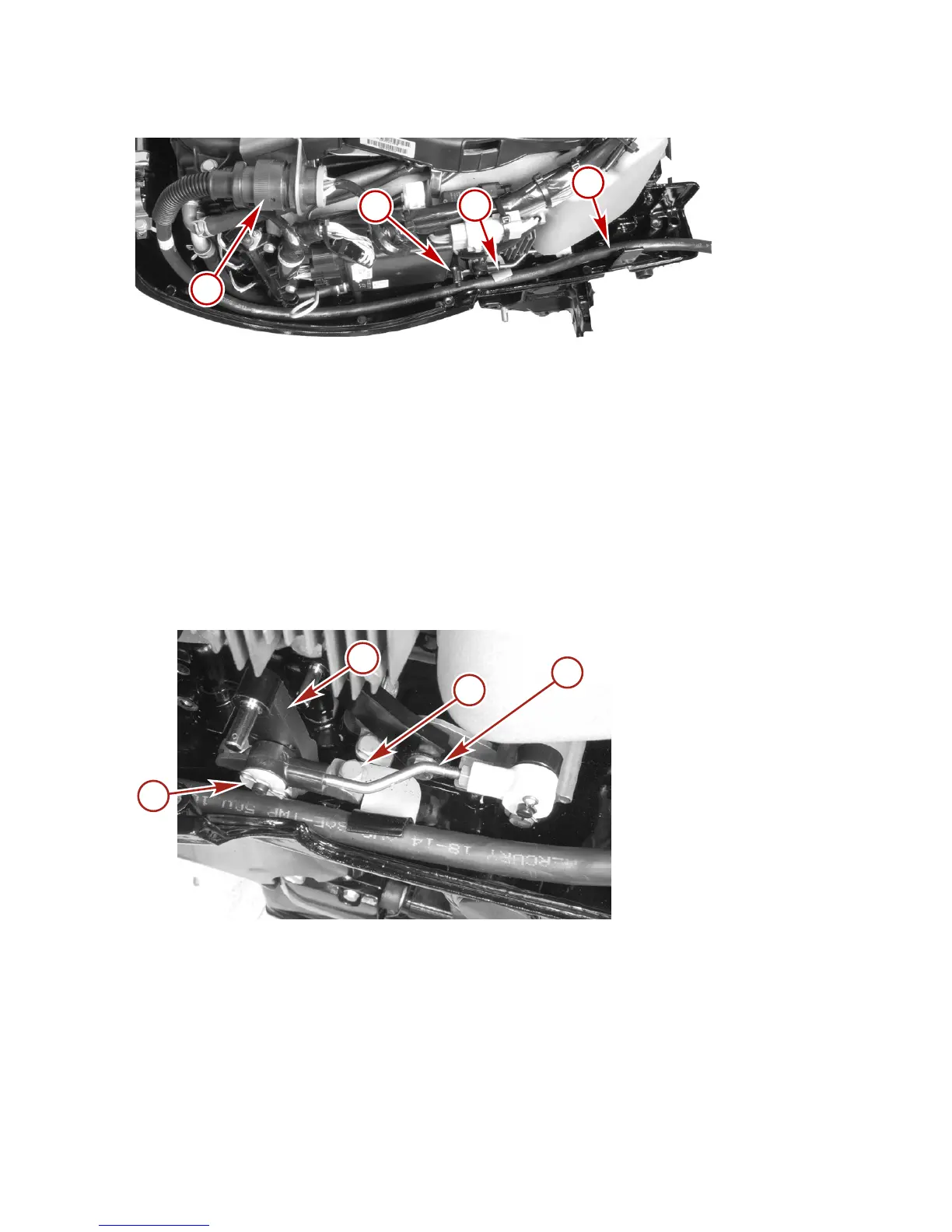

8. Route the harness between the barrel support.
a - Harness connector
b - Shift actuating lever pin
c - Harness retainer bracket
d - Barrel support
9. Ensure the harness retainer bracket is over the remote
harness. Secure harness retainer bracket with bolt. Tighten
bolt to the specified torque.
10.Reinstall the shift link to the shift actuating lever.
a - Washer and cotter pin retainer securing shift link
b - Shift actuating lever
c - Harness retainer bracket bolt
d - Shift link
a
b
c
d
10128
a
b
c
10135
d
