Mercury 300R HD CMS Mechanical User Manual

Tube Ref
No.
Description Where Used Part No.
95
2-4-C with PTFE
Swivel bracket, tilt lock, tilt tube,
propeller shaft
92-802859A 1

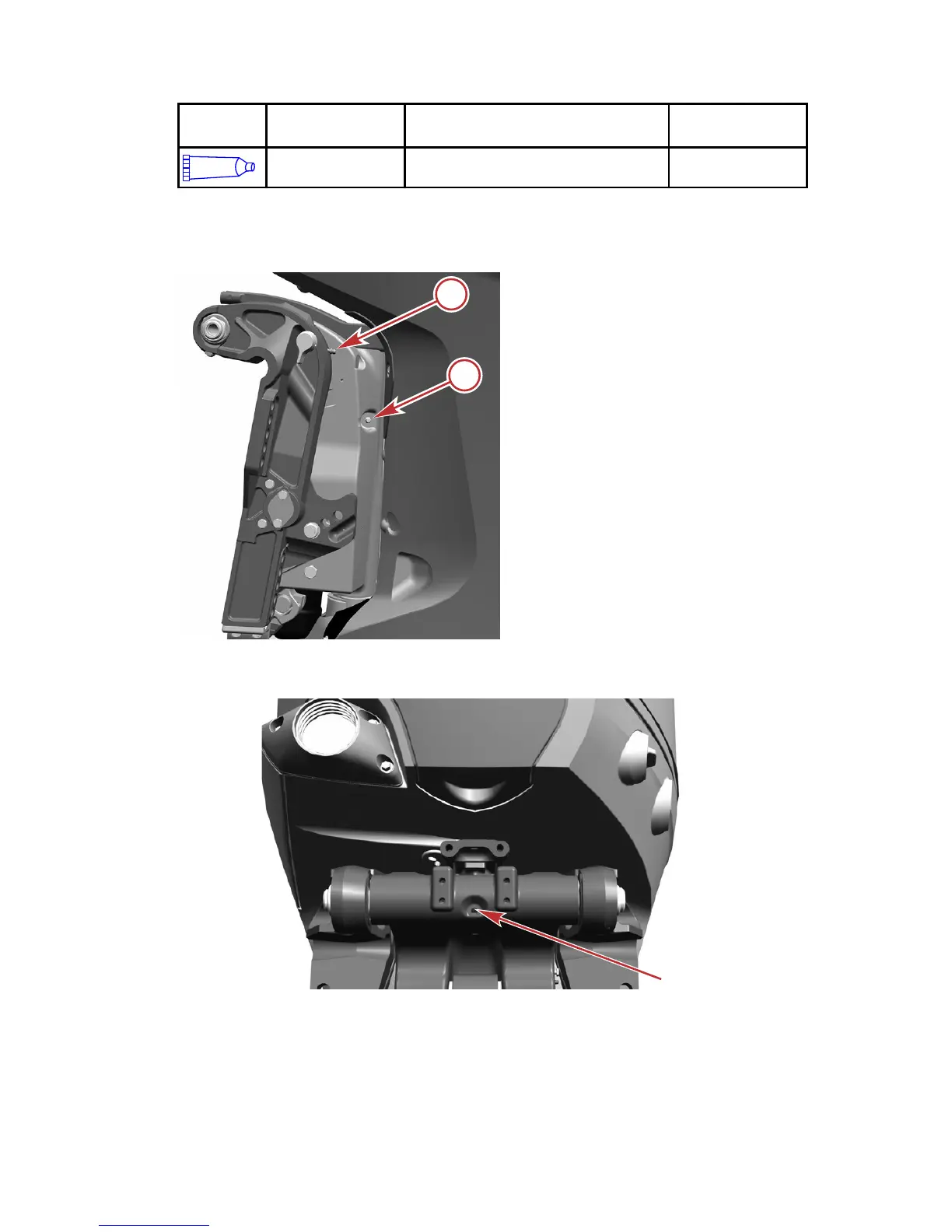

• Lubricate the tilt lock through the grease fitting.
• Lubricate the swivel bracket through the grease fitting.
a - Tilt lock grease fitting
b - Swivel bracket grease fitting
• Lubricate the tilt tube through the grease fitting.
66321
Tilt tube grease fitting
66320
a
b
MAINTENANCE
eng 67
