Section 4 - Maintenance
Page 84 90-8M0113987 eng DECEMBER 2015

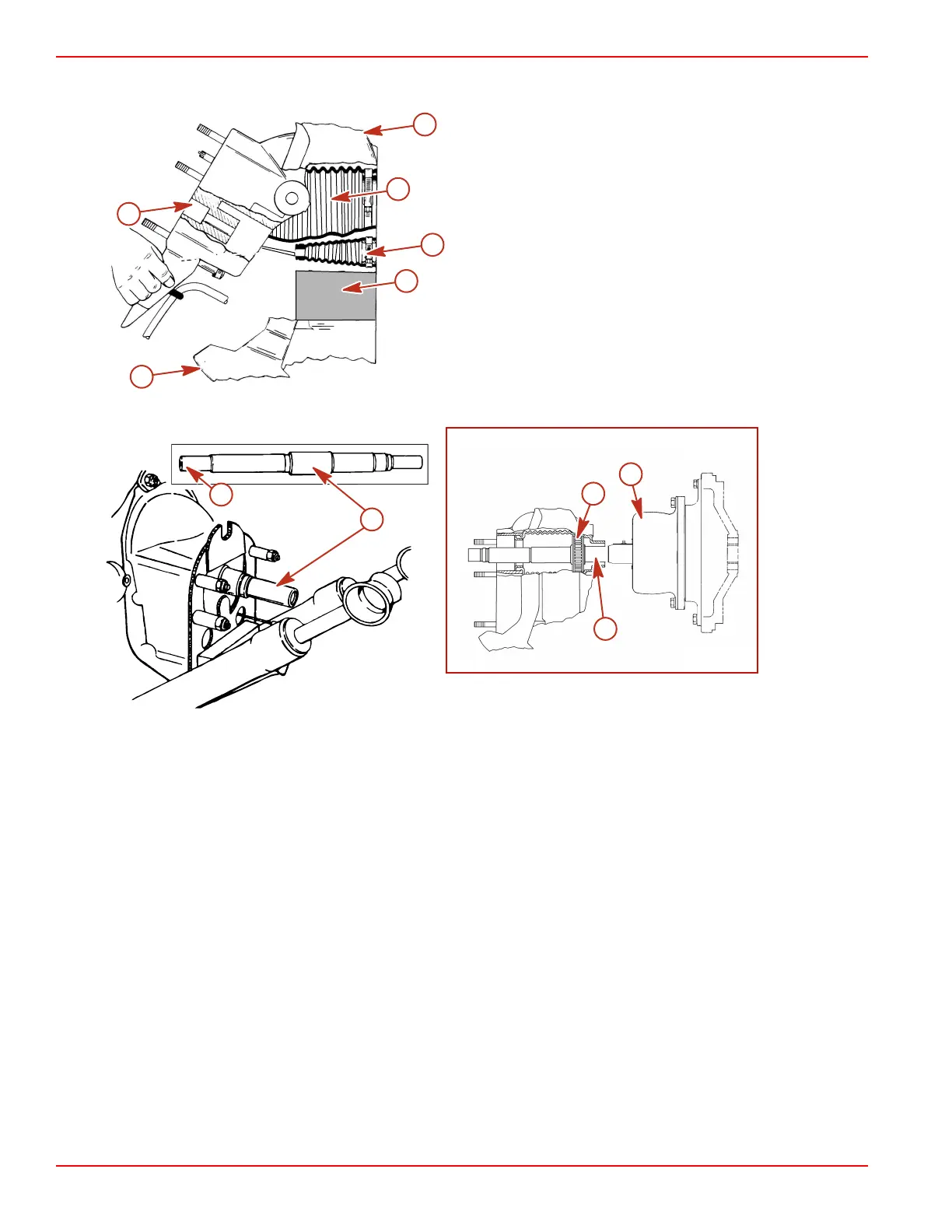

3. Rotate the bell housing in the upward and side‑to‑side directions to inspect the exhaust tube, shift cable bellows, and
clamps.
a - U‑joint bellow
b - Exhaust tube
c - Bell housing
d - Gimbal ring
e - Gimbal housing
f - Shift cable bellows
4. Check the engine alignment.
a - Alignment tool
b - End of alignment tool to insert through gimbal housing assembly
c - Gimbal bearing
d - Engine coupler
Maintaining Torques
Bravo Gimbal Ring U‑bolt Nuts
NOTE: The gimbal ring is a component of the transom assembly.
a
f
b
c
d
e
22189
b
a
7936
c
d
a
