NOTE: New cable fastener screws have a patch locking compound on the threads. Cable
fastener screws that have been installed and removed must have Loctite 271
Threadlocker applied to the threads.
1. Apply Loctite 271 Threadlocker to the threads of the cable fastener screws.

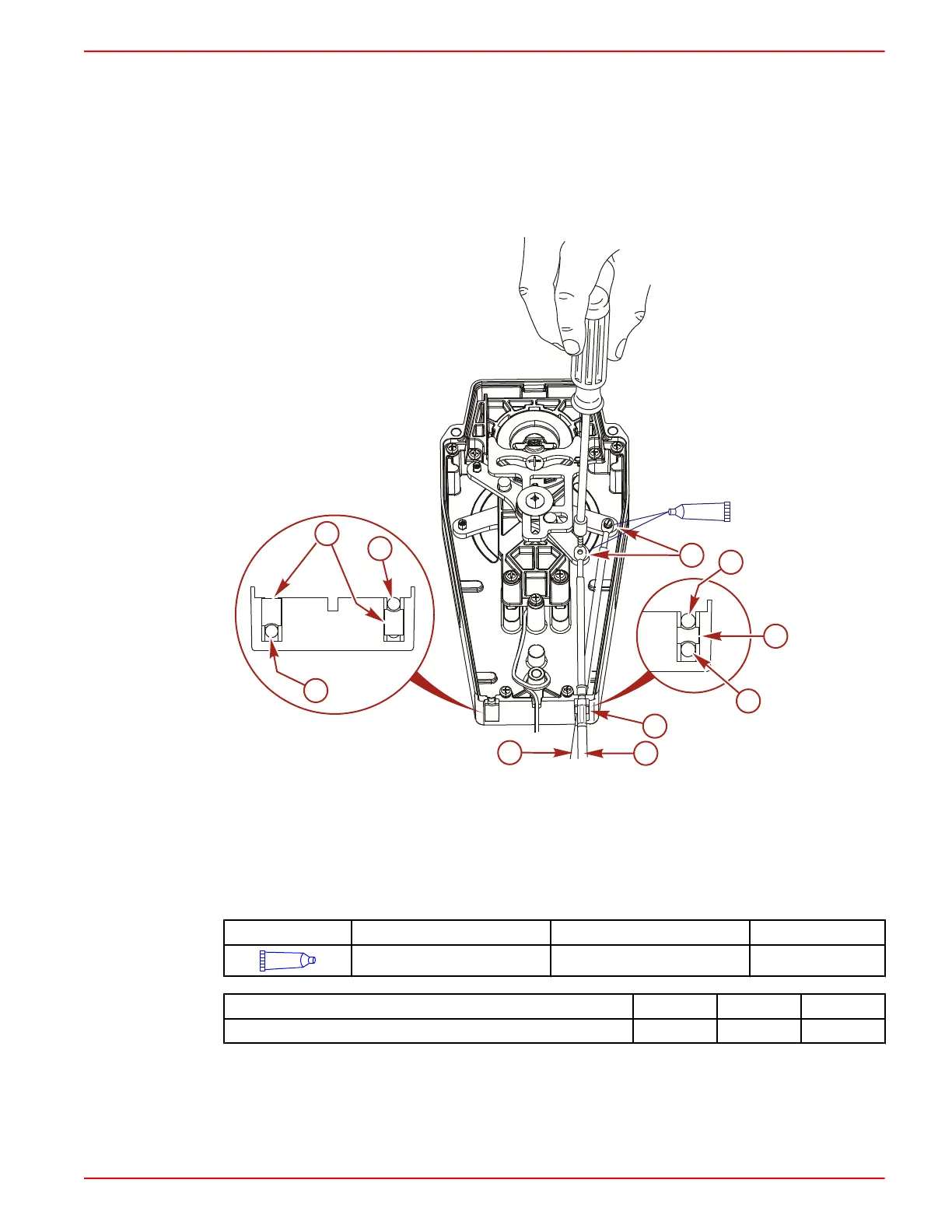

2. Install the control cables in the appropriate arm in the remote control module. Use the
appropriate spacers for the cable installation.
3. Tighten the cable fastener screws to the specified torque.
17555
7
b
d
a
c
d
c
e
c
d
a
a - Small spacer
b - Cable fastener screw
c - Shift cable
d - Throttle cable
e - Large spacer
Tube Ref No. Description Where Used Part No.
7
Loctite 271 Threadlocker Cable fastener screw threads 92-809819
Description Nm lb. in. lb. ft.
Cable fastener screw threads 2.8 25
4. After installing the control cables, secure the back plate with a washer and five screws.
Tighten the screws to the specified torque.
