Mercury 4000 MPC GEN 2 User Manual

4000 MPC GEN 2 PISTOL GRIP REMOTE CONTROL INSTALLATION/OPERATION INSTRUCTIONS
Page 22 / 23 90-899782001 APRIL 2008

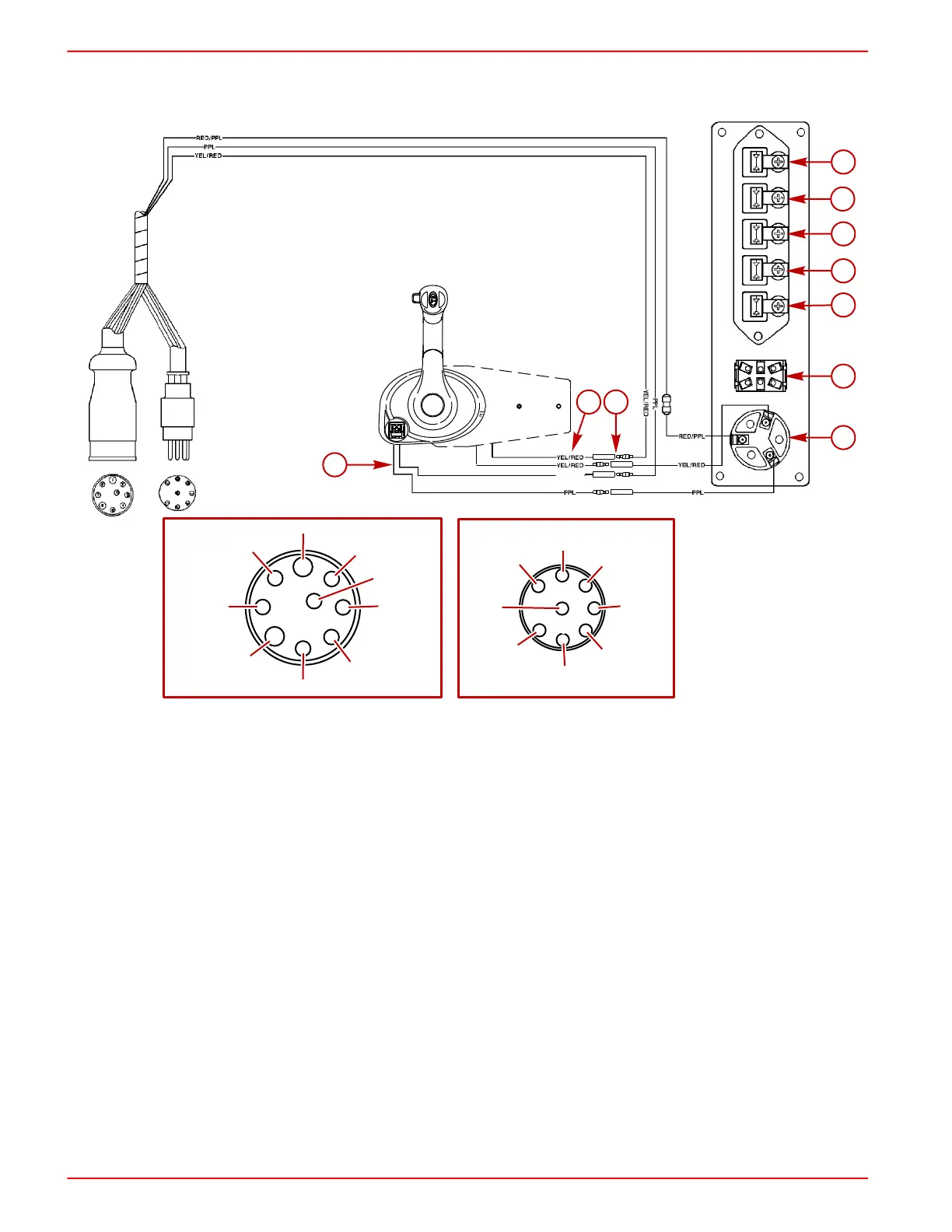

Mercury MerCruiser D7.3L/270 Diesel
A B
24979
a
b
c
d
e
f
g
h i
j
BLK/YEL (1)
BLK (8)
TAN/WHT (6)
WHT/GRN (5)
BLU/TAN (2)
TAN/BLK (3)
BRN (4)
B
YEL/RED (7)
GRY (2)
BRN/WHT (10)
TAN (3)
TAN/BLU (4)
PUR (5)
RED/PUR (6)
A
LT BLU (8)
BLK (1)
BLK (7)
PUR/WHT
a - Water in fuel indicator
b - Coolant temperature
c - Oil pressure
d - Alternator
e - Pre‑heat
f - Light switch and audio test
g - Ignition key switch
h - Neutral start switch leads
i - Bullet or eyelet connectors
j - Lanyard stop leads
GEN 2 Series Panel Mount Remote Control Bezel Template
IMPORTANT: Due to printing variables, the image may have changed from the actual
size. Check this template with the bezel before cutting the mounting holes, or use the
bezel as a guide to mark the mounting surface.
NOTE: This remote control module can be mounted 30° up or down by using the same
bezel mounting location holes. Rotate only the control module to the desired angle. It may
be necessary to secure the bezel with additional wood screws or lag screws.
1. Drill and cut out the shaded area as indicated.
2. When using wood screws or lag screws, drill to the correct hole diameter for the
fastener used. Refer to item a.
