Mercury 4000 MPC GEN 2 User Manual

4000 MPC GEN 2 PISTOL GRIP REMOTE CONTROL INSTALLATION/OPERATION INSTRUCTIONS
Page 2 / 23 90-899782001 APRIL 2008
!
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
!
CAUTION
Indicates a hazardous situation which, if not avoided, could result in minor or moderate
injury.
IMPORTANT: Indicates information or instructions that are necessary for a particular
step or action.
NOTE: Indicates information that helps in the understanding of a particular step or action.

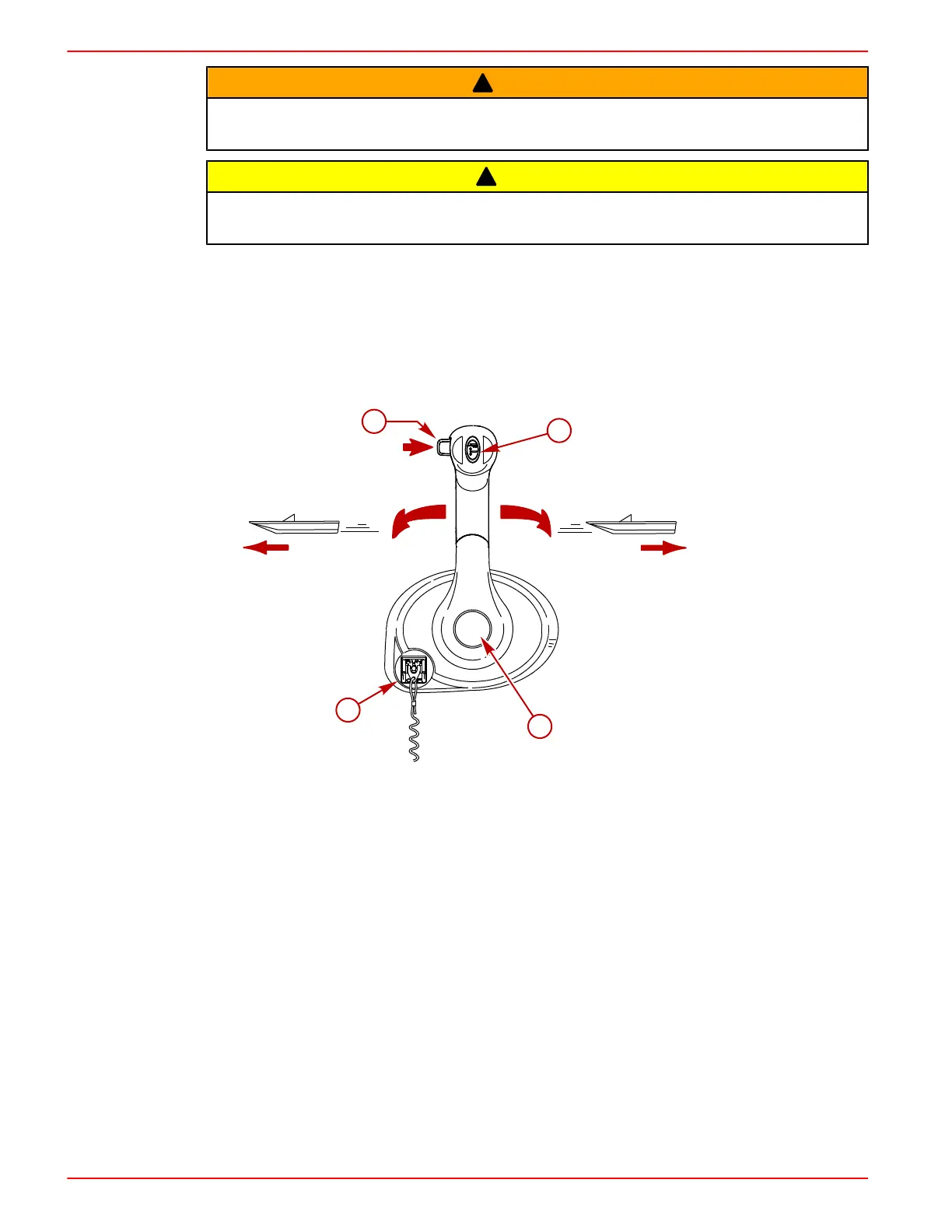

GEN 2 Pistol Grip with Finger Tip Neutral Lock Release Panel Mount
Remote Control Features and Operation
24030
1
2
3
4
1 - Neutral lock button
2 - Throttle only button
3 - Power trim switch
4 - Lanyard stop switch
1. Neutral lock button ‑ Prevents unintentional shifting into gear. To shift into gear,
press and hold the neutral lock button and move the control handle out of neutral.
2. Throttle only button ‑ The throttle only button allows throttle advancement without
shifting the engine. The throttle only button disengages the shifting mechanism from
the control handle. The throttle only button can be pressed and held in only when the
remote control handle is in the neutral position. While holding the throttle only button
in, move the throttle handle forward to assist in starting the engine.
3. Power trim (and trailer MCM only) switch (if equipped) ‑ Used to trim or raise drive
unit for trailering, launching, beaching, or shallow water operation.

Mercury 4000 MPC GEN 2 Specifications

General

Brand	Mercury
Model	4000 MPC GEN 2
Category	Marine Equipment
Language	English
