4000 MPC GEN 2 PISTOL GRIP REMOTE CONTROL INSTALLATION/OPERATION INSTRUCTIONS
Page 16 / 23 90-899782001 APRIL 2008

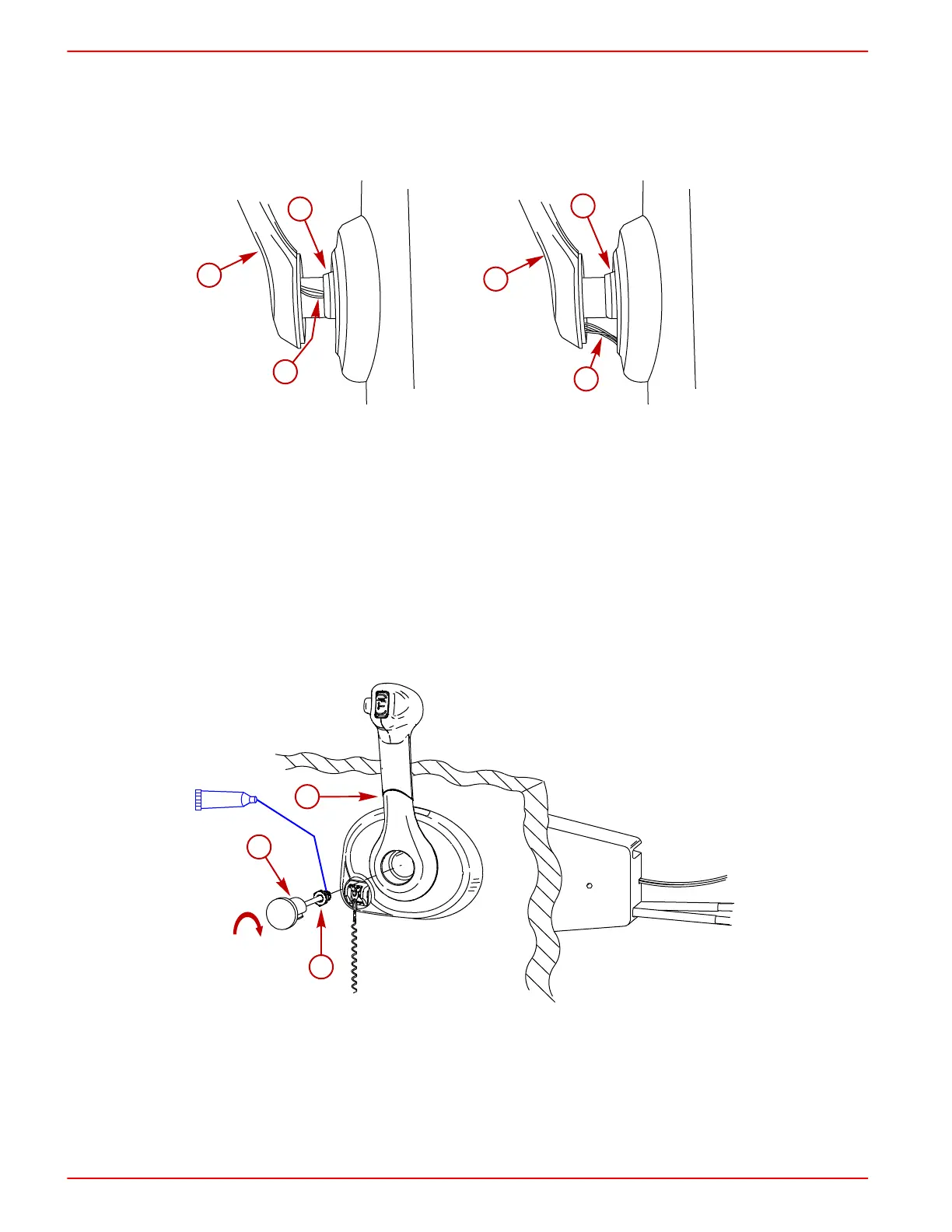

IMPORTANT: Ensure the trim switch wires do not become pinched between the bezel
and the control handle during the installation of the control handle onto the remote control.
Failure to ensure the trim switch wires do not become pinched during the installation of
the control handle onto the remote control, may result in the trim switch wires shorting
out and causing a trim system failure.
a
b
c
27732
a
b
c
27733
Incorrect trim switch wire routing
Correct trim switch wire routing
a - Control handle
b - Bezel
c - Trim switch wires
9. Secure the control handle with the retaining bolt. Tighten the control handle retaining
bolt to the specified torque.
IMPORTANT: Do not use air driven tools to install the control handle retaining bolt.
NOTE: As an aid for installing the control handle retaining bolt, use the throttle‑only button
as a tool to align the threads to the control. Once the bolt threads are started, remove the
throttle‑only button and complete the installation. Tighten the retaining bolt to the specified
torque.
a
b
c
24972
7
a - Handle assembly
b - Throttle‑only button
c - Control handle retaining bolt
