Mercury 4000 MPC GEN 2 User Manual

4000 MPC GEN 2 PISTOL GRIP REMOTE CONTROL INSTALLATION/OPERATION INSTRUCTIONS
Page 6 / 23 90-899782001 APRIL 2008

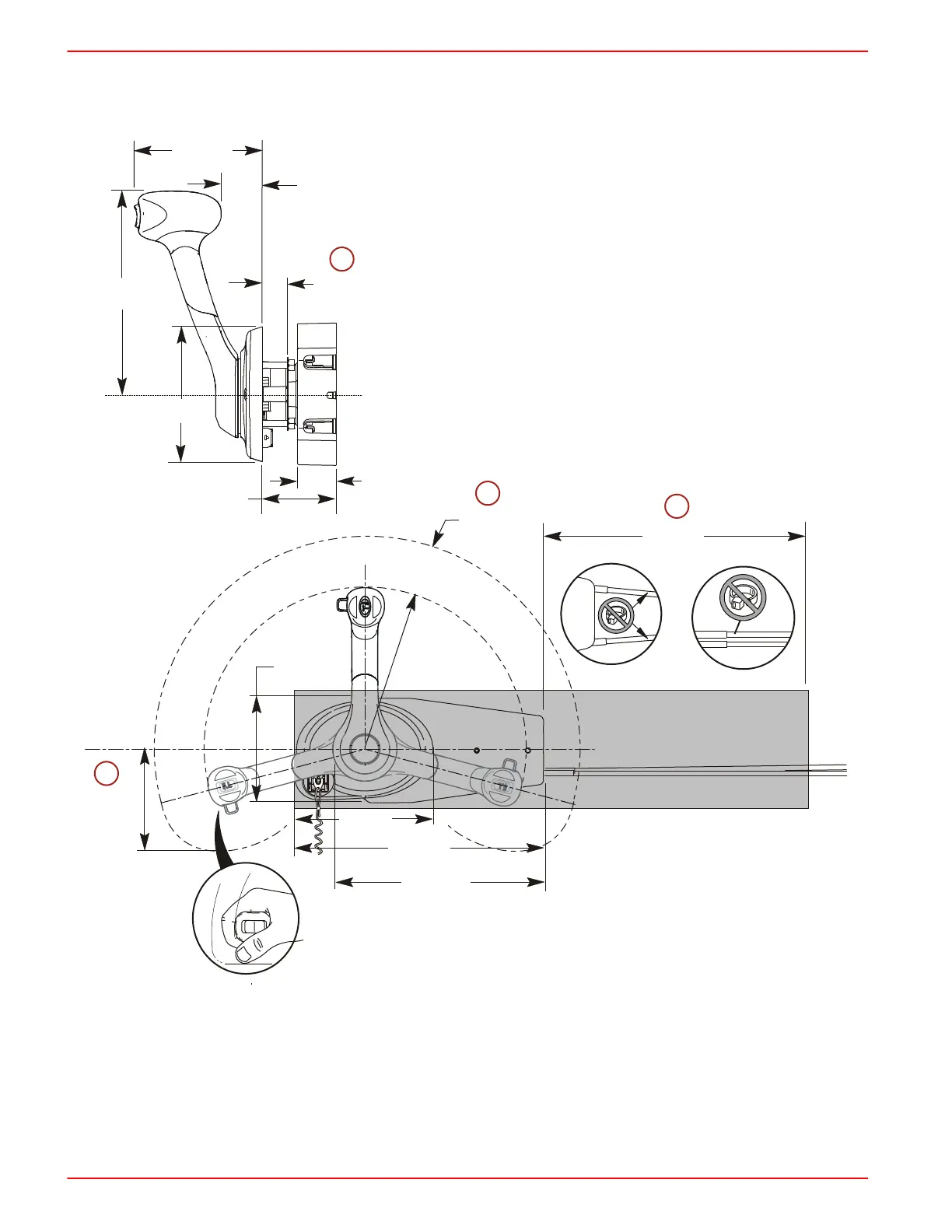

IMPORTANT: Ensure the remote control has a minimum of 45.7 cm (18 in.) straight
routing clearance for the control cables and does not contact other components. Refer
to the shaded area.
41.27 mm
(1.625 in.)
136.52 mm
(5.375 in.)
76.5 mm
(3.00 in.)
25.4 mm
(1.00 in.)
217.50 mm
(8.56 in.)
40.6 mm
(1.60 in.)
142.2 mm
(5.60 in.)
b
a
c
c
25027
(8.62 in.)
R 218.9 mm
(2.00 in.)
50.8 mm
(18.00 in.)
457. mm
(5.81 in.)
147.5 mm
(7.78 in.)
197.6 mm
120.6 mm
(4.75 in.)
353.1 mm
(13.9 in.)
303.3 mm
(11.94 in.)
a - Maximum mounting panel thickness
b - Do not use anchors, clamps, cable ties, or secure any harnesses or other
items within 45.7 cm (18 in.) of the control cables exiting the remote control
module
c - Hand clearance
