CYLINDER BLOCK AND CRANKCASE
90-857138R1 MAY 2000 Page 4B–29

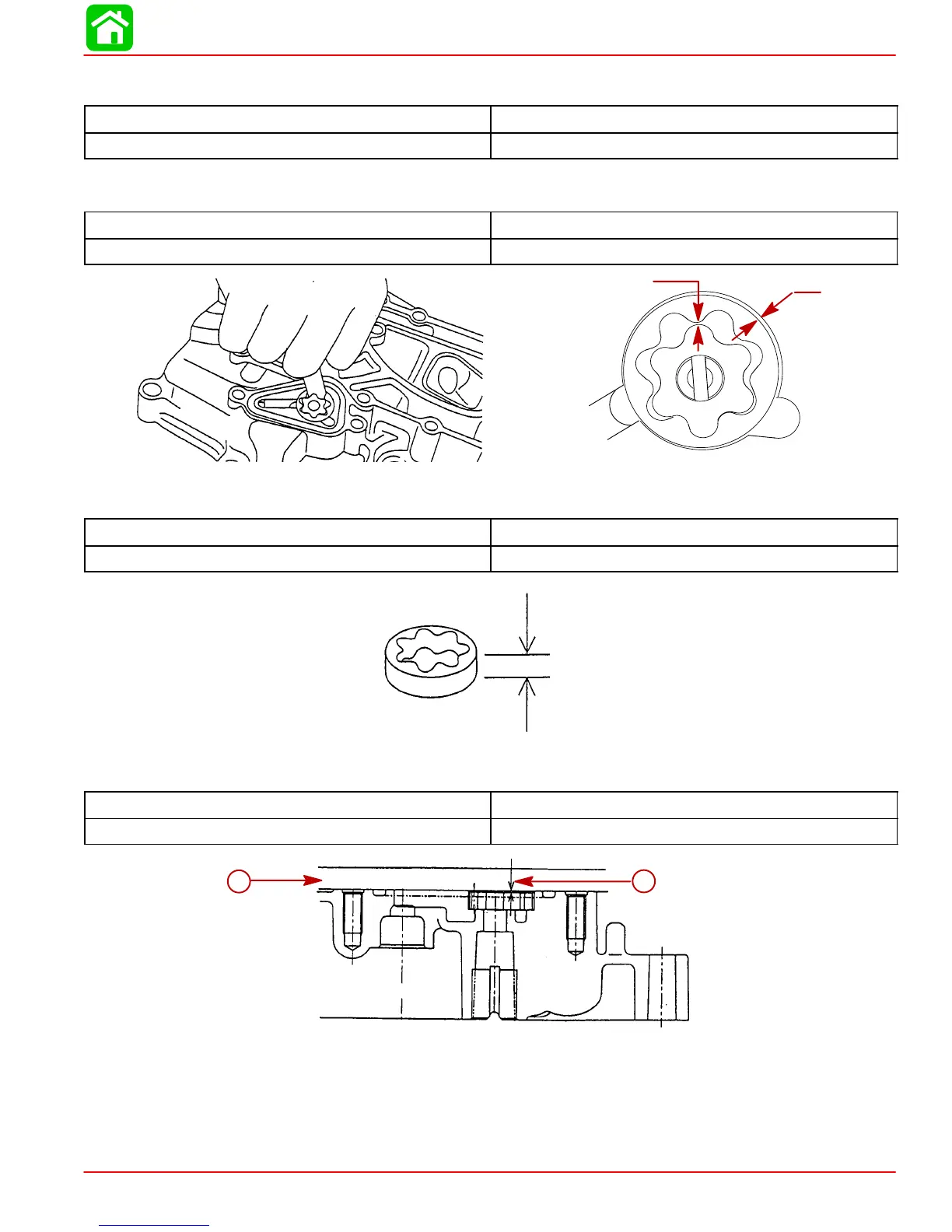

Measuring Clearance Between Inner and Outer Rotors “A”
Standard Value Out of the Limit
0.006 in. (0.15 mm) or less If 0.008 in. (0.20 mm) or more requires replacement
Measure Clearance Between Outer Rotor and Body “B”
Standard Value Out of the Limit
0.005 - 0.008 in. (0.12 - 0.20 mm) If 0.010 in. (0.25 mm) or more requires replacement
A
B
Measuring Height of Oil Pump Outer Rotor
Standard Value Out of the Limit
0.236 in. (5.99 mm) If 0.234 in. (5.96 mm) or less requires replacement
Measuring Side Clearance Between Oil Pump Outer Rotor and Body
Standard Value Out of the Limit
0.0008 - 0.0028 in. (0.02 - 0.07 mm) If 0.004 in. (0.10 mm) or more requires replacement
a
b
a-Straight Edge
b-Clearance Measured Using a Feeler Gauge
To Next Page
