Mercury 6 4-Stroke User Manual

OPERATION
27
ob00473

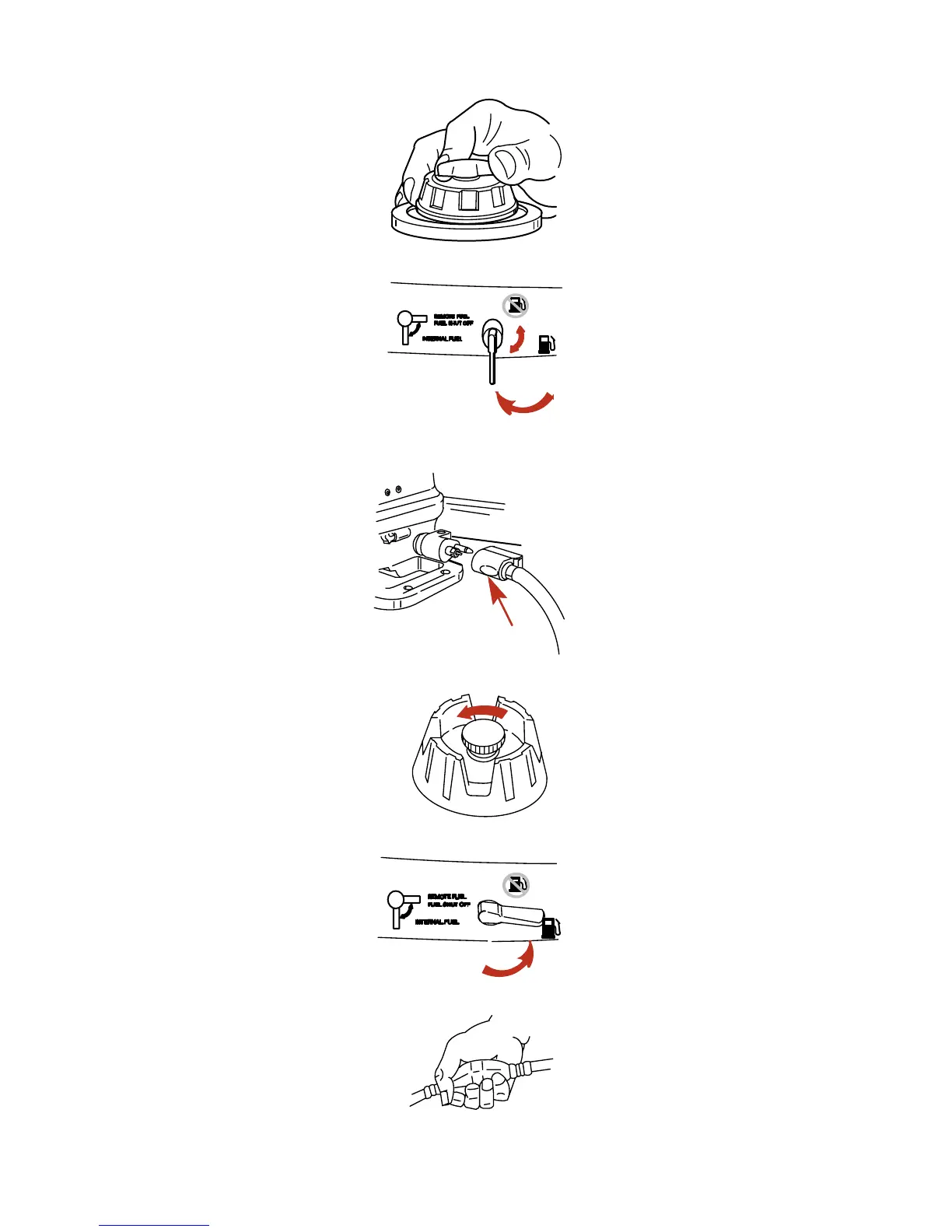

b. Move the fuel shut-off valve to the lower position.
ob00474
6. Starting models with remote fuel tank
a. Connect the remote fuel line to the outboard. Make sure connector is snapped into place.
ob00475
b. Open fuel tank vent on manual venting type tanks.
ob00348
c. 4 Hp Models with optional remote fuel tank - Move the fuel valve to the up position.
ob00476
d. Squeeze the fuel line primer bulb several times until it feels firm.
ob00349
7. Set the throttle grip to start position.

Mercury 6 4-Stroke Specifications

General

Engine Type	4-Stroke
Cylinders	1
Starting System	Manual
Full Throttle RPM Range	5000-6000 RPM
Steering	Tiller
Horsepower	6 HP
Shaft Length	15 in
