REMOTE WIRING HARNESS

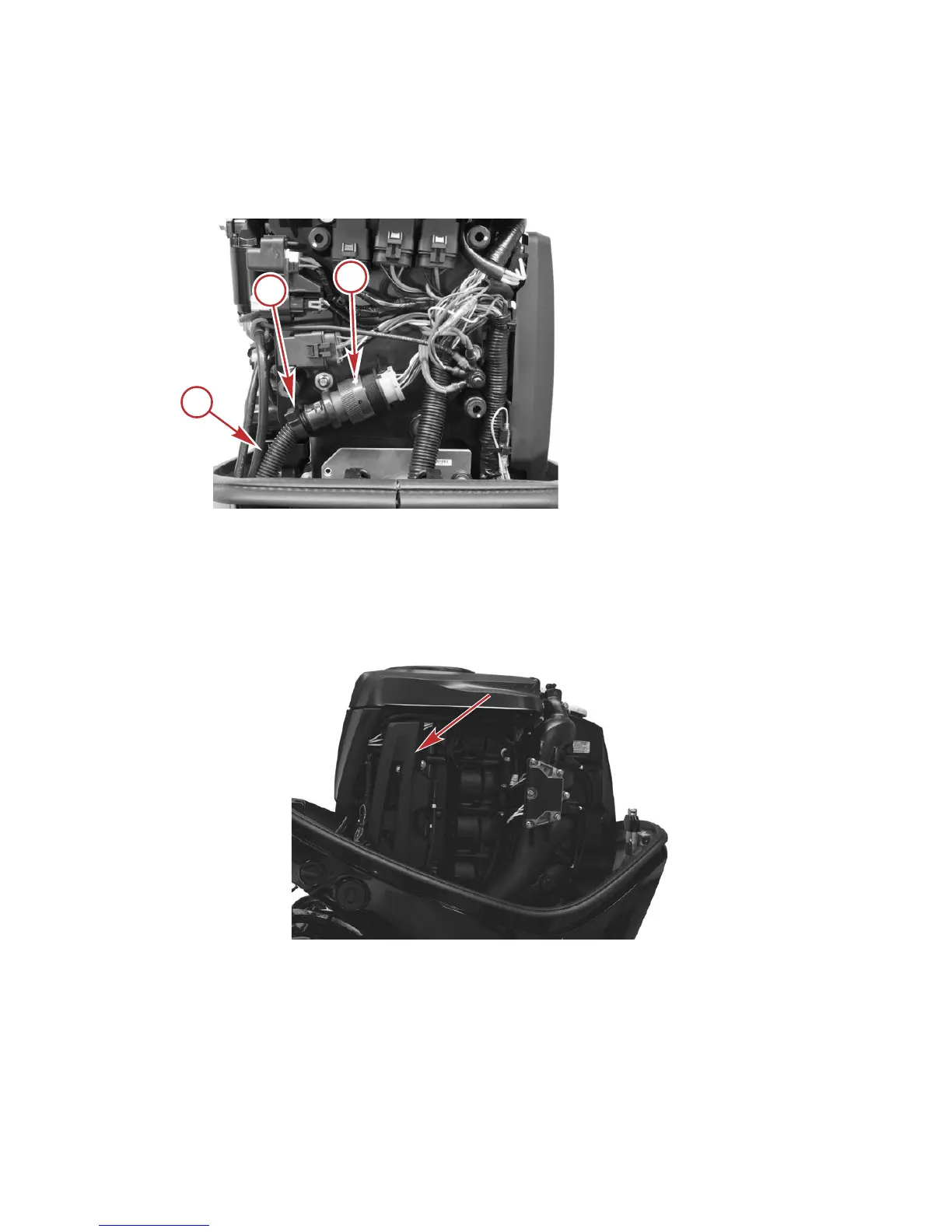

Route the remote 14 pin boat harness through the rigging grommet. Remove
the harness cover and connect the remote harness to the 14 pin connector on
the engine harness. Secure the harness with the retainer.
a - Remote 14 pin boat
harness
b - Retainer
c - 14 pin connector
SMARTCRAFT HARNESS AND VESSEL HARNESS CONNECTION
1. If the boat is equipped with a SmartCraft and/or vessel (accessory)
harness, remove the ignition coil cover located on the port side of the
engine.
53826
a
b
c
53886
OUTBOARD INSTALLATION
eng 121

Mercury 80 Specifications

General

Steering	Remote
Shaft Length	20 in (508 mm)
Gear Ratio	2.07:1
Horsepower	80 hp
Full Throttle RPM Range	5000-6000 RPM
Bore x Stroke	3.15 x 3.15 in (80 x 80 mm)
