Mercury 9.9 ProKicker User Manual

ENGINE INSTALLATION
eng 133
2. Route the remote wiring harness through the rubber
grommet.
3. Open up the clamp in the bottom cowl and position the
remote wiring harness below the clamp. Connect the 8 pin
connector to the engine harness. Push the clamp down and
secure the remote wiring harness into the bottom cowl.

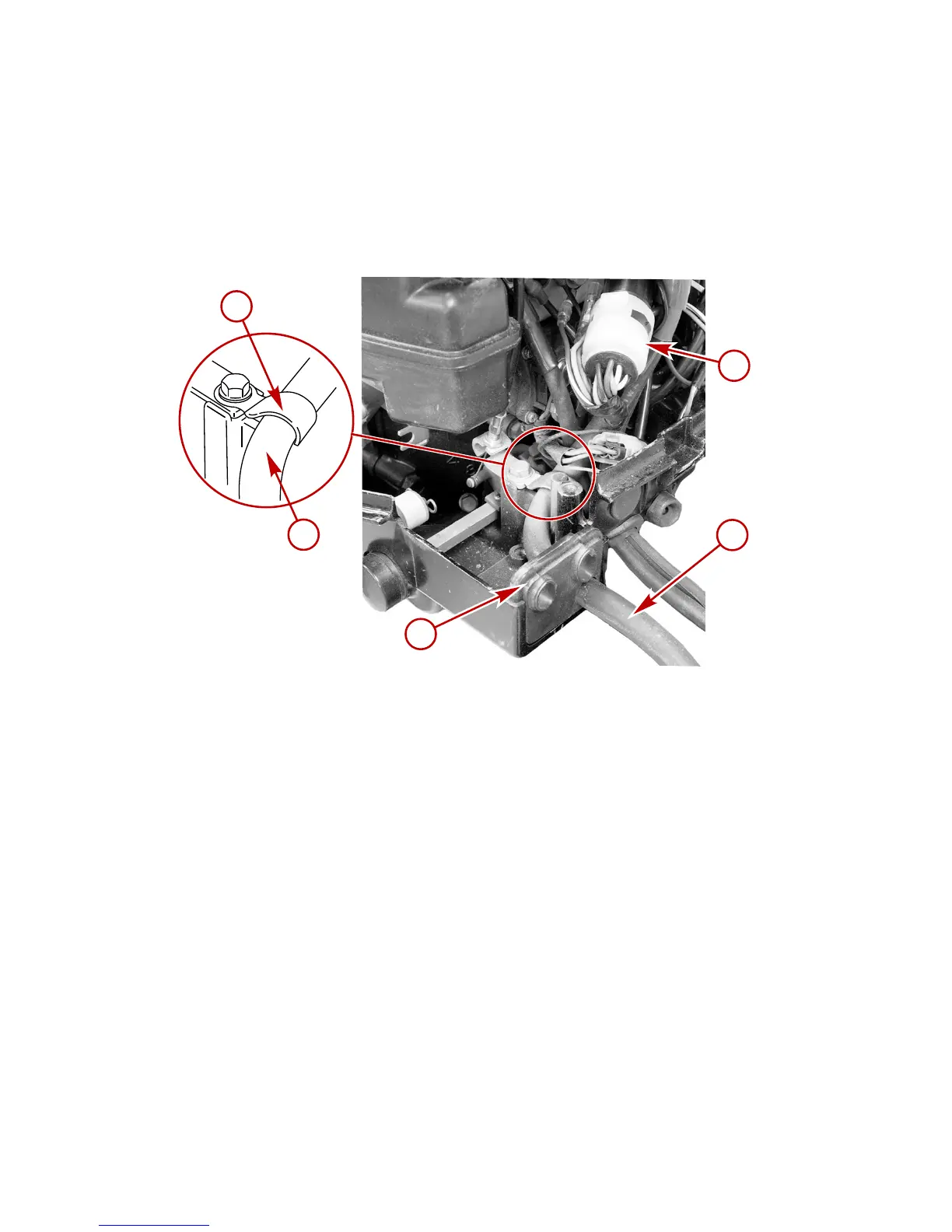

a - Clamp
b - Remote wiring harness
c - 8 pin connector
d - Rubber grommet
a
b
c
b
d
28798
