TILLER HANDLE TILT LOCK—2 POSITION HANDLE
The tilt lock feature allows for the tiller handle to be tilted up and locked in the
full tilt angle position. When using the tilt lock feature, move the tiller handle to
the full tilt angle position and rotate the tilt lock knob clockwise so that the cross
pin will access the through slot. Push in the tilt lock knob to engage the lock.
Release the lock by pulling out the tilt lock knob and turning it
counterclockwise.

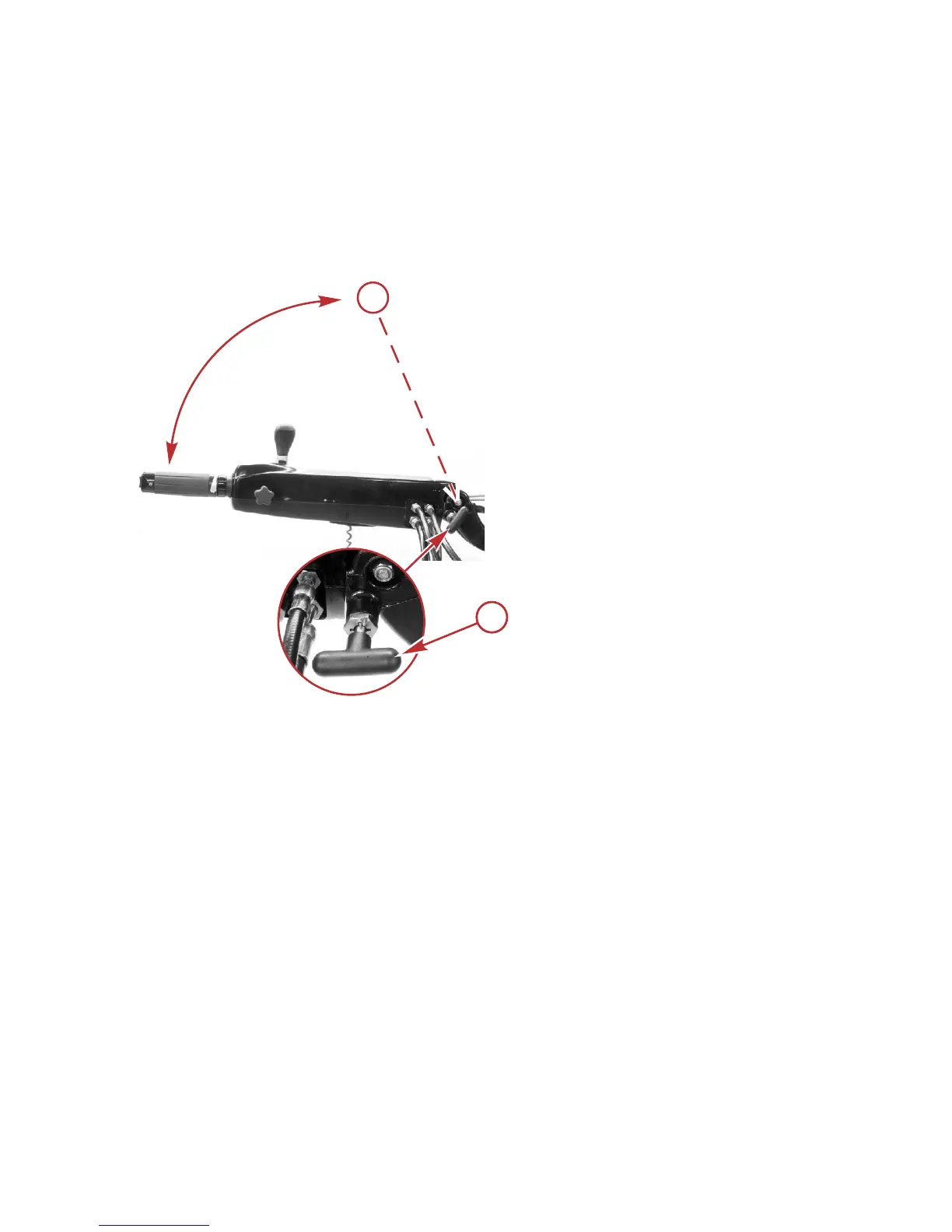

a - Full tilt angle position
b - Tilt lock knob
NOTE:
For V6 and V8 CMS applications only.
