3. Plug the correct connector on the FDD cable for the 5.25-inch or 3.5-inch drive
into the FDD connector (B).
4. Plug a power cable from the case power supply into the power connector on
the FDD (C).
When you first start up your system, go immediately to the Setup Utility to
configure the floppy diskette drives that you have installed. See Standard
CMOS Features on page 26 for more information.
Installing Add-on Cards
This mainboard has five 32-bit PCI (Peripheral Components Interconnect)
expansion slots, one 4xAGP slot, and one Communications and Networking
Riser (CNR) slot.

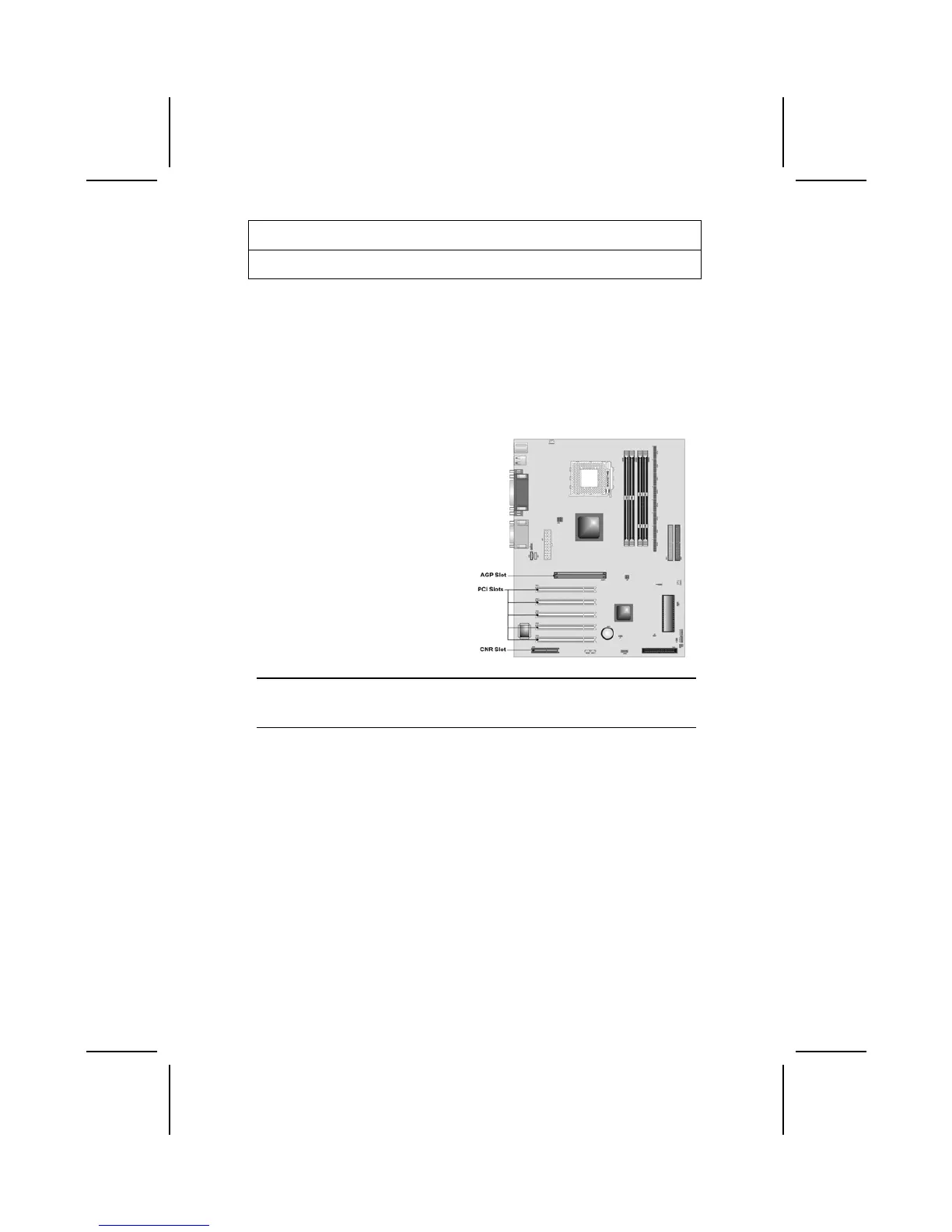

PCI Slots
PCI slots are used to
install expansion cards
that have the 32-bit
PCI interface.
4xAGP
Slot
The 4xAGP slot is used
to install a graphics
adapter that supports
the 4xAGP specifica-
tion and has a 4xAGP
edge connector.
CNR Slot
This slot is used to
insert CNR cards with
Modem and Audio
functionality.
Note: Before installing an add-on card, check the documentation for the card
carefully. If the card is not Plug and Play, you may have to manually con-
figure the card before installation.
