MIE MODELS - VELVET DRIVE TRANSMISSION
SERVICE MANUAL NUMBER 23
90-861326--1 MARCH 1999 Page 2C-7

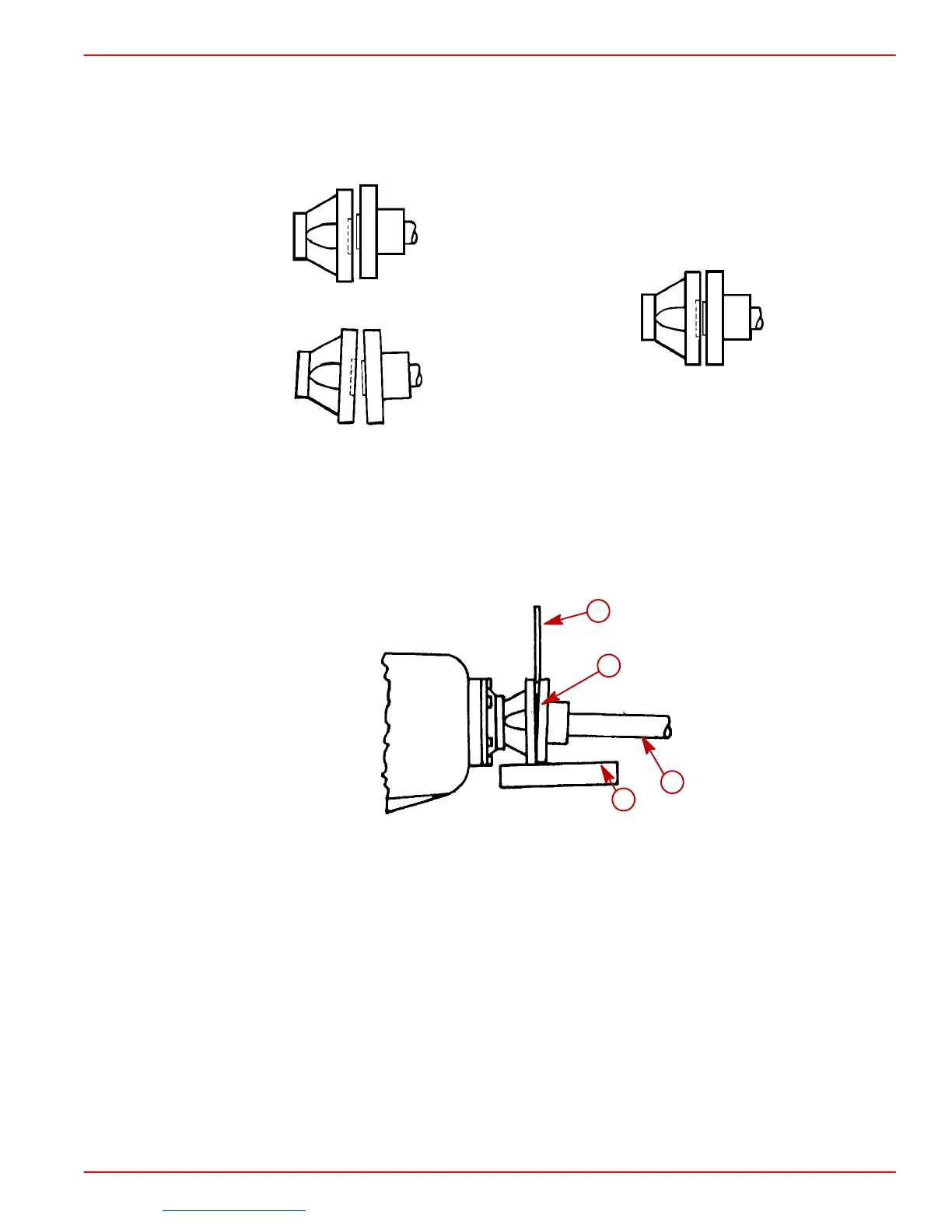

3. Ensure coupling centerlines align by butting propeller shaft coupler against transmis-
sion output flange. Shoulder on propeller shaft coupler should engage recess on trans-
mission output flange face with no resistance.
NOTE: Some propeller shaft couplers may not have a shoulder on mating face. On these
installations, use a straight edge to check centerline alignment.
72597
Wrong Right
IMPORTANT: Remote V-Drive Models: refer to remote V-drive manufacturer’s
instructions for drive shaft (between transmission and remote V-drive) alignment.
4. Check for angular misalignment, by hand holding coupling faces tightly together. Check
for a gap between faces with a .003 in. (0.07 mm) feeler gauge at 90° intervals.
72598
a
c
b
d
a-Feeler Gauge
b-Transmission Coupling
c-Propeller Shaft
d-Straight Edge
