MULTI-PORT FUEL INJECTION DISASSEMBLY AND REASSEMBLY SERVICE MANUAL NUMBER 23

Page 5C-24 90-861326--1 MARCH 1999

Knock Sensor (KS) Module

NOTICE

Refer to “Precautions” in this section, BEFORE proceeding.

REMOVAL

1. Remove Knock Sensor from electrical bracket.

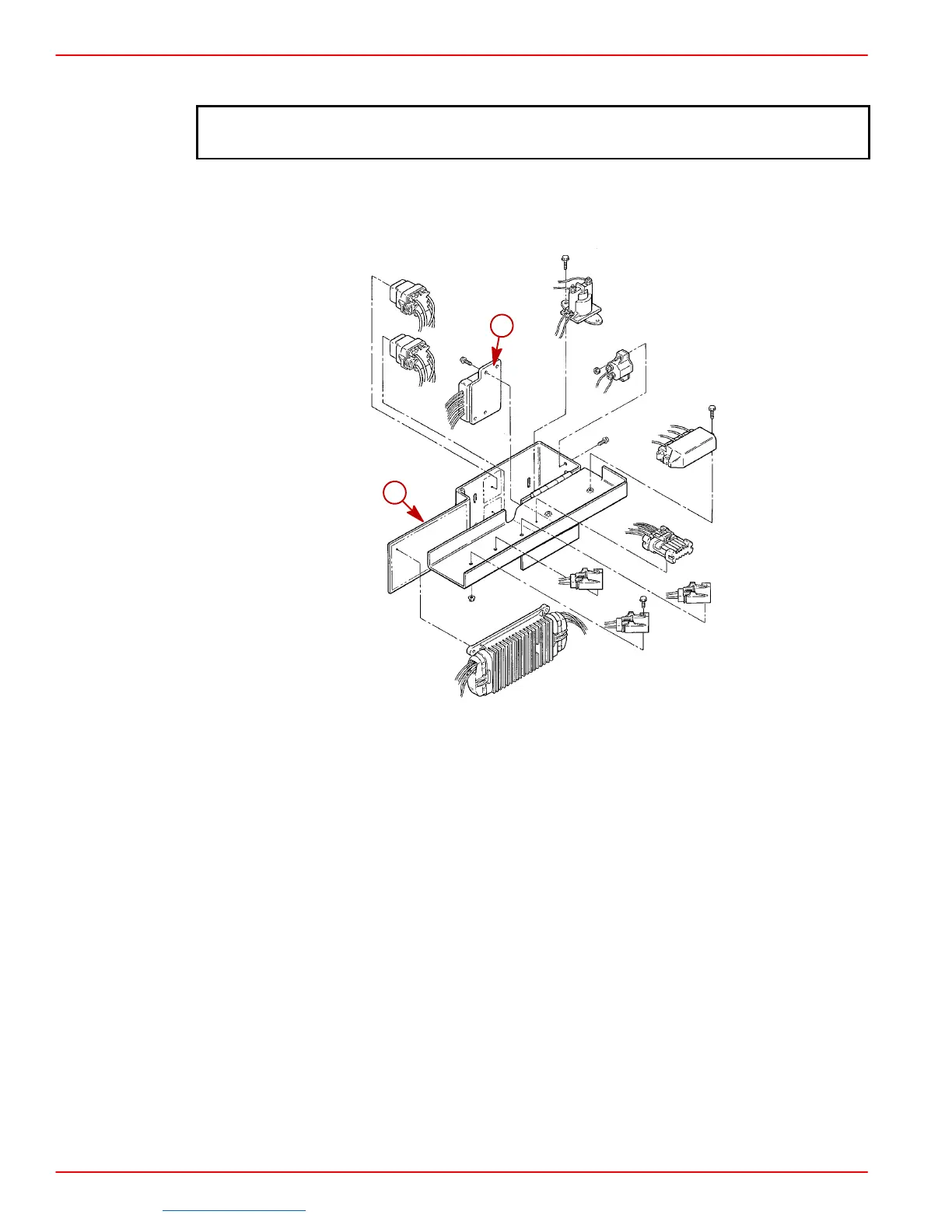

72801

Typical

a-Electrical Bracket

b-Knock Sensor (KS) Module

2. Disconnect electrical connector at Knock Sensor (KS) module.

CLEANING AND INSPECTION

1. Clean the external surfaces of the KS module with a dry cloth.

2. Inspect surfaces of KS module for evidence of damage.
