MIE MODELS - HURTH TRANSMISSION SERVICE MANUAL NUMBER 23
Page 2D-22 90-861326--1 MARCH 1999
12. Reattach locknut and washer to cable barrel stud. Tighten until contacts. Tighten
securely, but DO NOT OVERTIGHTEN.
NOTE: To change cable approach direction on single or dual station installations, only the
spacers/bushings have to be switched to the opposite stud (the studs are identical).
73589
71210
b
c
d
e
e
b
f
a
g
h

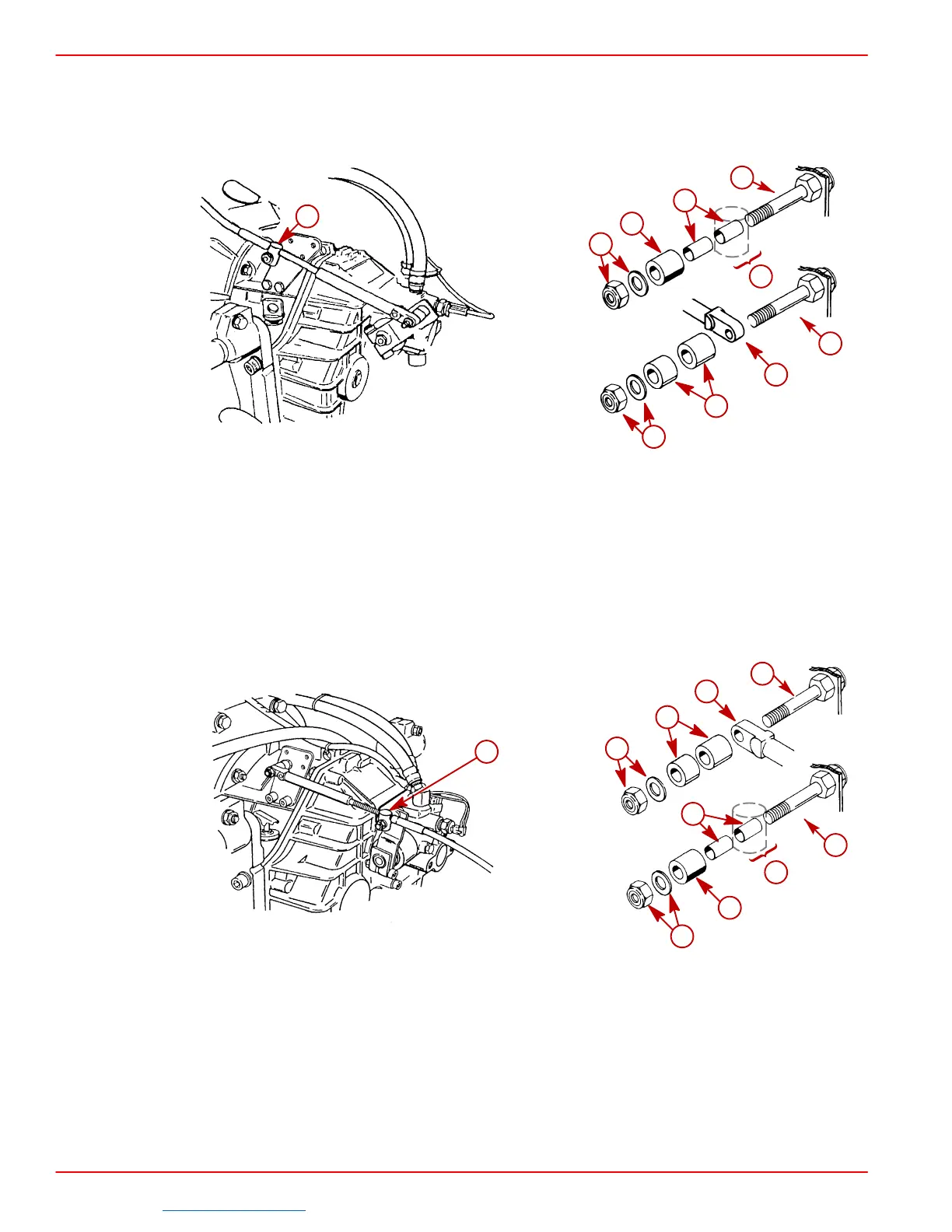

Typical Single Cable - Forward Entry
a-Cable End Guide
b-Locknut And Washer
c-Spacer (Fits Over Bushings)
d-Bushings
e-Cable Barrel Location
f-Spacer (Fit Over Stud)
g-Cable Barrel Stud
h-Cable End Guide Stud
73587
50229
h
g
a
f
b
e
c
b
d
e
Typical Single Cable - Rear Entry
a-Cable End Guide
b-Locknut And Washer
c-Spacer (Fits Over Bushings)
d-Bushings
e-Cable Barrel Location
f-Spacer (Fits Over Stud)
g-Cable End Guide Stud
h-Cable Barrel Stud
