VELVET DRIVE 5000V V-DRIVE TRANSMISSION SERVICE MANUAL NUMBER 23
Page 8C-2 90-861326--1 MARCH 1999
Identification
The transmission identification plate is located on the top left side of the transmission. Refer
to charts following to determine engine and transmission combinations.
72839
a
b
c
d

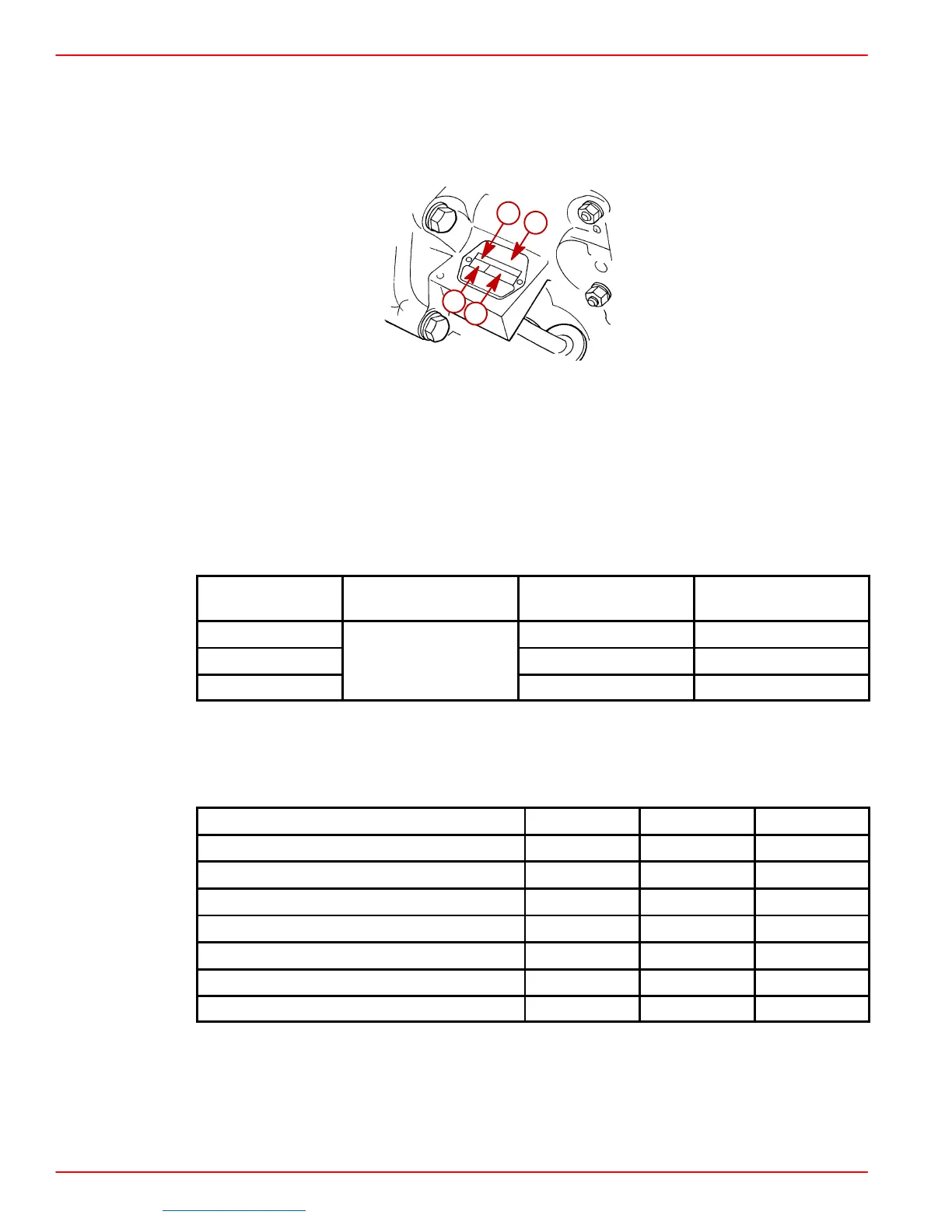

Transmission Identification Plate
a-Model Number
b-Ratio (In Forward Gear)
c-Serial Number
d-Identification Plate Model Color Code
Transmission Ratios and Part Numbers
Ratio in For-
ward Gear
1
Identification Plate
Color Code
Velvet Drive Model
Number
Mercury Marine
Part Number
1.5:1 20-02-003 807481A5
2:1 Blue 20-02-004 807481A6
2.5:1 20-02-005 807481A7
1
This ratio is shown on identification plate. Ratio may be rounded off in some cases.
Torque Specifications
DESCRIPTION Lb. In. Lb. Ft. N·m
Drain Plug (Bushing) 25 34
Fluid Hose to Bushing 25 34
Pump Housing to Adapter 17-22 23-29
Rear Mounts to Transmission 45 61
Shift Lever to Valve 8-11 11-15
Transmission to Flywheel Housing 50 68
Neutral Start Switch 8-11 11-14
