WALTER V-DRIVE TRANSMISSION

SERVICE MANUAL NUMBER 23

90-861326--1 MARCH 1999 Page 8E-5

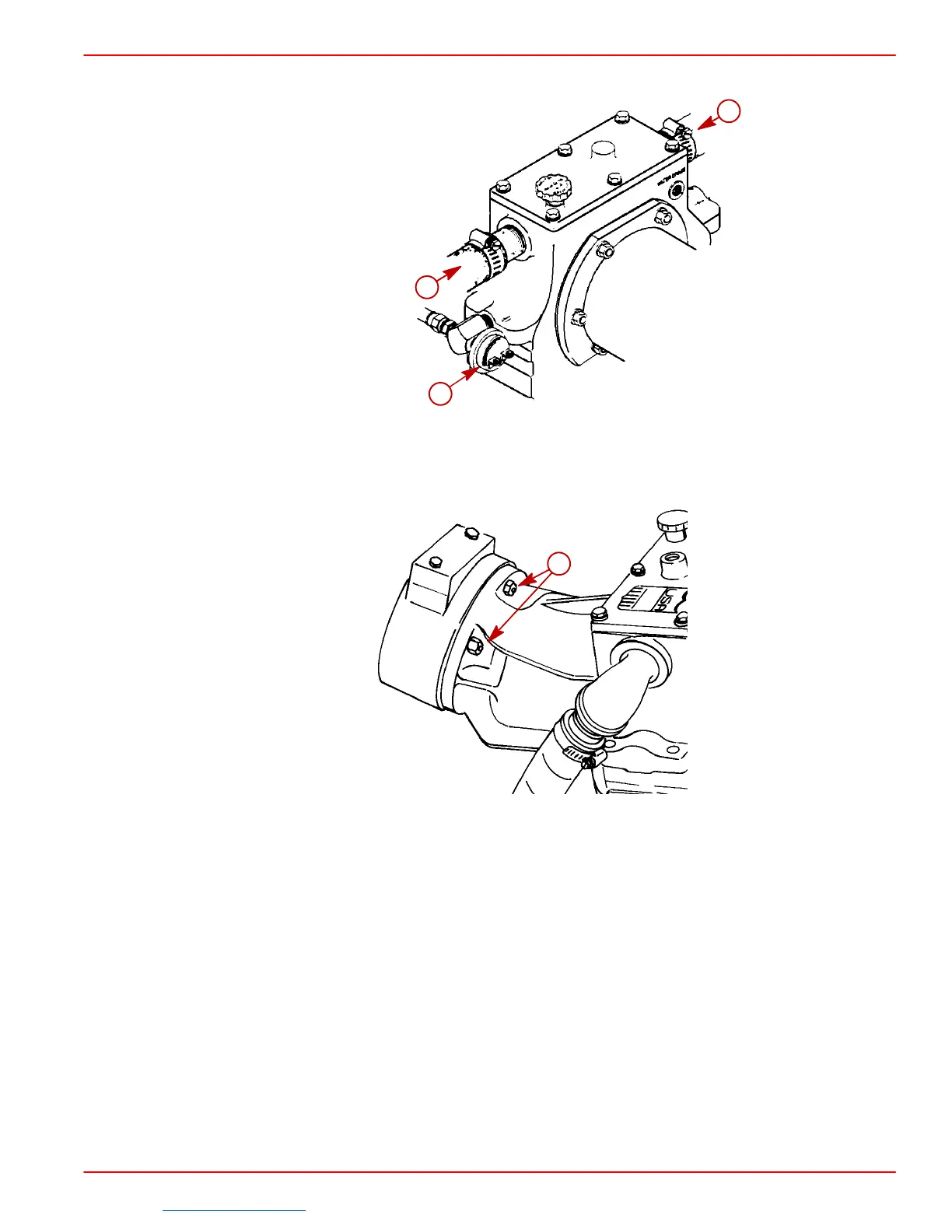

5. Disconnect the wires to the oil pressure switch.

75647

a-Oil Pressure Switch

b-Water Hoses

6. Remove nuts from the adapter housing.

75191

a-Nuts (6)

7. Remove the Walter V-Drive transmission from the adapter housing.

Downloaded from https://needmanual.com/!
