Mercury OptiMax 250 Manual

DIRECT FUEL INJECTION
Page 3B-24
90-888438 JUNE 2002

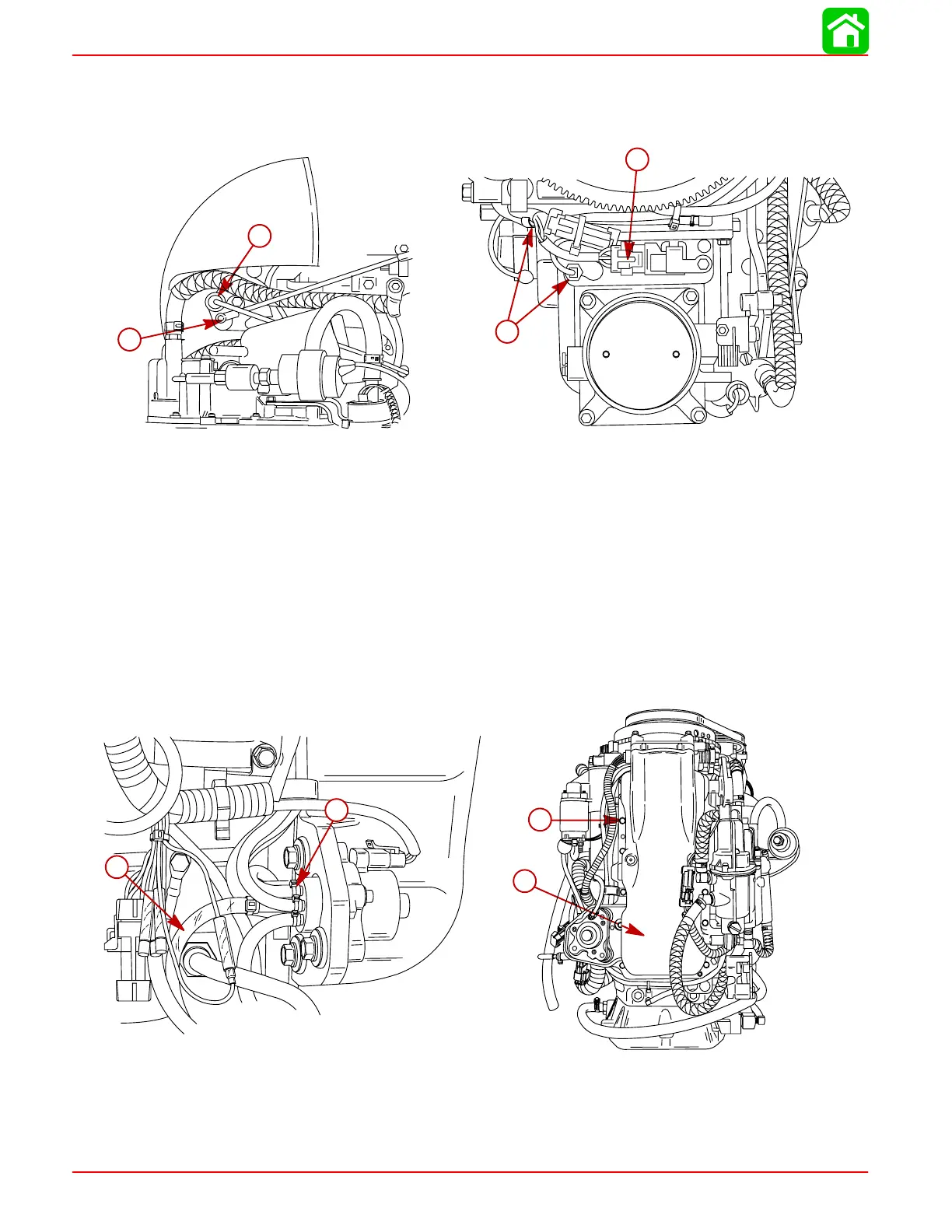

11. Disconnect throttle cam link rod and the Throttle Position Sensor link rod.
12. Disconnect MAP sensor and temperature sensor from air management assembly.
b
d
a
c
a-Throttle Cam Link Rod
b-Throttle Position Sensor Link Rod
c-MAP Sensor
d-Temperature Sensor
13. Disconnect oil outlet hoses from oil pump.
14. Remove and plug oil inlet hose to oil pump.
15. Remove 12 bolts securing air management assembly to crankcase and remove as-
sembly.
c
d
59409
a
b
a-Oil Outlet Hoses
b-Oil Inlet Hose
c-Air Plenum
d-Bolts (12 each)
