Mercury OptiMax 250 Manual

DIRECT FUEL INJECTION
Page 3B-25
90-888438 JUNE 2002

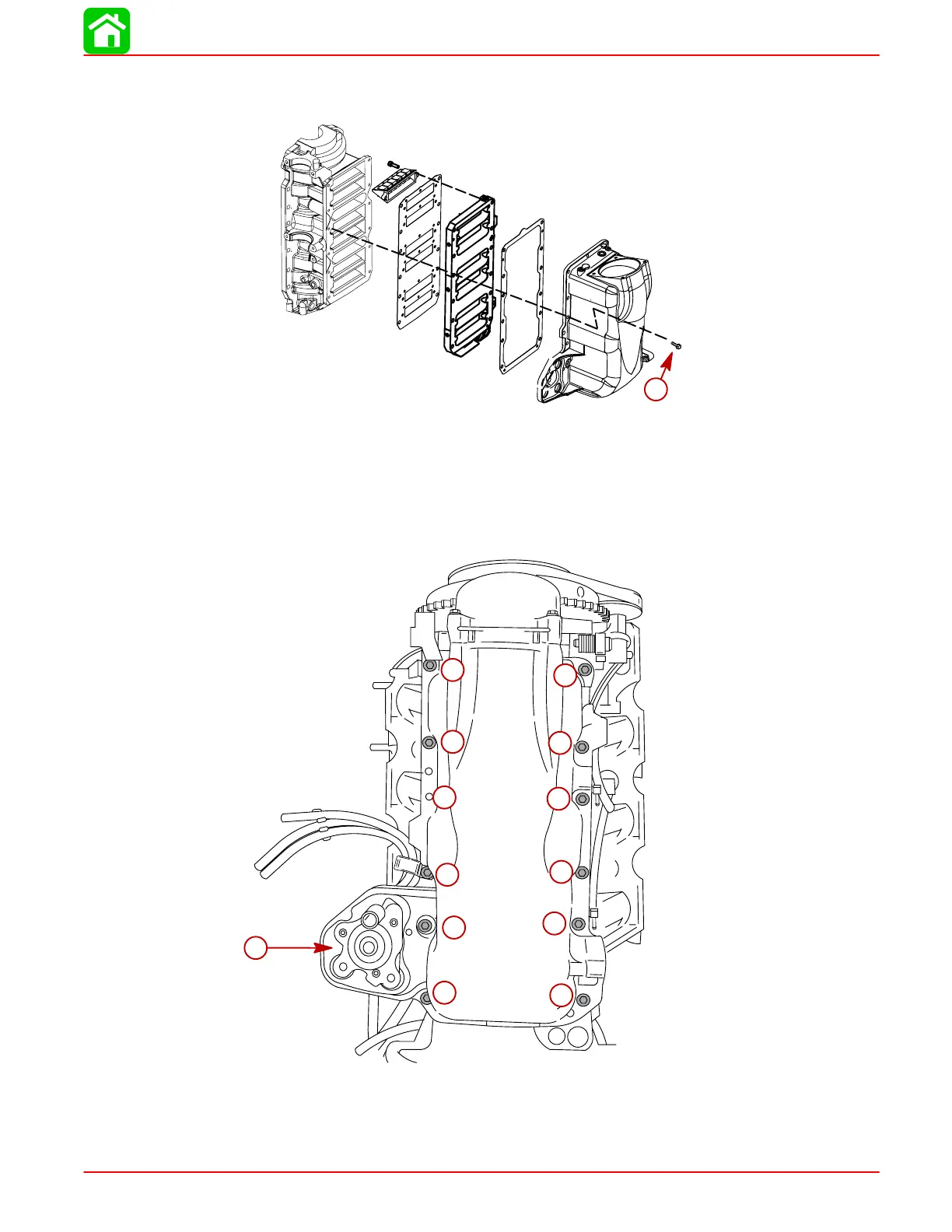

Reed Block Assembly Removal
1. Remove 12 screws securing air plenum to crankcase cover.
a
a-Screws (12 each) M6x40
Reed Block Assembly Installation
1. Secure oil pump to air plenum with 3 bolts. Torque bolts to 140 lb. in. (16 Nm).
2. Secure air plenum/reed block assembly to crankcase cover with 12 screws. Torque
screws in appropriate torque sequence to 120 lb.in. (13.5 Nm).
57997
a
5
6
7
8
9
10
11
1
2
3
4
12
a-Oil Pump
