DIRECT FUEL INJECTION
Page 3B-38
90-888438 JUNE 2002
FUEL INJECTOR REMOVAL

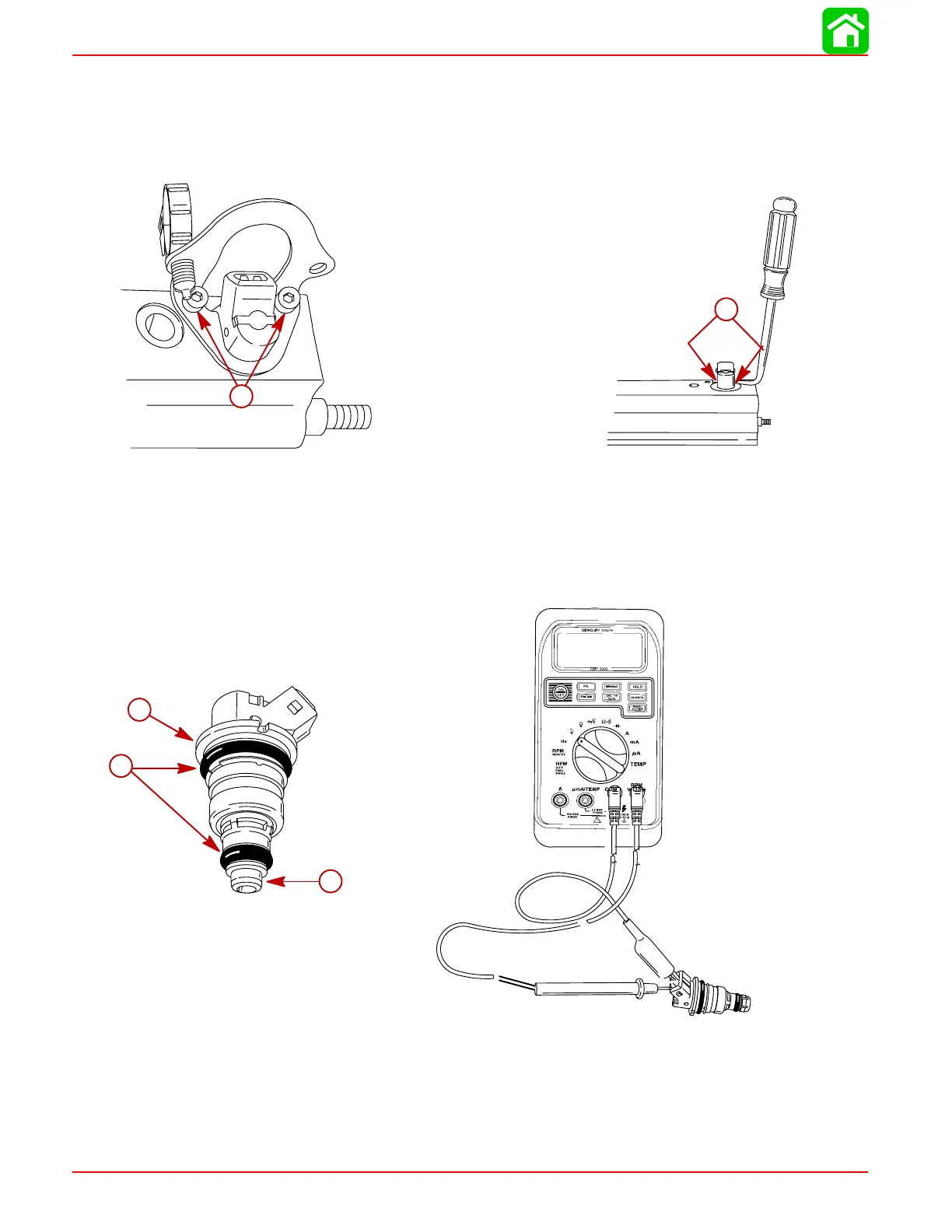

1. Remove 2 screws securing injector.
NOTE: Use a cotter pin extractor tool in pry holes to remove injectors.
2. Gently pry up on injector to loosen o-ring adhesion and remove injector.
57967
b
57970
a
a-Screws
b-Pry Holes
3. Inspect fuel injector orifices for foreign debris; o-rings for cuts or abraisions and plastic
components for heat damage. Replace components as required.
4. An ohm test of the fuel injector may be made by connecting test leads to injector termi-
nals. Ohm reading should be 1.8 ± 0.1 ohm.
56002
56124
a
b
c
a
b
c
a-Fuel Injector
b-Fuel Nozzle
c-O-Rings
