OUTBOARD INSTALLATION
105
SMARTCRAFT HARNESS CONNECTION
If
SmartCraft
gauges
are
being
used
with
the
outboard,
route the
SmartCraft wiring harness
through the grommet
and connect it
to
the SmartCraft harness connector on the engine.

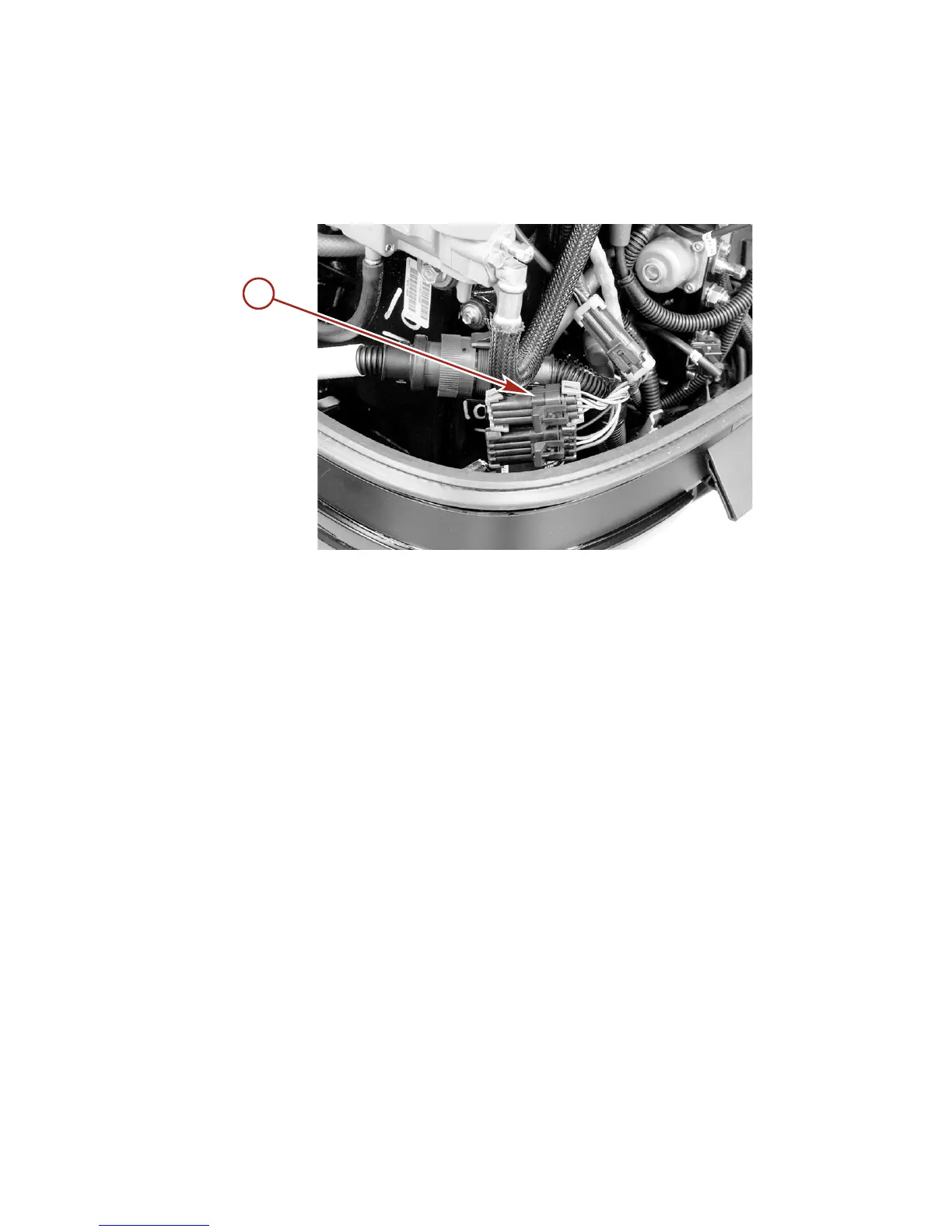

a
23700
a -
SmartCraft harness connector
WATER PRESSURE TUBE CONNECTION
If
a
water
connection
to
the
engine
is
required
for
a
water
pressure
gauge, make the connection as follows:
112
114
