Mercury Optimax User Manual

OUTBOARD INSTALLATION
106

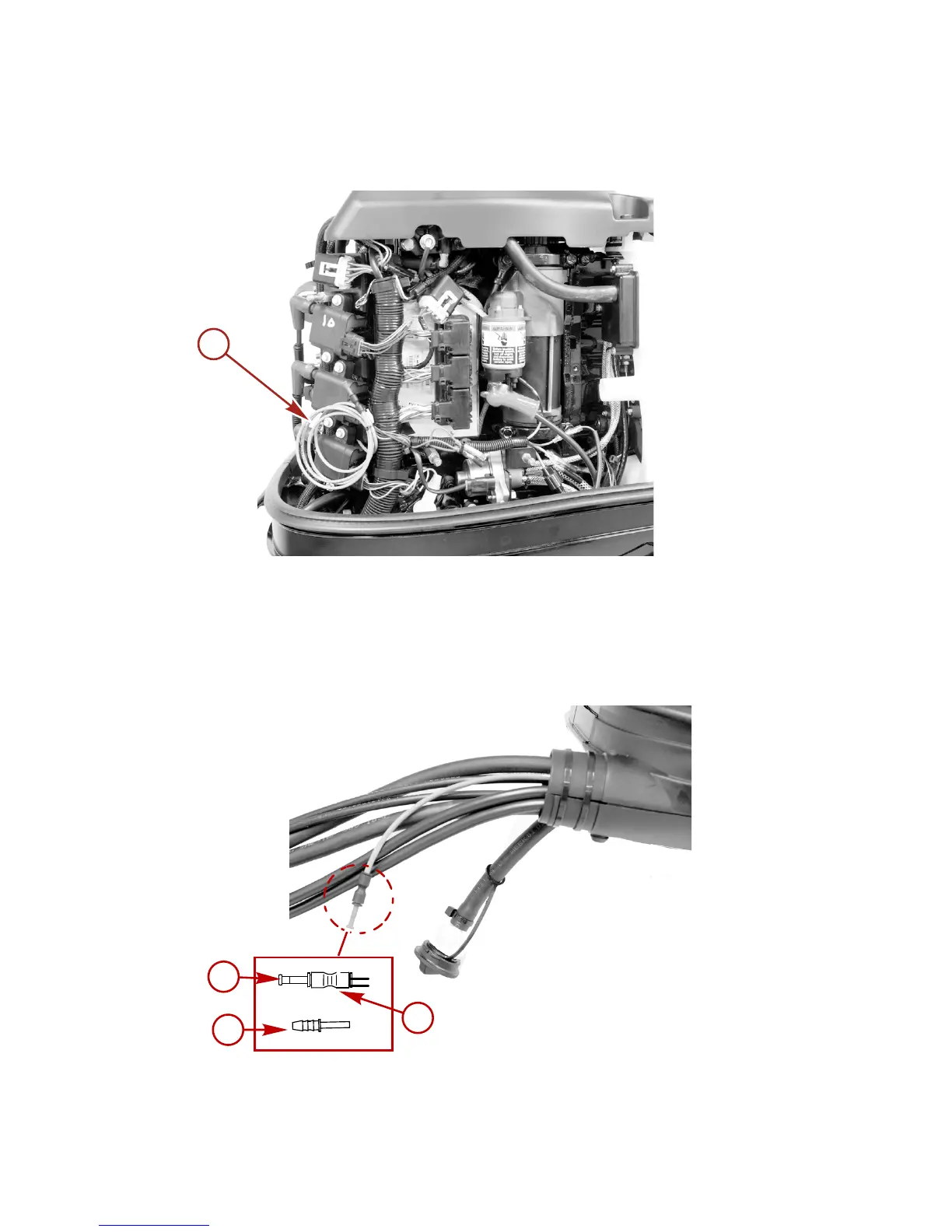

1. The water pressure tube is coiled and attached on the side of
the engine. Cut the cable tie and route the water pressure tube
out through the grommet.
a
23702
a - Water pressure tube
2. Remove the plug from the coupler and make the connection.
A barb fitting (22‑859731) can be installed for larger diameter
hose connection.
c
a
b
23708
a - Plug
b - Coupler
c - Barb fitting (22‑859731)

Mercury Optimax Specifications

General

Starting	Electric
Engine Type	2-Stroke
Fuel System	Direct Fuel Injection (DFI)
Displacement	Varies by model (e.g., 1.5L, 1.7L, 2.5L, 3.0L)
Shaft Length	20", 25"
Fuel Tank Capacity	External
Cylinders	Varies by model (e.g., 3, 4, 6 cylinders)
