22
SPDIF1: SPDIF out header
This is an optional header that provides an S/PDIF (Sony/Philips Digital Inter-
face) output to digital multimedia device through optical fiber or coaxial
connector.
Pin Signal Name
1 SPDIF Out
2 VCC
3 KEY
4 GND
C
C
o
o
n
n
n
n
e
e
c
c
t
t
i
i
n
n
g
g
I
I
/
/
O
O
D
D
e
e
v
v
i
i
c
c
e
e
s
s

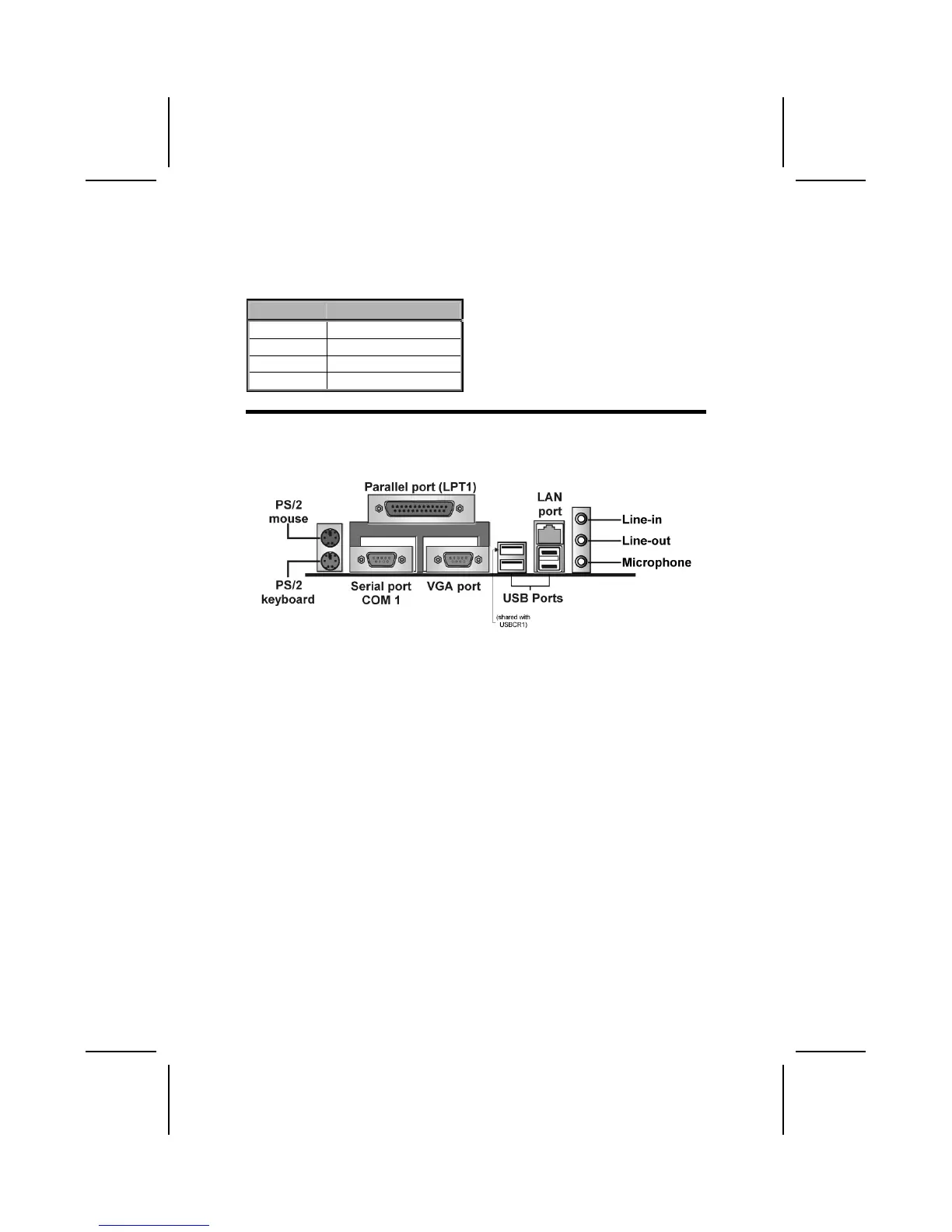

The backplane of the motherboard has the following I/O ports:
PS/2 Mouse
Use the upper PS/2 port to connect a PS/2 pointing
device.
PS/2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.
LPT1 Use LPT1 to connect printers or other parallel communi-
cations devices.
COM1 Use the COM ports to connect serial devices such as
mice or fax/modems. COM1 is identified by the system
as COM1/3.
VGA Port
Connect your monitor to the VGA port.
Audio Ports
Use the three audio ports to connect audio devices. The
first jack is for stereo line-in signal. The second jack is
for stereo line-out signal. The third jack is for micro-
phone.
LAN Port
Connect an RJ-45 jack to the LAN port to connect your
computer to the Network.
USB Ports
Use the USB ports to connect USB devices.
This concludes Chapter 2. The next chapter covers the BIOS.
