Mercury SC1000 User Manual

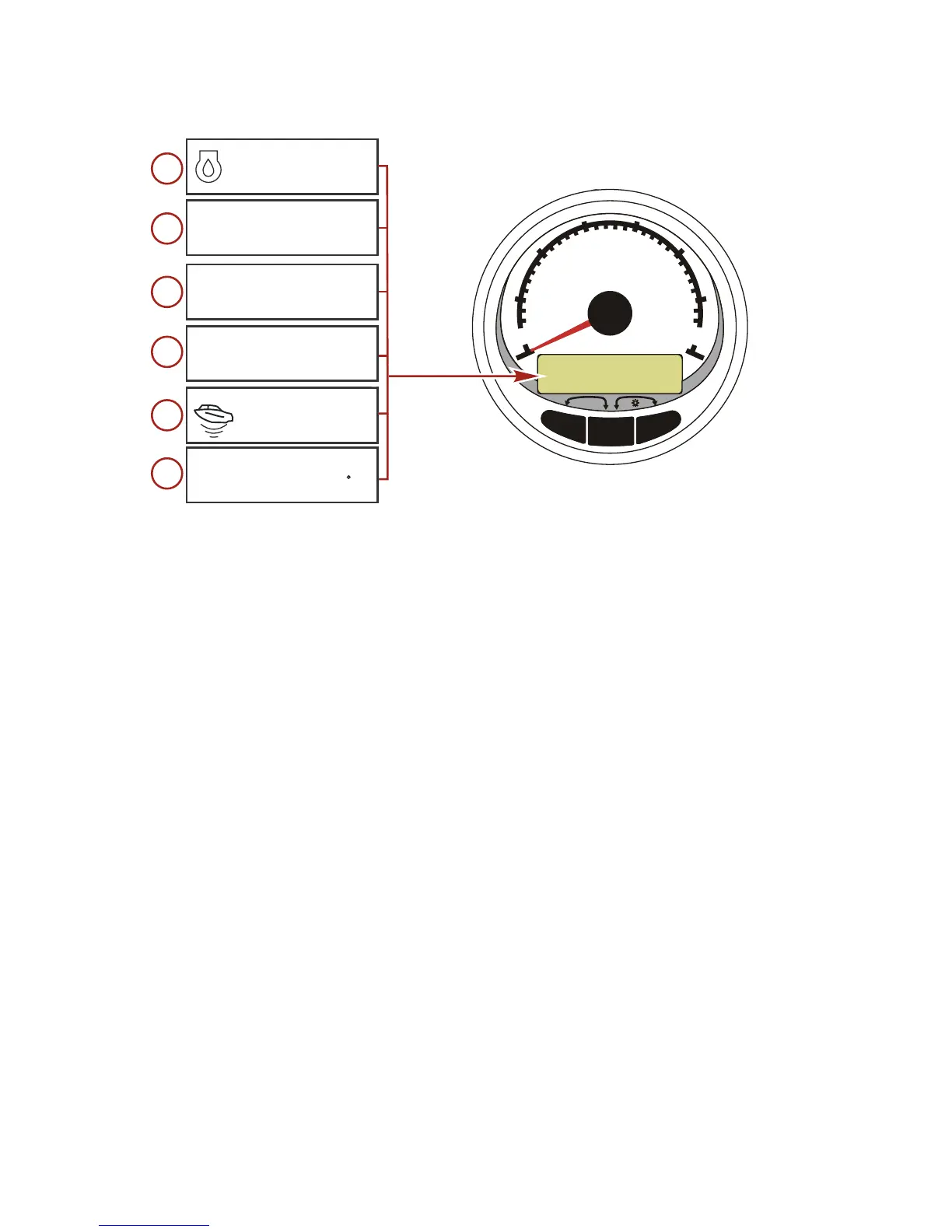

SYSTEM TACHOMETER DISPLAY SCREENS
14
NOTE: Not all screens may apply to your engine type.
MODE
RPM x 1000
0
2
3
4
5
6
7
1
RESET
TROLL
+
TROLL
-
23511
OIL
PSI
12.5
VOLTS HOURS
12.2
1.5
RPM
3500
GPH USED
12.5
4.5
FUEL
SPEED SEA TEMP
MPH
45 45
F
7
8
9
10
11
12
35
FT
7. Oil Pressure: Displays the engine oil pressure in "PSI" or
"BAR".
8. Battery Voltage: Displays the voltage level (condition) of the
battery. Also records the running time of the engine.
9. Fuel Flow: Displays the engine fuel use in gallons per hour or
liters per hour.
10.Digital Tachometer: Displays the engine speed in revolutions
per minute (RPM).
11.Water Depth: Displays the depth of water under the
transducer if connected. The water depth screen can be
turned on or off in CAL 1 Calibration. You can set an alarm to
trigger whenever the boat moves into water shallower than the
alarm level. Refer to CAL 2 Calibration for water depth alarm
and offset settings.
NOTE: A depth transducer (purchased separately) must be
connected to the system in order for this screen to operate.
12.Speed/Temp:Displays a split screen of water temperature
and vessel speed.
NOTE: A speed input sensor must be installed (purchased
separately).
