Section 1 - Getting Started

Page 12 90-8M0109374 eng JUNE 2016

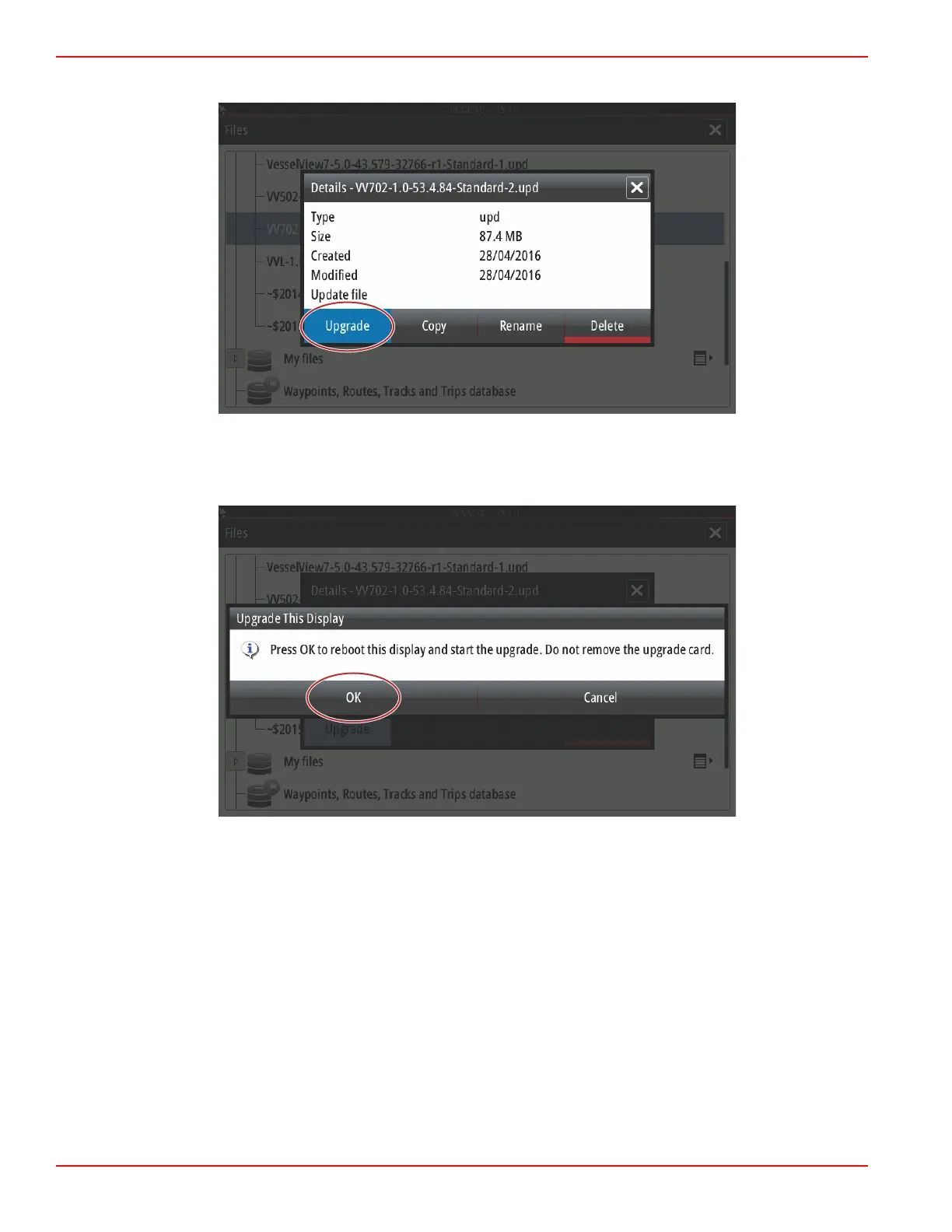

7. Select the Upgrade option in the Details window.

61456

8. Select OK in the Upgrade This Display window. VesselView will display a progress bar, showing the upgrade progress. Do

not power off the display during this step in the upgrade. VesselView will briefly display a Restarting screen. Following the

rebooting process, the VesselView will be ready for operation with the upgraded software.

61458
