Section 4 - Setup and Calibrations
90-8M0109374 eng JUNE 2016 Page 73

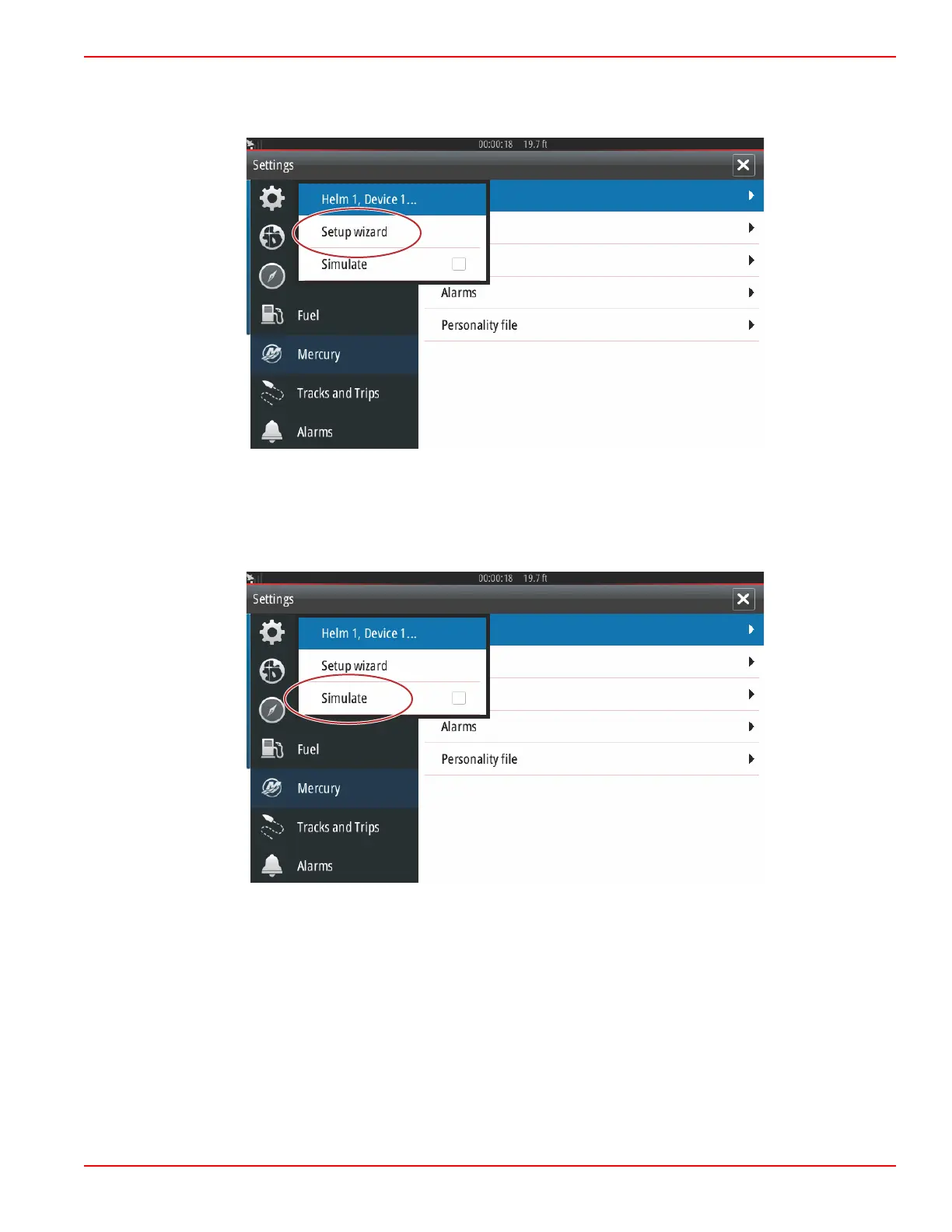

Setup Wizard
Setup wizard is covered in Section 2. Changes to the Setup wizard can be made at any time by accessing the program through
this menu.
Simulate
Simulate is used at a dealer level, to show consumers the display characteristics of the display. When the unit is in Simulate
mode, the data shown on the screen should not be used as navigation information. All data shown during Simulate is randomly
generated.
Vessel Settings
Tabs
The Settings menu can be found by swiping downward from off the screen onto the upper portion of the screen. This will bring
up the System Controls window. Select the Settings tile. A menu will appear on the left portion of the screen. Select Mercury
from the list of options. The window of VesselView settings controlled by the Mercury side of the MFD will appear.
