Section 1 - Getting Started

90-8M0109374 eng JUNE 2016 Page 15

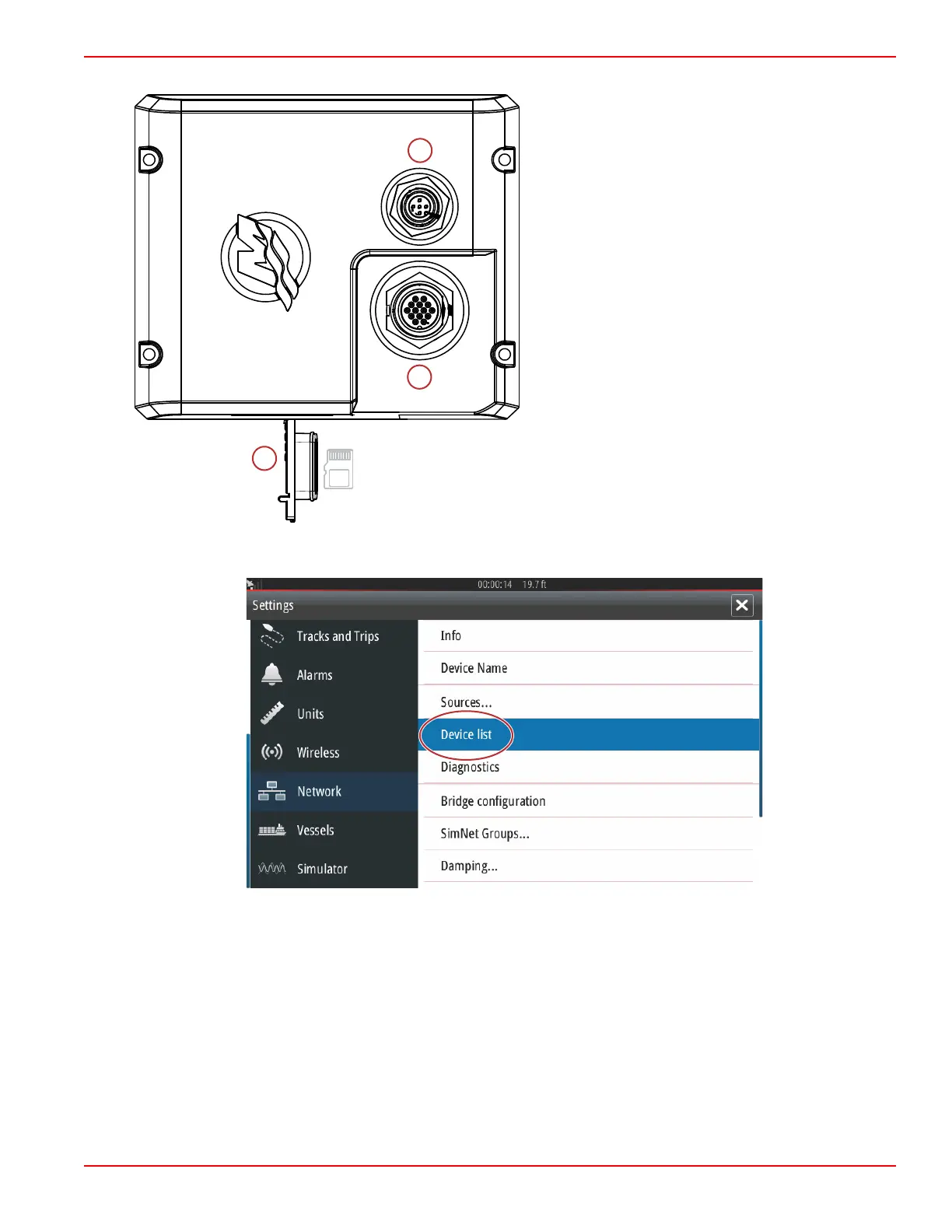

2. Insert the micro SD card into the VesselView Link Module micro SD card port all the way until it clicks and stays in place.

a - NMEA 2K connection

b - SmartCraft/Power connection

c - Micro SD card port

3. Touch the HOME tab at the top of the screen to bring up the Home screen. Navigate to the Settings option in the left‑hand

window. Select the Network Option. Select Device list.

61459

61828

Table of Contents4
Section 1 - Getting Started6
Declaration of Conformity7
- Vesselview 5027
- Test Reports7
- Notified Body Involved7
- Vesselview 7028
- Test Reports8
- Notified Body Involved8
Vesselview Overview8
- Vesselview Screen Display Locations and Descriptions9
- Vesselview 502 Front Controls11
- Vesselview 502 Front Control Operations11
- Vesselview 502 Rear Panel Connections11
- Vesselview 702 Front Controls12
- Vesselview 702 Front Control Operations12
- Vesselview 702 Rear Panel Connections13
Vesselview Link Overview13
- Vesselview Link Connections14
How to Update Your Vesselview Software14
- Wi-Fi Automatic Query14
- Using the Micro SD Card15
- Obtaining the Latest Software18
Safe Boating Screen14
How to Update Your Vesselview Link Module Software19
Creating Screen Captures23
Non-Mercury Marine Menus28
Touch Screen Calibration29
Start-Up31
Engine Scheduled Maintenance33
Device Maintenance35
- Display Screen Cleaning35
- Media Port Cleaning35
  - Section 2 - Initial Screens and Setup Wizard36
Splash Screen37
Vesselview Start-Up Advisory Screen37
Setup Wizard38
- Import Configuration40
- Engine Setup40
- Display Setup44
- Device Setup45
- Units Setup45
- Tank Configuration45
- Speed Setup48
- Finishing Setup Wizard49
Data Source Setup49
- Data Sources49
Enlarging Data Screens51
Instrument Bar52
- Section 3 - Autopilot Features and Operation58
Economy Mode59
- Eco59
Smart Tow Mode62
- Smart Tow62
  - Features63
  - Disabling Smart Tow66
Cruise Control Mode66
- Cruise Control66
- Activating Cruise Control Mode67
Troll Control Mode69
- Troll Control69
System Settings77
- Navigation to the Settings Menu77
- Helm and Device Locations77
- Setup Wizard78
- Simulate78
Vessel Settings78
- Tabs78
- Tanks81
- Speed82
- Steering86
- Vessel Control87
Engines Settings90
- Engines Shown90
- Engine Model91
- Limits92
- Supported Data93
- ECO Mode94
- Cruise/Smart Tow Type95
- Trim95
Alarms96
Alarms Setting96
Export97
Personality File97
Import98
Warnings-Faults and Alarms101
Shallow Water and Low Fuel Alarms103
