Section 3 - Autopilot Features and Operation

90-8M0109374 eng JUNE 2016 Page 65

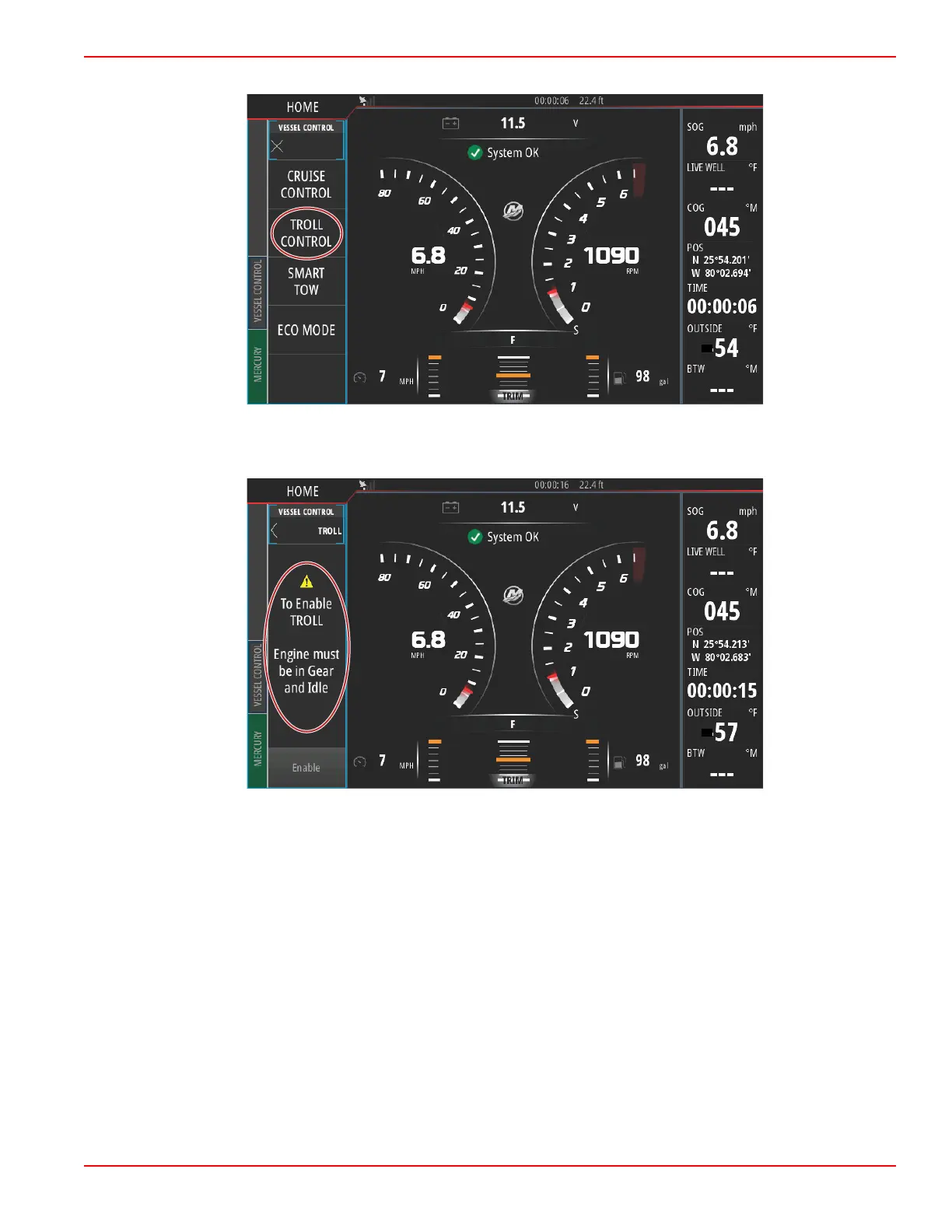

Select the Troll Control tile in the Vessel Control Bar.

61758

The vessel must be in gear and the throttle must be at idle. If the vessel does not meet these conditions, a warning icon and

accompanying text will instruct the operator on how to make Troll Control available.

61759
