VESSELVIEW 703
90-8M0124492 eng MARCH 2017 © 2017 Mercury Marine Page 5 / 6

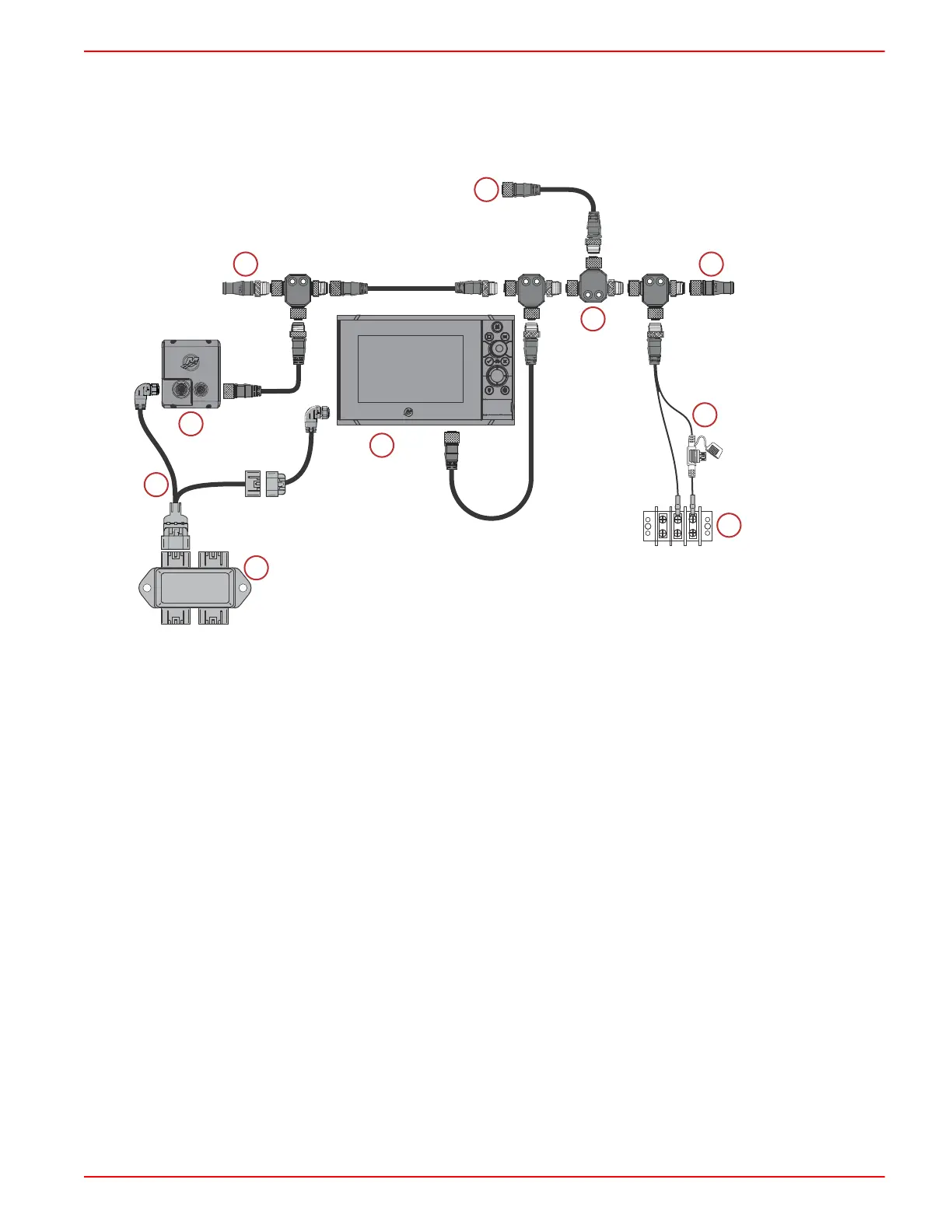

VesselView 703 Connections
IMPORTANT: When replacing a VesselView 702 with a VesselView 703, it is important to know that the 703 has built‑in sonar
and wifi capabilities. If you are upgrading to VesselView 703 from a VesselView 702 display that used an external WIFI‑1
module and/or an external sonar module, it is recommended to use the capability of the 703 and no longer use the external
modules.
a - Optional connection to a chartplotter or multifunction display
b - 120 ohm termination resistor, male
c - 120 ohm termination resistor, female
d - NMEA® 2000 fused power source
e - Power bus
f - NMEA® 2000 T‑connector
g - VesselView 703
h - VesselView Link controller
i - VesselView Link harness
j - Junction box
62800
a
b
c
d
e
f
g
h
i
j
