ISIS User Guide : Appendix III - Expansion Connector Pin-out
Page 50

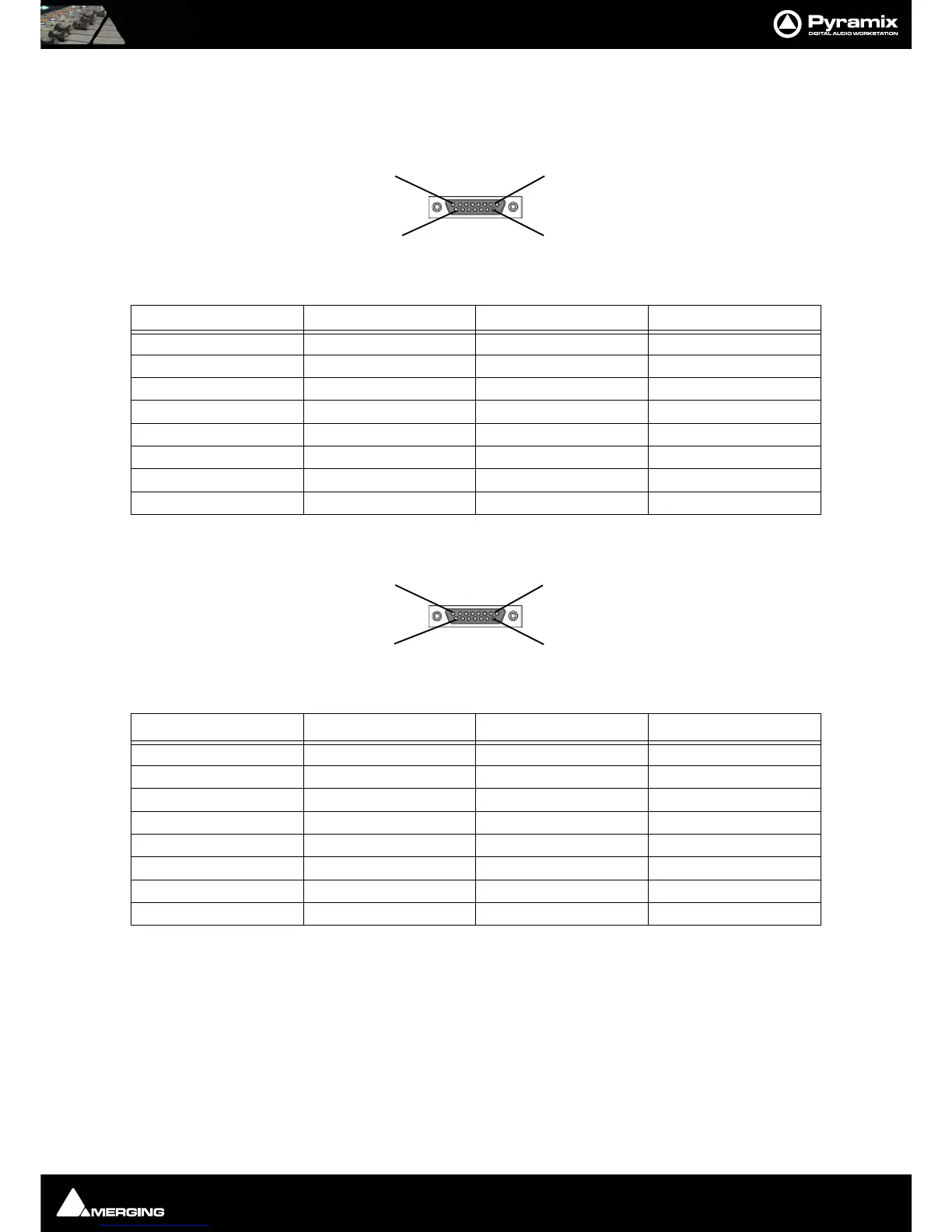

Appendix III - Expansion Connector Pin-out
Main Unit rear panel connector
DB15 Female Connector
Fader Expansion Unit rear panel connector
DB15 Male Connector
Cable Specification
Maximum approved length: 1.5M
Cable Type: ALPHA CABLE, 7-PAIR, 24AWG, SCREENED.
Part number: 5477C-100
Note: Drain wire is connected to Pin 11 and must be insulated with sleeving.
Signal DB-15-F Signal DB-15-F
DC POWER OUT 1 DC POWER OUT 9
DC POWER OUT 2 DC POWER OUT 10
DC POWER OUT 3 GROUND 11
GROUND 4 GROUND 12
GROUND 5 RS232 RX2 13
RS232 TX2 6 GROUND 14
GROUND 7 RS232 RX1 15
RS232 TX1 8
Signal DB-15-M Signal DB-15-M
DC POWER IN 1 DC POWER IN 9
DC POWER IN 2 DCPOWER IN 10
DCPOWER IN 3 GROUND 11
GROUND 4 GROUND 12
GROUND 5 RS232 TX2 13
RS232 RX2 6 GROUND 14
GROUND 7 RS232 TX1 15
RS232 RX1 8
8
15
1
9
1
9
8
15
