• Read the air condi-
tioner manual before
using the air condi-
tioning system.
• Before using the air
conditioning system,
make sure the break-
ers on the AC main
distribution panel are
turned On and that
the system’s seawa-
ter intake and dis-
charge seacocks
are Open.
• The seacock must
remain Open while
the air conditioner is
in use.
• Check the seawater
strainer for debris
before each use of
the air
conditioning system.
• If the strainer needs
to be cleaned out;
follow the directions
in the Seawater Sys-
tems section of
this Manual.
V-BERTH
VENT
FORWARD
HEAD VENT
INTAKE
SEACOCK
AFT HEAD
VENT
AFT BERTH
VENT
SEAWATER
STRAINER
INTAKE PUMP
TO UPPER AIR
CONDITIONERS
SEAWATER
MANIFOLD
SEAWATER
FORWARD AIR
CONDITIONER
AFT BERTH AIR
CONDITIONER
AFT AIR CONDITIONER
CONDENSATION DRAIN
SUMP PUMP BOX
SUMP PUMP
BOX
FORWARD AIR
CONDITIONER
CONDENSATION
DRAIN
OVERBOARD
DISCHARGE
THRU-HULL
OVERBOARD
DISCHARGE
THRU-HULL

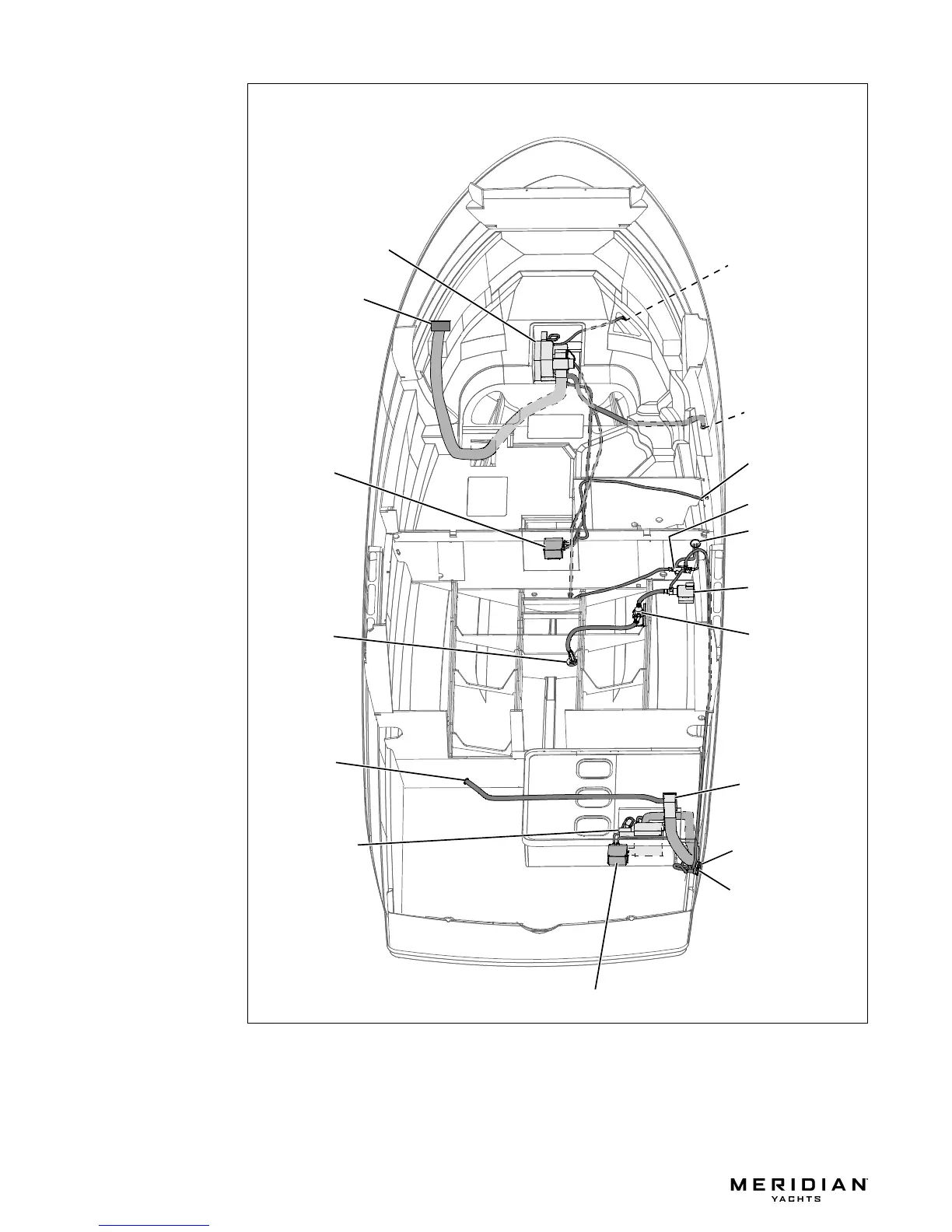

FORWARD & AFT AIR CONDITIONING SYSTEMS (IF EQUIPPED)
