Meridian 459 - Battery System

459 Motoryacht • Owner’s Manual Chapter 11: Electrical System
85

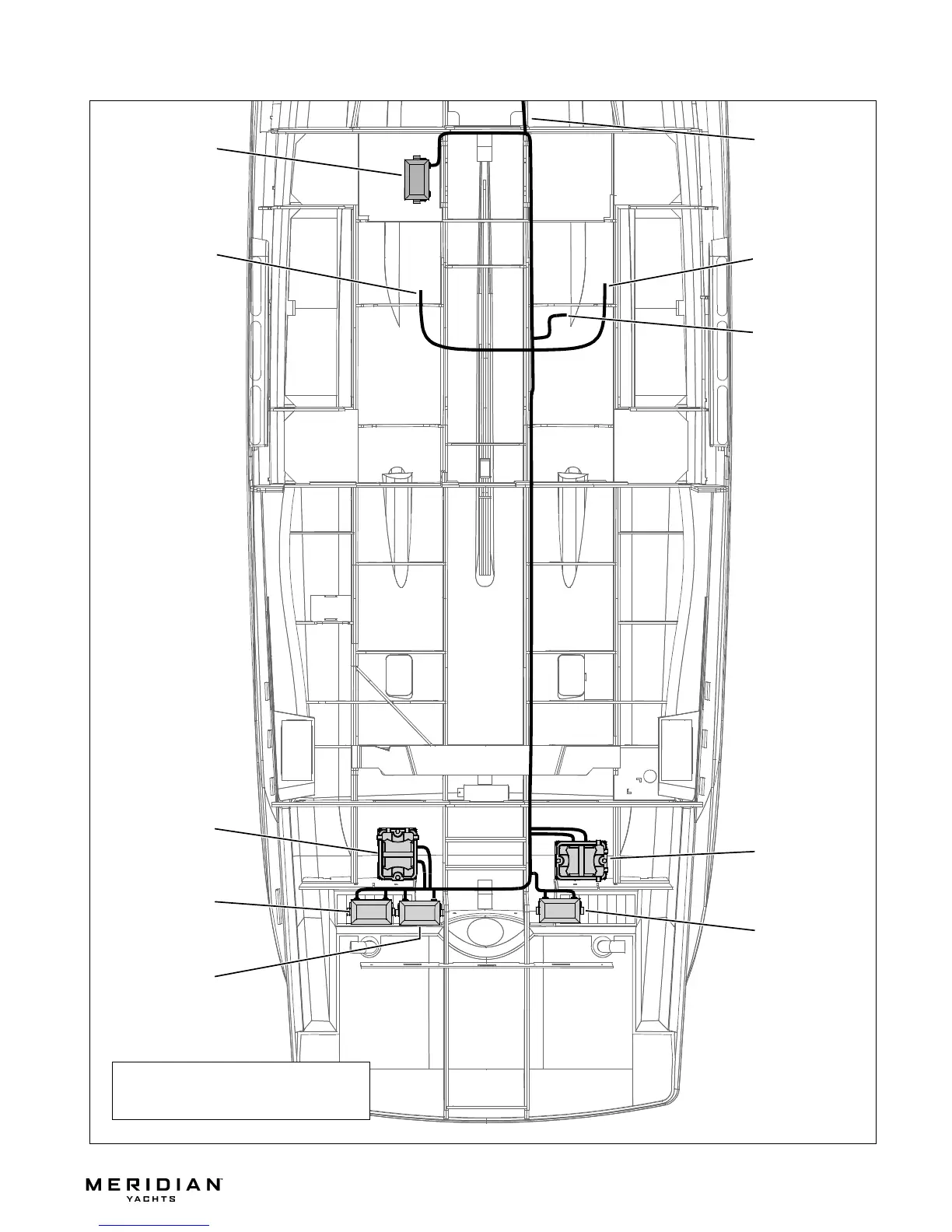

Battery System
INVERTER
BATTERY
STARBOARD
ENGINE
BATTERY
HOUSE
BATTERY
STERN THRUSTER
BATTERY
PORT ENGINE
BATTERY
BOW THRUSTER
BATTERY
PANEL
(IF EQUIPPED)
BOW THRUSTER
BATTERY
STARBOARD
ENGINE STARTER
PORT ENGINE
STARTER
NOTES:
POSITIVE BATTERY CABLES ARE RED
NEGATIVE BATTERY CABLES ARE YELLOW
