459 Motoryacht • Owner’s Manual
Chapter 10: Heating & Air Conditioning
Air Conditioning System (If Equipped)
CARBON MONOXIDE POISONING HAZARD!
Dangerous carbon monoxide gas (CO) can be brought into the yacht through
the air conditioning system.
DANGER!
!
SYSTEM DAMAGE HAZARD!
The air conditioning system’s seawater intake and discharge seacocks must be Opened before
turning On the air conditioner and must stay Open during use.
CAUTION
!
COMMAND
BRIDGE VENTS
PORT AIR
CONDITIONER
STARBOARD AIR
CONDITIONER
SEAWATER INTAKE
SEACOCK
SEA STRAINER
SEAWATER
MANIFOLD
TO SALON
OVERHEAD VENT
TO SALON
OVERHEAD VENT
TO V-BERTH AIR
CONDITIONER
TO AFT BERTH AIR
CONDITIONER
INTAKE
PUMP
CONDENSATION
DRAIN

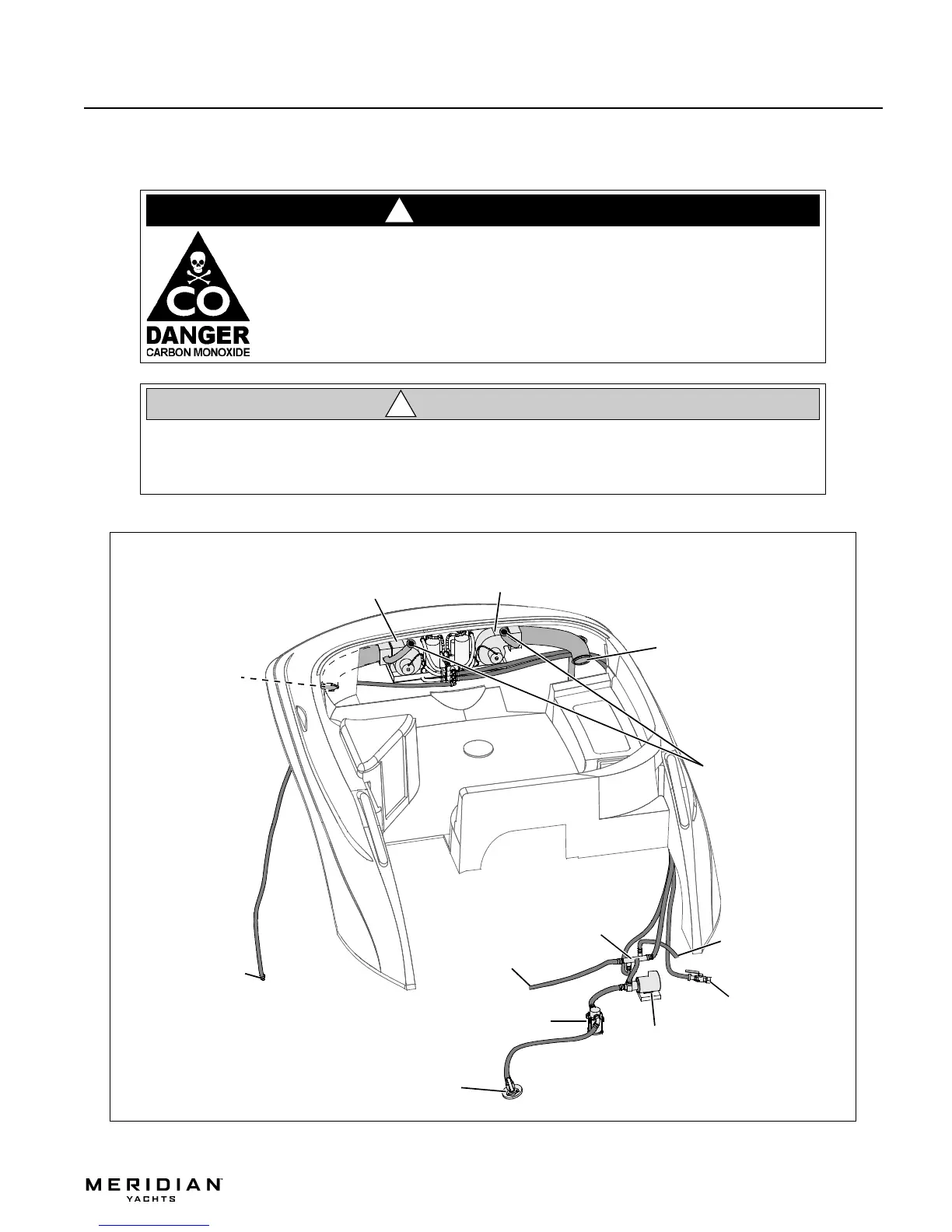

UPPER AIR CONDITIONING SYSTEM (IF EQUIPPED)
UPPER AIR
CONDITIONERS
OVERBOARD
DISCHARGE
THRU-HULL
