Meridian 459 - 12-Volt DC Hull Electrical System

459 Motoryacht • Owner’s Manual Chapter 11: Electrical System
83

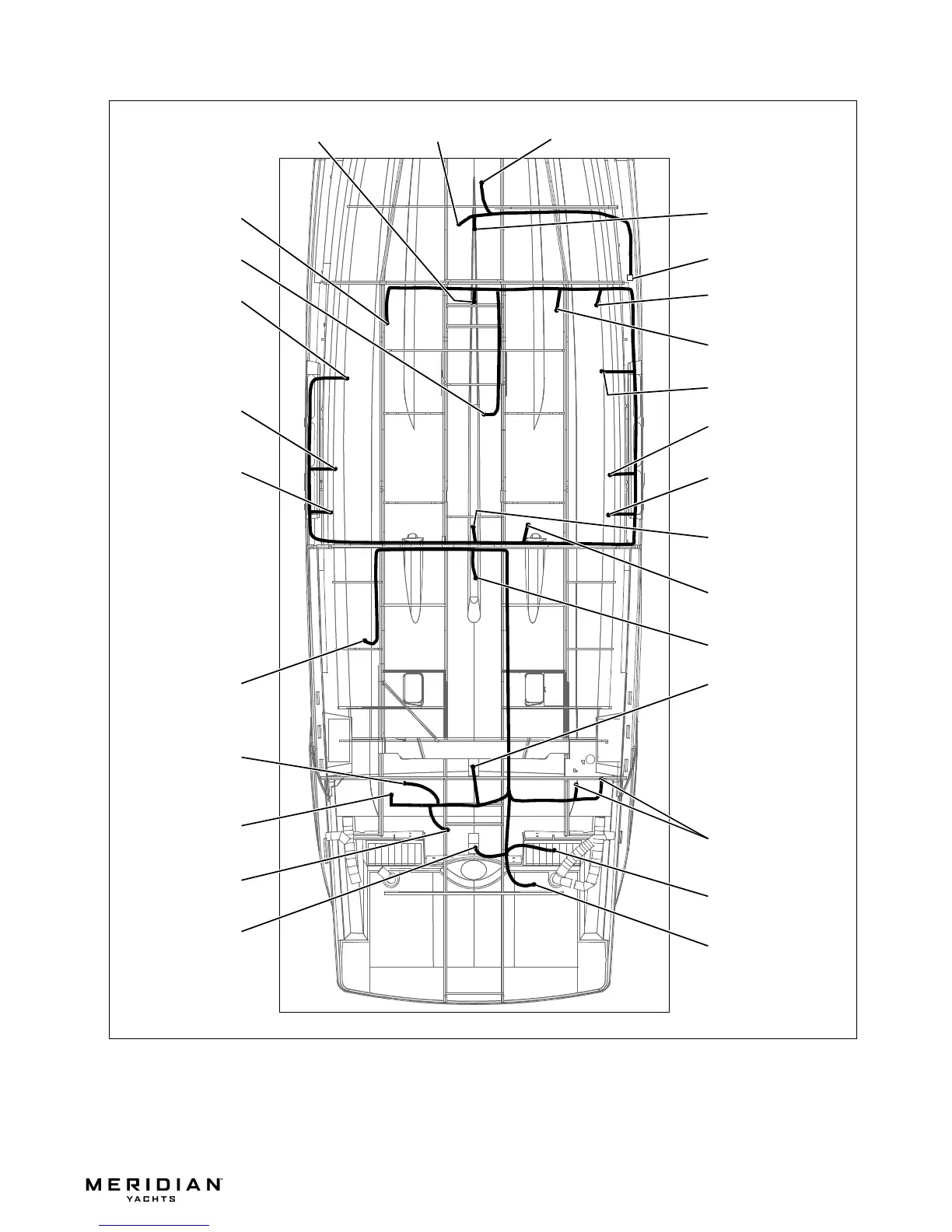

12-Volt DC Hull Electrical System
SEAWATER INTAKE
PUMP
(IF EQUIPPED)
HARNESS PLUG
FORWARD HEAD
FUEL FILTER
GROUND
MACERATOR
AUTOPILOT
(IF EQUIPPED)
BILGE PUMP
FRESHWATER
PUMP
BILGE PUMP
HOLDING TANK
RUDDER INDICATOR
(IF EQUIPPED)
TRIM TAB
PUMP
FUEL FILTER
BILGE PUMP
BILGE PUMP
BILGE PUMP
GENERATOR
LAZARETTE BLOWER
AFT HEAD
SUMP PUMP
PORT ENGINE
ROOM BLOWER
PORT FUEL
TANK SENDER
AFT HEAD
VACUFLUSH PUMP
FORWARD HEAD
SUMP PUMP
VACUFLUSH PUMP
FIXED FIRE
EXTINGUISHER
(IF EQUIPPED)
STARBOARD FUEL
TANK SENDER
STARBOARD ENGINE
ROOM BLOWER
FIXED FIRE
EXTINGUISHER
(IF EQUIPPED)
