Meridian 562V.2 - Connecting the Multimedia Controller

Setting up the multimedia controller
18
OFF
MERIDIAN COMMS
ON
RS232
OPTICAL INPUT
DIGITAL OUTPUT
MAIN
TRIGGERS
DIGITAL INPUT
TAPED5DVD/D4TAPE 2/D2
CD/D1 CDR/D3
MAIN
ANALOGUE TAPE OUTPUT
VCR1/A7 VCR2/A6 TAPE1/A5 TV/A4 RADIO/A3 CD/A2 LP/A1
ANALOGUE INPUT
O2 LD/O1
S OUTPUT
VCR 2 VCR 1 MAIN
S INPUT
VCR 2/S2 VCR 1/S1 VCR 2 OUT V6 CABLE/V4 VCR 2/V2 MAIN OUT
COMPOSITE VIDEO
INPUT
VCR 1 OUT TV/V5 LD/V3 VCR/V1
TECH
12
S4 DVD/
S3
OPTICAL
TAPE
OUT
Comms
Analogue
inputs
PC
Analogue tape
outputs
Composite
video inputs
Trigger
outputs
Optical
inputs
Digital
inputs
Analogue
output
Power input
and fuse
Digital
outputs
Optical
output
S-video
outputs
Composite
video outputs
S-video
inputs

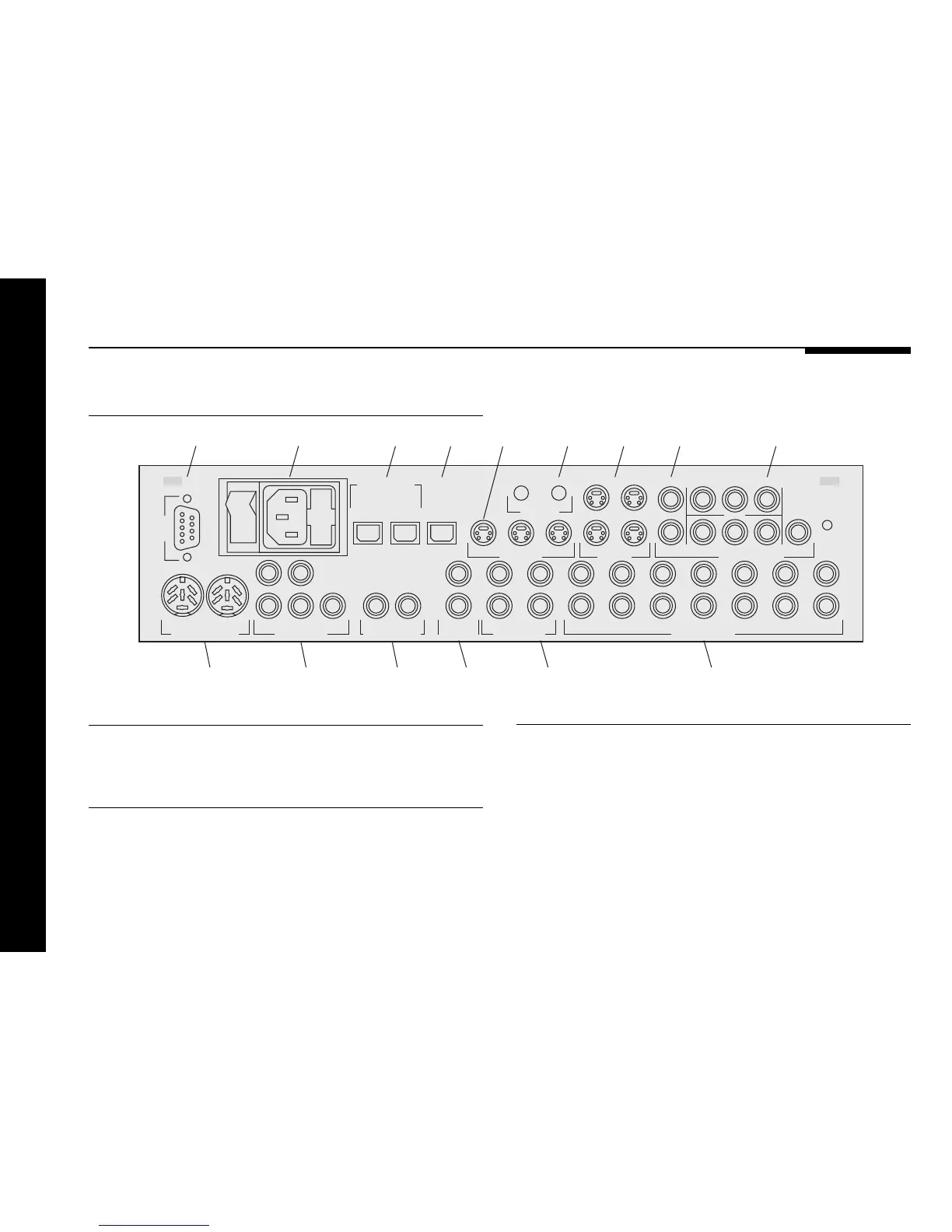

Connecting the multimedia controller
Rear panel
Digital audio inputs
The following table gives details of the digital audio inputs:
Use this input To connect to this
CD/D1, TAPE2/D2, A digital source, such as a CD player,
CDR/D3, DVD/D4, D5 DVD player, digital tape recorder, or
digital television tuner.
Use this input To connect to this
LD/O1, O2 A digital-optical source, such as a
LaserDisc player, the 519
Demodulator, or a CD player with no
digital-cable output.
