Merits P322 - Shroud Removal

Shroud Removal

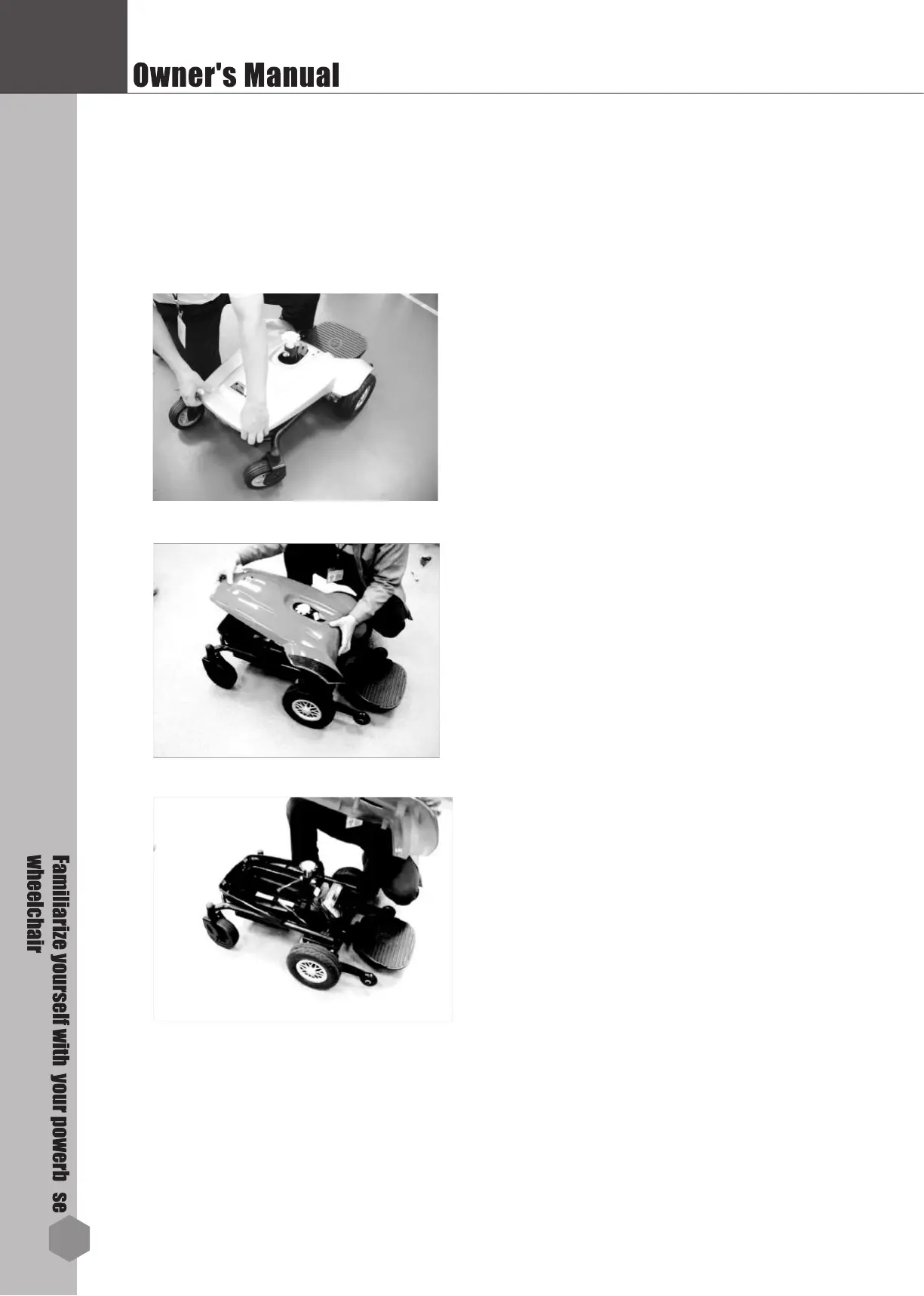

1. Use two hands to hold the rear end of
the shroud. Slightly pull up the rear end
of the shroud. This will release the rear
hooks from the bracket at the battery
tray.(Fig D1)
2. Holding it the same pull the shroud
up, this will release the the front hooks
from the bracket at the front frame.
3. After both hooks are released from the
front frame and rear battery tray, it can
be removed from the base unit.
18
(Fig D2)
Fig D1
(Fig D3)
Fig D2
Fig D3
