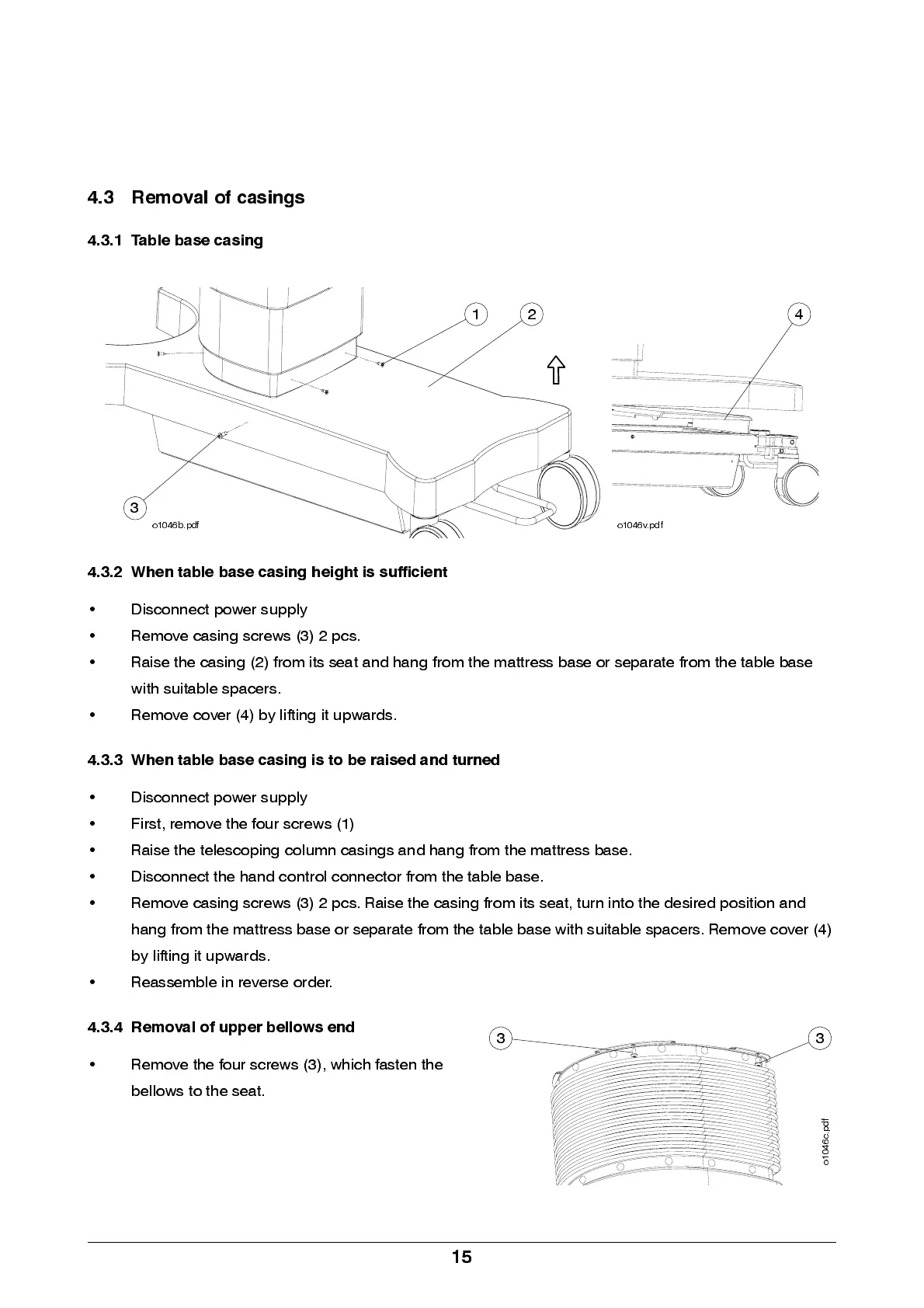

4.3 Removal of casings
4.3.1 Table base casing
4.3.2 When table base casing height is sufficient
• Disconnect power supply
• Remove casing screws (3) 2 pcs.
• Raise the casing (2) fro m its seat and hang from the mattress base or separate from the table base
with suitable spacers.
• Remove cover (4) by lifting it upwards.
4.3.3 When table base casing is to be raised and turned
• Disconnect power supply
• Firs t, rem o ve th e fou r screws (1)
• Raise the telescoping column casings and hang from the mattress base.
• Disconnect the hand control connector from the table base.
• Remove casing screws (3) 2 pcs. Raise the casing from its seat, turn into the desired position and
hang from th e mattress bas e or sepa rate from the table bas e with suitable spacers . Remove cover (4)
by lifting it upwards.
• Reassemble in reverse order.
4.3.4 Removal of upper bellows end
• Remove the four screws (3), which fasten the
bello ws to the s eat.
