Merlin MT50EVO - Tools Required; Hardware Provided; Completed Installation

4
1
2
3
4
5
7
8
9
10
11
6
12
13
6
(1) Header bracket
(2) Chain
(3) Rail
(4) Trolley
(5) Rail connecting piece
(6) Rail bracket
(7) Hanging bracket
(8) Power cord
(9) Opener
(10) Manual release rope & handle
(11) Straight door arm
(12) Curved door arm
(13) Door bracket

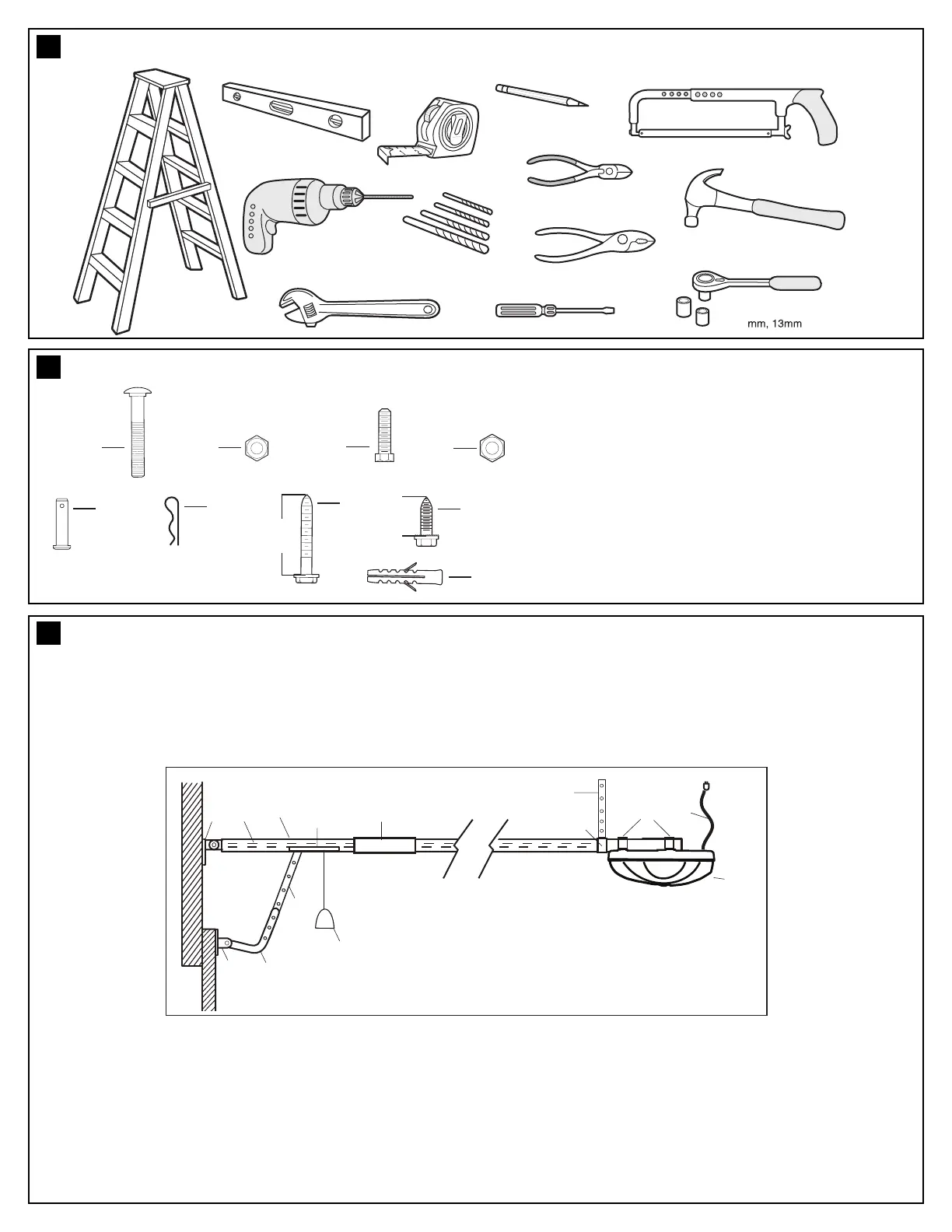

As you proceed with the assembly, installation and adjustment procedures in this manual, you may find it helpful to
refer back to this illustration of a completed installation.
COMPLETED INSTALLATION
9 (4x)
8 (8x)
7 (4x)
6 (1x)
5 (1x)
1 (1x)
2 (1x)
3 (4x)
4 (4x)
20 mm
50 mm
HARDWARE PROVIDED
Drill Bits
10
TOOLS REQUIRED
4
5
6
(1) Truss head screw 6 mm x 80 mm
(2) Lock nut M6
(3) Hexagonal head screw
(4) Nut M6
(5) Clevis Pin
(6) R clip
(7) Screw ST6 x 50 mm
(8) Screw ST6,3 x 18 mm
(9) Wallplug
