11
Ring
Fastener
Door
Bracket
Clevis Pin
Curved
Door Arm
Straight
Door Arm
Clevis Pin
Outer Trolley
Lock
Washers
Nuts
Door Bracket
Bolts
Emergency
Release
Handle
Lock
Washers
Nuts
Bolts
CutThis E nd
200mm
6
4
5
7
3

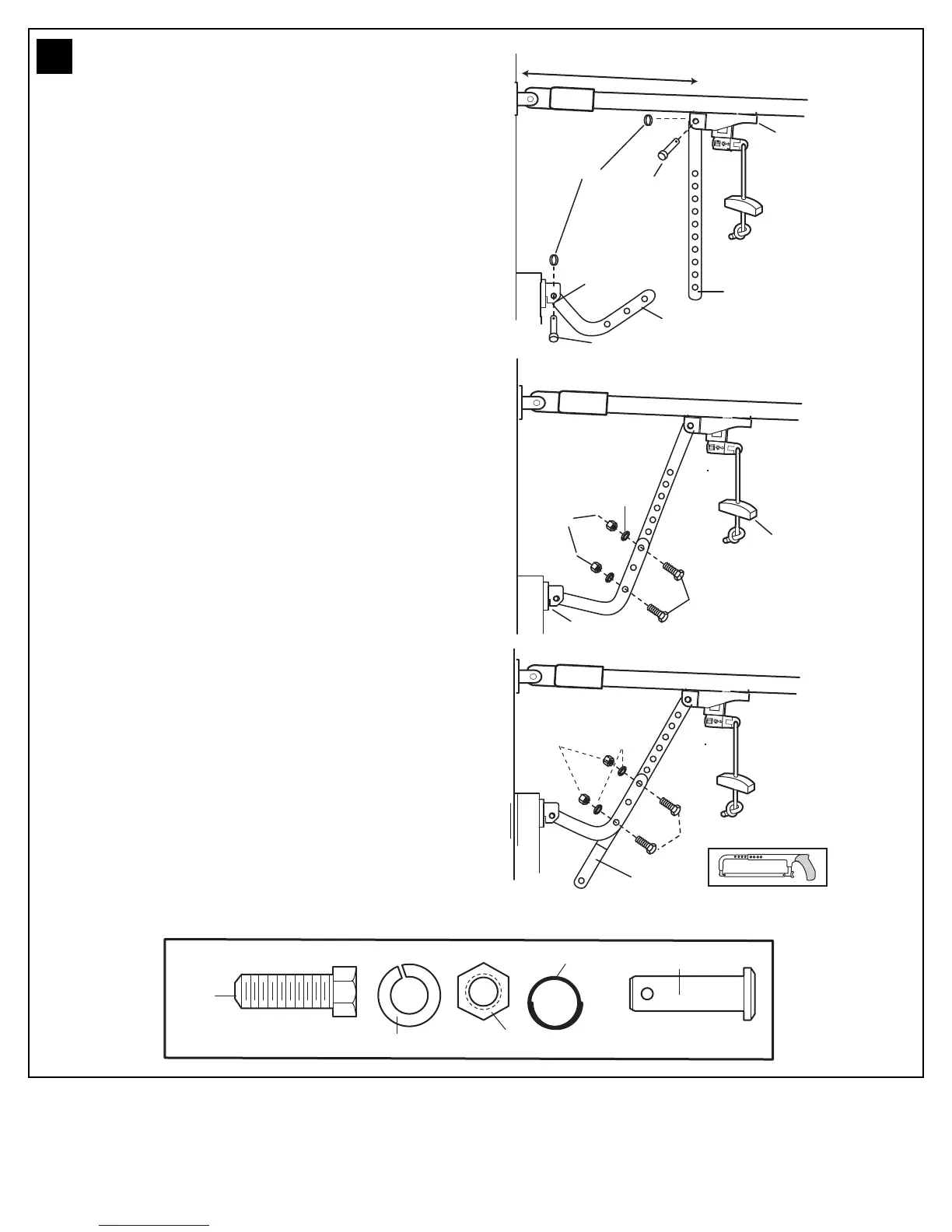

Make sure garage door is fully closed. Pull the
emergency release handle to disengage the trolley.
Slide the trolley assembly back 200mm from the idler
pulley.
Figure 1.
• Fasten straight door arm section to trolley
assembly using the hardware provided with
your opener.
Figure 2.
• Bring arm section together. Find two pairs
of holes that line up and join sections.
Select holes as far apart as possible to
increase door arm rigidity.
Figure 3.
• If holes in curved arm are above holes in
the straight arm, disconnect straight arm
and cut approximately 150mm from the
solid end. Re-connect to trolley with end cut
end down as illustrated.
• Bring arm sections together.
• Find two pairs of holes that line up and join
with bolts, washers and nuts.
CONNECT DOOR ARM SECTIONAL DOORS
21
